8
4

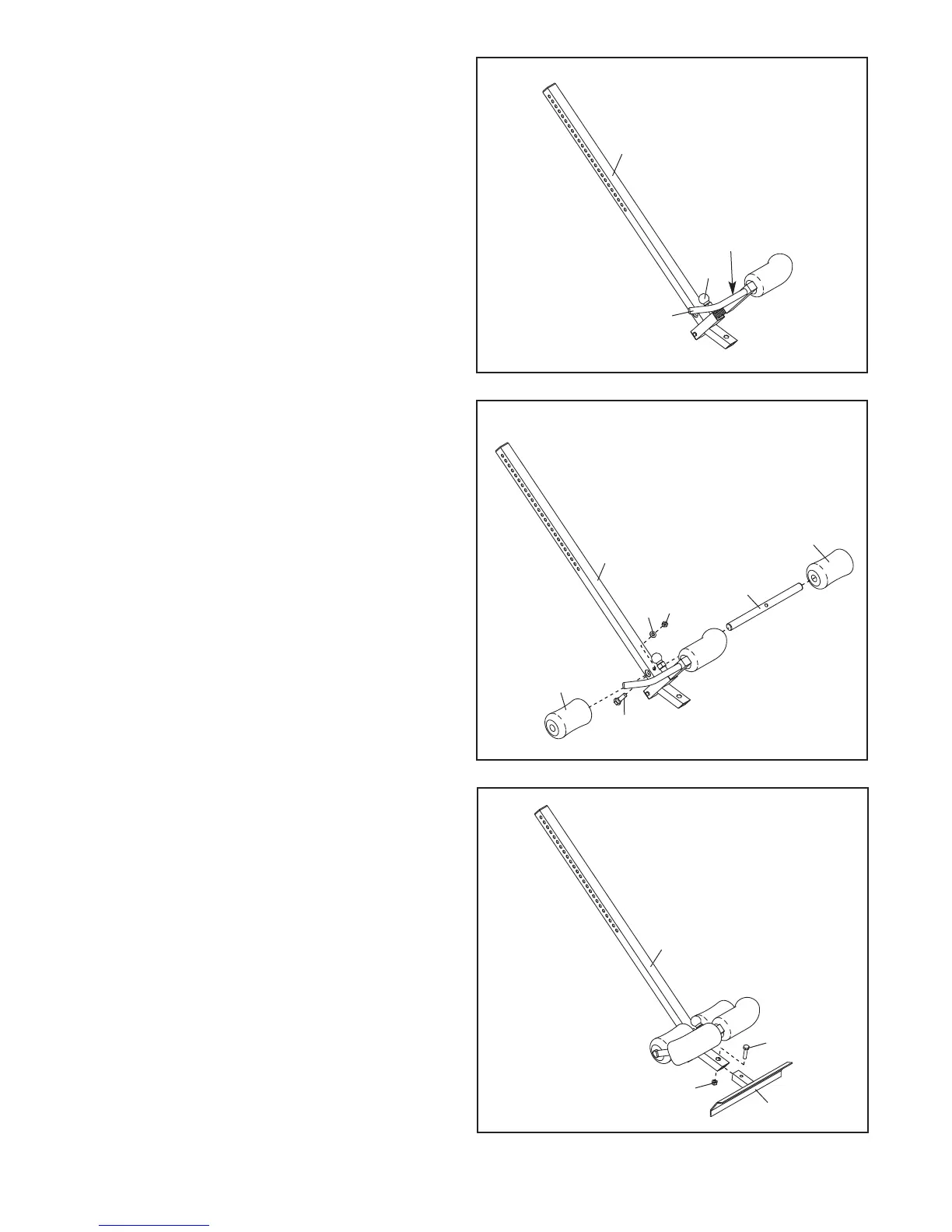

. Note: For clarity, one foam pad is shown
removed in the following two steps.
Pull the Short Knob (26) outward as far as pos-
sible.
P
ull the Ankle Lock (16) out of the Adjustment
Leg (3), rotate it ninety degrees, and reinsert it
into the Adjustment Leg as shown.
Then, engage the Short Knob (26) into an
adjustment hole in the Ankle Lock (16).
5. Insert the Pad Tube (13) through the hole in the
Adjustment Leg (3).
Attach the Pad Tube (13) with an M8 x 50mm
Bolt (37), an M8 Washer (34), and an M8 Nut
(40).
Then, slide a Round Foam Pad (14) onto each
end of the Pad Tube (13).
4
3
26
A
djustment
Hole
16
5
13
37
34
40
14
14
3
6. Orient the Foot Plate (4) as shown.
Insert the Foot Plate (4) into the end of the
Adjustment Leg (3).
Attach the Foot Plate (4) with an M8 x 40mm
Bolt (48) and an M8 Nut (40).
48
40
3
4
6
To Next Page
