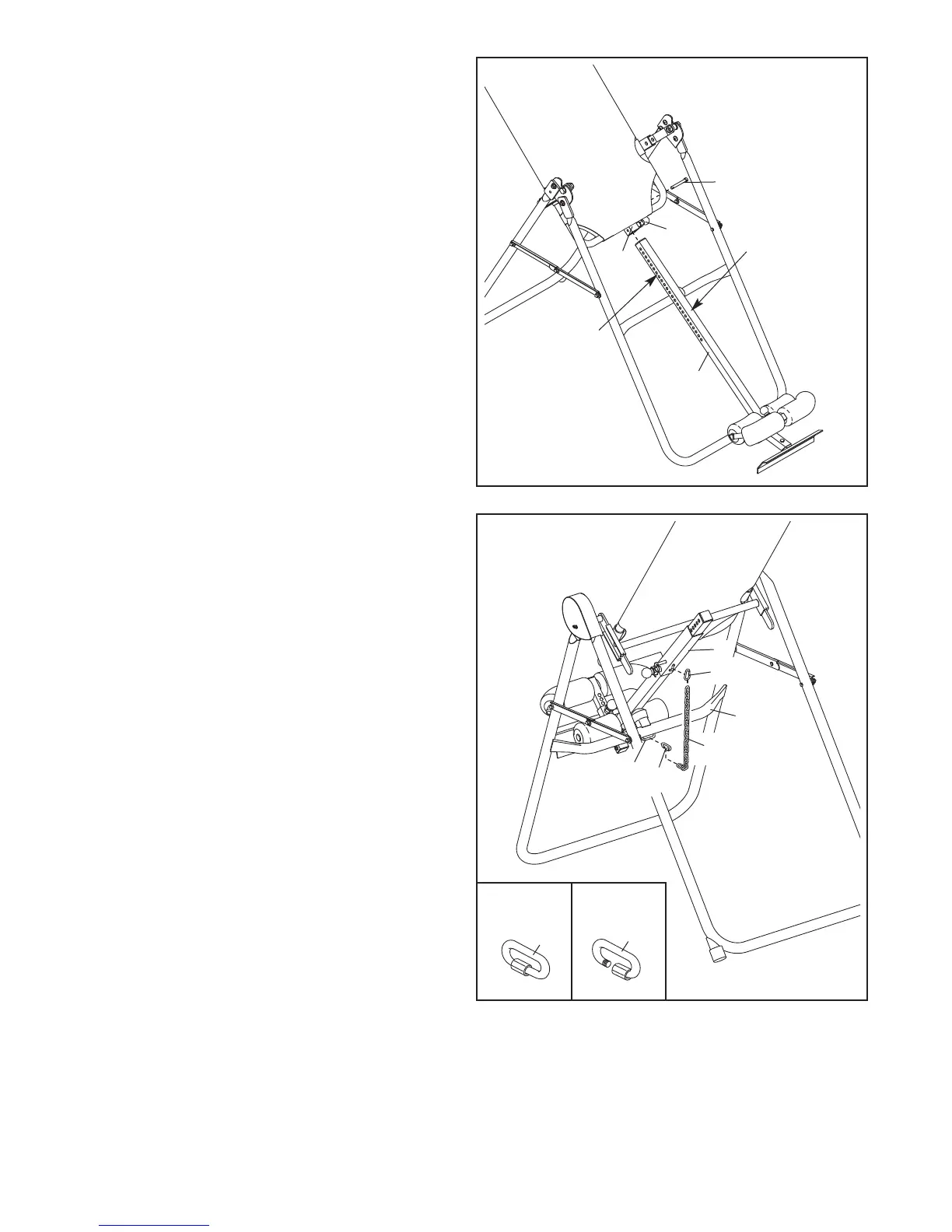

7. Remove the Pin (30) from the Backrest Frame
(1).
Pull the Long Knob (27) outward as far as pos-
sible.
Insert the Adjustment Leg (3) into the Backrest
Frame (1), and engage the Long Knob (27) into
an adjustment hole in the Adjustment Leg.
Then, insert the Pin (30) into the Backrest
Frame (1) and the Adjustment Leg (3).
Note: The Adjustment Leg (3) should be set
at a height measurement that is one or two
inches greater than the height of the person
using the inversion table.
3
0
27
1
3
Adjustment
Holes
Height
Measurement
5
8. See the inset drawings. Turn the nut on the
Quick Link (41) and open the Quick Link.
Attach one end of the Chain (17) to the bracket
on the Front Frame (5) with the Quick Link (41).
Turn the quick link nut and close the Quick Link
(41).
Attach the other end of the Chain (17) to the
hook on the Backrest Frame (1) with the Clip
(32).
Make sure that the Quick Link (41) is
attached to the Front Frame (5) and that the
Clip (32) is attached to the Backrest Frame
(1).
17
32
1
8
7
41
Bracket
Closed
Open
41
41
