7

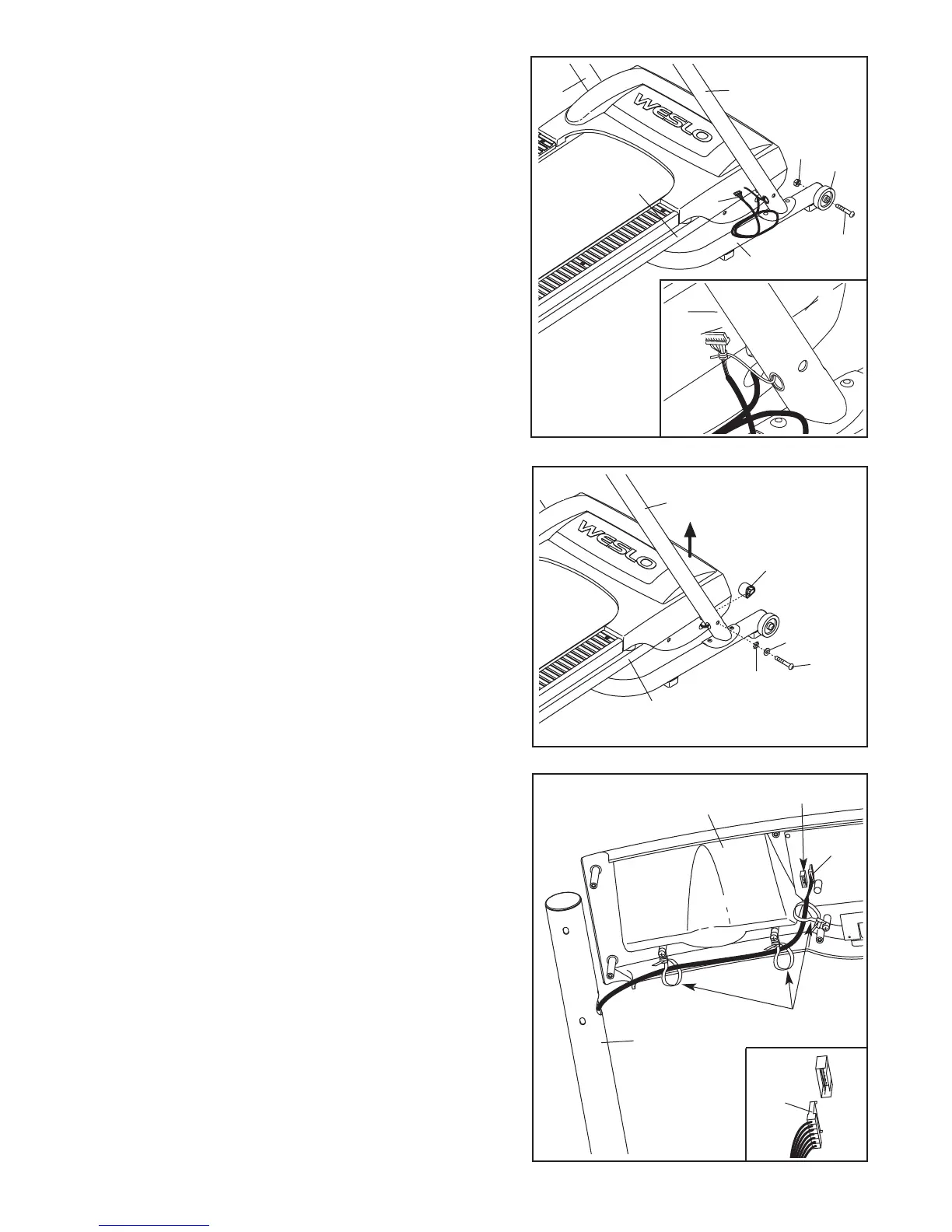

5. Hold the Console (1) near the Right Handrail (6). Touch
the Right Handrail to discharge any static.
Untie the wire from the end of the Wire Harness (22).
Insert the end of the Wire Harness through the three
looped plastic ties. Next, press the end of the Wire
Harness into the connector on the back of the Console
(1) in the location shown. The end of the Wire Harness
should slide easily into the connector and snap into
place. If it does not, turn the end of the Wire Harness and
then insert it. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Plastic
Ties
Connector
1
6
22
4. Have a second person lift and hold the front end of the
Frame (55). Hold a Frame Spacer (13) between the Right
Handrail (6) and the Frame. Attach the Right Handrail to
the Frame with a Frame Bolt (10), a Handrail Washer
(30), and a Handrail Star Washer (60).
Repeat this step on the left side of the treadmill.
13
55
60
10
30
6
5
3. With the help of a second person, raise the Handrails
(6, 7) so the Base (71) is flat on the floor as shown.
A
ttach the Wheels (15) to the outer sides of the Base
(71) with two Wheel Bolts (14) and two Wheel Nuts (88)
a
s shown. Do not overtighten the Wheel Nuts; the
Wheels should turn freely.
Position the front of the treadmill Frame (55) between the
Handrails (6, 7) as shown. Next, locate the long wire in-
side of the lower end of the Right Handrail (see the inset
drawing). Tie the end of the wire securely to the end of
the Wire Harness (22). Then, pull the opposite end of the
wire until the end of the Wire Harness is extending from
the upper end of the Right Handrail.
4
22
22
71
88
15
14
6
55
3
22
6
Wire
7
