Westermo TR-36 - S2 DIP-Switch: RS-422;485, Leased Line, PSTN Backup, Remote Config

16
6614-2202
S2 DIP-switch

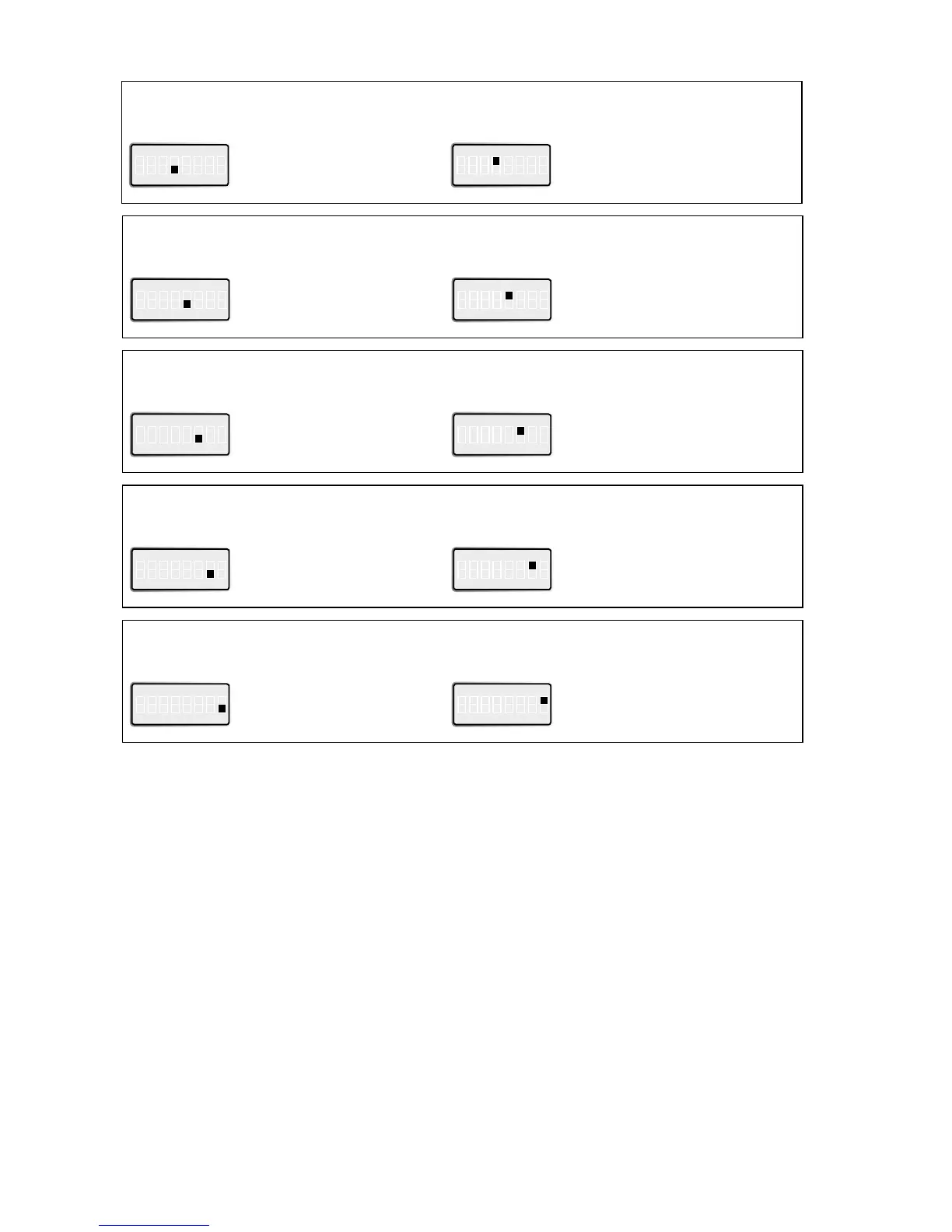

Leased line 2/4 wire selection
ON
1 2 3 4 5 6 7 8
Leased line 2-wire
ON
1 2 3 4 5 6 7 8
Leased line 4-wire
S2 DIP-switch
Selection PSTN backup of Leased line
ON
1 2 3 4 5 6 7 8
Backup of leased line disabled
ON
1 2 3 4 5 6 7 8
Backup of leased line enabled
S2 DIP-switch
Selection of answering/calling mode for PSTN backed up Leased Line
ON
1 2 3 4 5 6 7 8
Answering
ON
1 2 3 4 5 6 7 8
Calling
S2 DIP-switch
Remote configuration control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Remote configuration disabled
S2 DIP-switch
RS-422/485
ON
1 2 3 4 5 6 7 8
RS-422/485, 2-wire
ON
1 2 3 4 5 6 7 8
RS-422/485, 4-wire
