Westermo TR-36 - S4 DIP-Switch: Modem Defaults, Control, Compression, Retrain, Line Mode

18
6614-2202

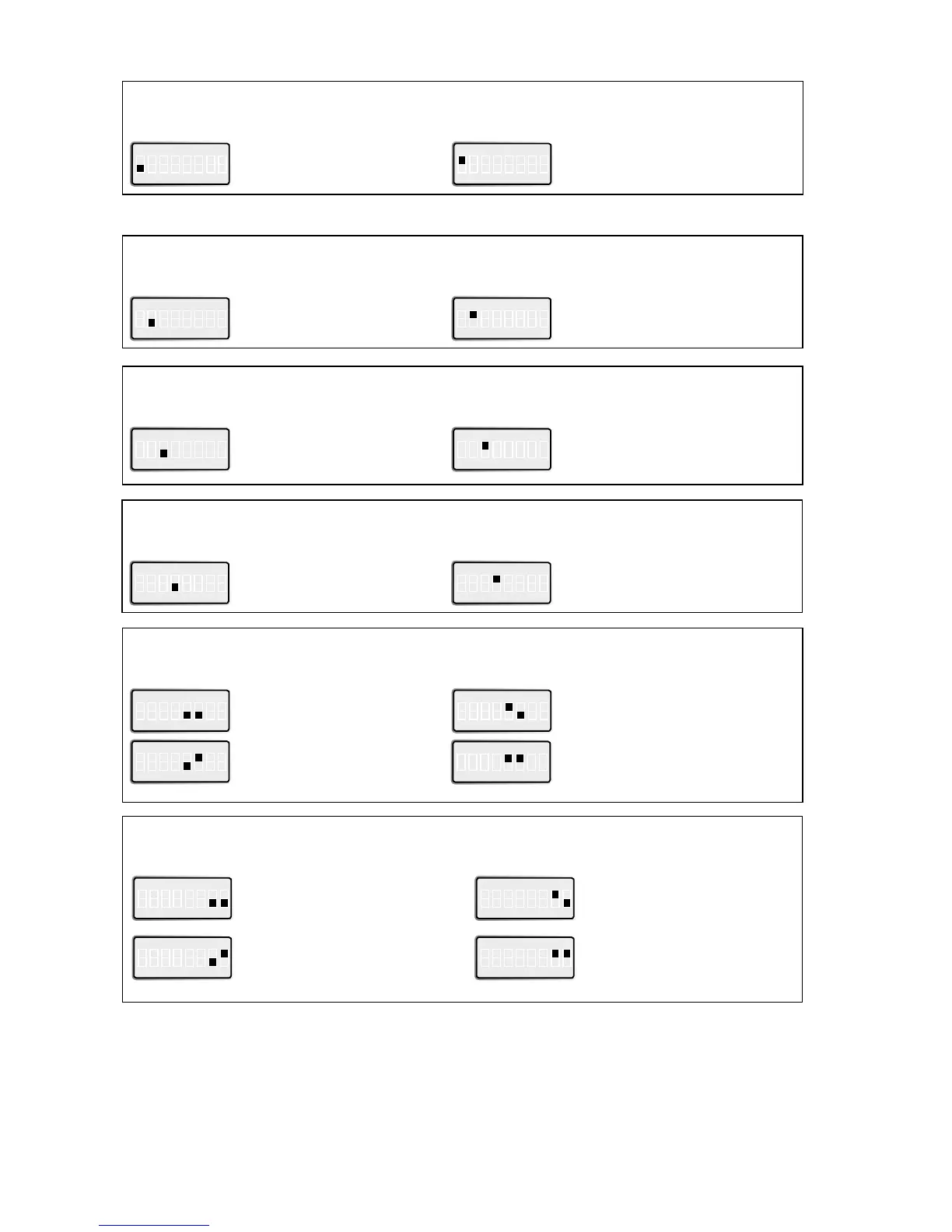

S4 DIP-switch
Auto retrain control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Auto retrain disabled (AT%E0)
S4 DIP-switch
Data compression control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Data compression disabled
(AT%C0)
S4 DIP-switch
DCD, DTR and DSR control
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
DCD and DSR always on,
DTR ignored (AT&C0&D0&S0)
S4 DIP-switch
Set modem to factory default
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Restore factory default setting*
Don’t leave S4:1 in ON position if not intended to restore factory setting at every power on.
ON
1 2 3 4 5 6 7 8
Use stored values
ON
1 2 3 4 5 6 7 8
Reliable mode enable (AT\N2)
ON
1 2 3 4 5 6 7 8
Buffer mode enabled (AT\N0)
S4 DIP-switch
Line mode setting
S4 DIP-switch
Leased Line termination
ON
1 2 3 4 5 6 7 8
Termination disabled
ON
1 2 3 4 5 6 7 8
Termination of Receiver
in 4-wire mode
ON
1 2 3 4 5 6 7 8
Termination of Transmitter / Receiver
in 2-wire mode and Transmitter in
4-wire mode
ON
1 2 3 4 5 6 7 8
Termination of both Transmitter
and Receiver in 4-wire mode
ON
1 2 3 4 5 6 7 8
Direct Mode enabled (AT\N1)
