1IMPORTANT SAFETY INSTRUCTIONS

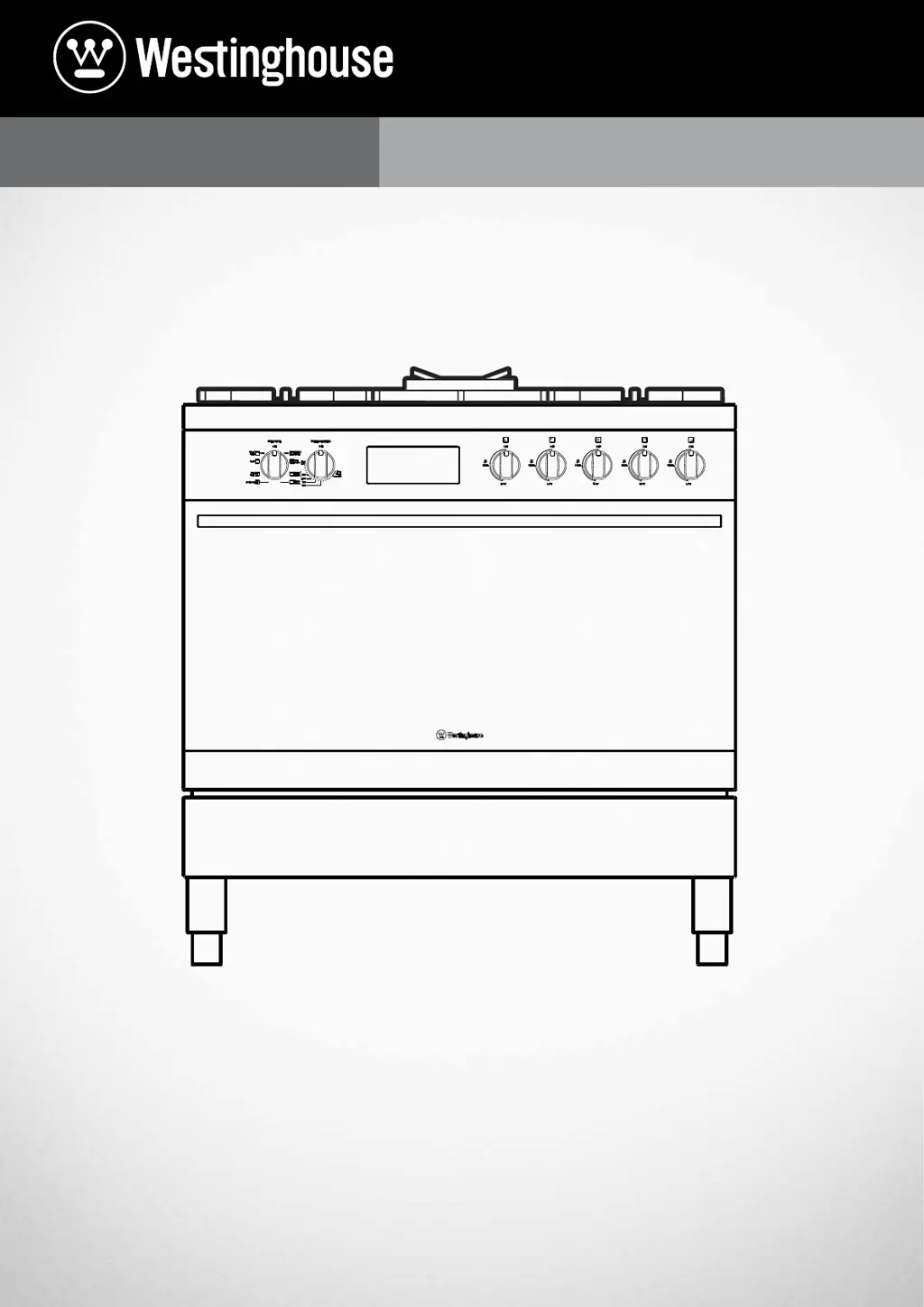

USER MANUAL
900mm COOKING APPLIANCES
WFE904SC, WFE914SC, WFEP915SC, WFE946SC
WVE914SB, WVE916SB, WVEP916SB

Table of Contents

Questions and Answers

  • C
    Courtney PearsonAug 18, 2025
    Why is my Westinghouse Cookers oven or grill not working?
    • M
      Maria PorterAug 18, 2025
      If your Westinghouse Cookers oven or grill isn't working, there are several potential causes. First, ensure that the power is switched on and that the household fuse hasn't blown, and the circuit breaker hasn't tripped. Check the control settings and reset them if necessary. Make sure the clock is set, or if applicable, deactivate DEMO Mode or Child Lock. Remove any foil or trays from the bottom of the oven, and ensure the timer is set to manual mode.
  • V
    vgonzalesAug 20, 2025
    What to do if the flames aren't staying on when knob released on Westinghouse WVE916SB?
    • C
      Cameron KingAug 20, 2025
      If the flames on your Westinghouse Cookers aren't staying on when you release the knob, make sure you're holding the knob down long enough in the ‘High’ position for the flame safeguard to engage (about 5 seconds). Also, ensure the knob is set between the ‘High’ and ‘Low’ positions.
  • M
    Michael SanchezAug 23, 2025
    Why is my Westinghouse WVE916SB Cookers oven not heating enough?
    • R
      Robyn HuntAug 23, 2025
      If your Westinghouse Cookers oven isn't heating enough, it might be due to using too much water when cooking; try reducing the amount of water. Also, check if the oven light is working and replace or tighten the lamp if necessary. Ensure that the flame ports are not blocked or wet; clean or dry them if needed. Lastly, dry or clean the ignition spark plugs if they are wet or dirty.
  • M
    mmillerAug 26, 2025
    How to remove stains that appear under the ceramic glass on Westinghouse WVE916SB?
    • M
      Melissa SinghAug 26, 2025
      If stains appear to be under the ceramic glass of your Westinghouse Cookers, it's likely that these marks are on the surface. Clean them off using a razor blade scraper and a ceramic glass cleaner.
  • L
    Laura RossAug 27, 2025
    What to do if cakes fallen in the centre in Westinghouse WVE916SB?
    • P
      Paul LeeAug 27, 2025
      If your cakes are falling in the center while baking in your Westinghouse Cookers, consider the following: raise the oven temperature, increase the cooking time, double-check the recipe, and avoid opening the oven door until the last quarter of the cooking time.
  • D
    Diana RoachAug 30, 2025
    How to fix uneven cooking in Westinghouse Cookers?
    • C
      Charles MartinezAug 30, 2025
      To correct uneven cooking in your Westinghouse Cookers, try these steps: * Select a shelf that positions the food in the oven's center. * Experiment with different trays or dishes. * Ensure trays are centered. * Rotate the food during cooking. * Remove the grill dish from the oven when using bake modes.
  • B
    Brianna Gomez DDSSep 1, 2025
    What to do if baked products are pale, flat and undercooked in Westinghouse WVE916SB?
    • B
      bridget68Sep 1, 2025
      If your baked goods are pale, flat, and undercooked when using your Westinghouse Cookers, you might want to raise the oven temperature, cook one shelf higher, increase the cooking time, and ensure you are using the correct size tin.
  • S
    Stephanie MitchellSep 3, 2025
    How to prevent cakes from having a cracked, thick crust in Westinghouse Cookers?
    • G
      gkingSep 3, 2025
      To prevent cakes from developing a cracked, thick crust in your Westinghouse Cookers, consider the following: lower the oven temperature, cook one shelf lower, mix ingredients just long enough to combine them, check the pan size and use the recommended size, and switch to shiny pans.
  • K
    Kevin BrooksSep 6, 2025
    What to do if juices running out of meat in Westinghouse Cookers?
    • T
      Timothy JohnsonSep 6, 2025
      To prevent juices from running out of meat when cooking with Westinghouse Cookers, avoid piercing the meat with a fork; instead, use tongs to turn it.
  • R
    ronniesmithSep 8, 2025
    What to do if grilled meats overcooked on outside and raw in the centre in Westinghouse Cookers?
    • S
      Stacey AlvarezSep 8, 2025
      If your grilled meats are overcooked on the outside but raw in the center when using your Westinghouse Cookers, try grilling at a lower insert position.

Summary

Important Safety Instructions

General Safety Warnings

Appliance Safety Specifics

Oven and Cooktop Safety Precautions

Child Safety Guidelines

Initial Appliance Operation

Preparing for First Use and Time Setting

Installing Oven Accessories

Installing Burners and Trivets

Ceramic Cooktop Controls

Using Your Ceramic Cooktop

Ceramic Cooktop Safety Features

Child Safety Device Operation

Ceramic Cooktop Timer Functions

Cooktop Timer Operations

Using Your Oven

Oven Function Explanations

Oven Operation and Time Setting

Oven Timer and Clock Operations

Oven Timing Functions

Oven Control Operations

Safety Cut-out and Demo Mode

Oven Settings and Controls

Oven Safety and Modes

Child Lock and Beep on Touch Features

Dealing with Cooking Problems

Common Baking and Roasting Issues

Cleaning Your Oven

Hob and Oven Surface Cleaning

Cleaning Oven Accessories

Oven Trays, Shelves, and Door Cleaning

Oven Accessories Care

Oven Door Glass and Storage Compartment

Cleaning Your Pyrolytic Oven

Pyrolytic Cleaning Process and Preparation

Troubleshooting Oven;Grill Faults

Oven;Grill Not Working or Heating Issues

Solutions for oven/grill not working or insufficient heating.

Troubleshooting Cooktop and Seal Issues

Burner Flame and Heat Problems

Fixes for burner flame problems and low heat cooking.

Installation of the Appliance

Cabinet and Gas Clearance Requirements

Specifications for kitchen cabinets and gas model clearances.

Freestanding Installation Guide

Freestanding Installation and Cabinetry

Steps and cabinetry requirements for freestanding installation.

Freestanding Installation Setup

Installing and Adjusting Feet

How to install and adjust the appliance's screw-in feet.

Freestanding Installation Adjustments

Leveling Oven and Installing Splashback

How to level the oven and fit the splashback.

Anti-Tilt Bracket Installation

Installing Anti-Tilt Brackets for Stability

Steps to install anti-tilt brackets for stability.

Securing Anti-Tilt Brackets

Fastener Warning for Bracket Installation

Warning about using appropriate fasteners for wall mounting.

Freestanding Installation Finishes

Installing the Clip-on Kick Panel

How to attach the clip-on kick panel.

Kick Panel Attachment

Securing the Kick Panel to Feet

Final steps for attaching the kick panel to the feet.

Slot-in Installation Overview

Slot-in Installation Method Description

Overview of the slot-in installation method.

Slot-in Installation Details

Anti-Tilt Brackets and Front Stops

Securing anti-tilt brackets and installing front stops for slot-in models.

Cabinet Construction for Built-in Oven

Built-in Oven Cabinet Requirements

Requirements for building cabinets for built-in ovens.

Built-in Oven Installation Types

Underbench and Vertical Installation Guide

Guidelines for installing the oven under a benchtop or in a vertical cabinet.

Wiring Requirements

Electrical Connections and Regulations

Compliance requirements for wiring connections and hard wiring.

Installing the Freestanding Cooker

Injectors, Gas Pressures, and Connection

Details on injector sizes, gas pressures, and gas supply connection.

LPG Conversion Procedure

Converting to LPG and Checking Gas Supply

Procedure for converting to LPG and checking the gas supply.

Testing Gas Cooker Operation

Gas Supply, Regulator, and Feature Tests

Westinghouse WVE916SB Specifications

General IconGeneral
Oven TypeElectric
Fuel TypeElectric
Number of Ovens1
MaterialStainless Steel
Control TypeKnob
Keep Warm FunctionYes
Delay TimerYes
Non-Stick Inner PotNo
