Assembling the divided machine (optional)
Parts which must be assembled are prepacked inside each section together with
the necessary bolts, nuts, etc.

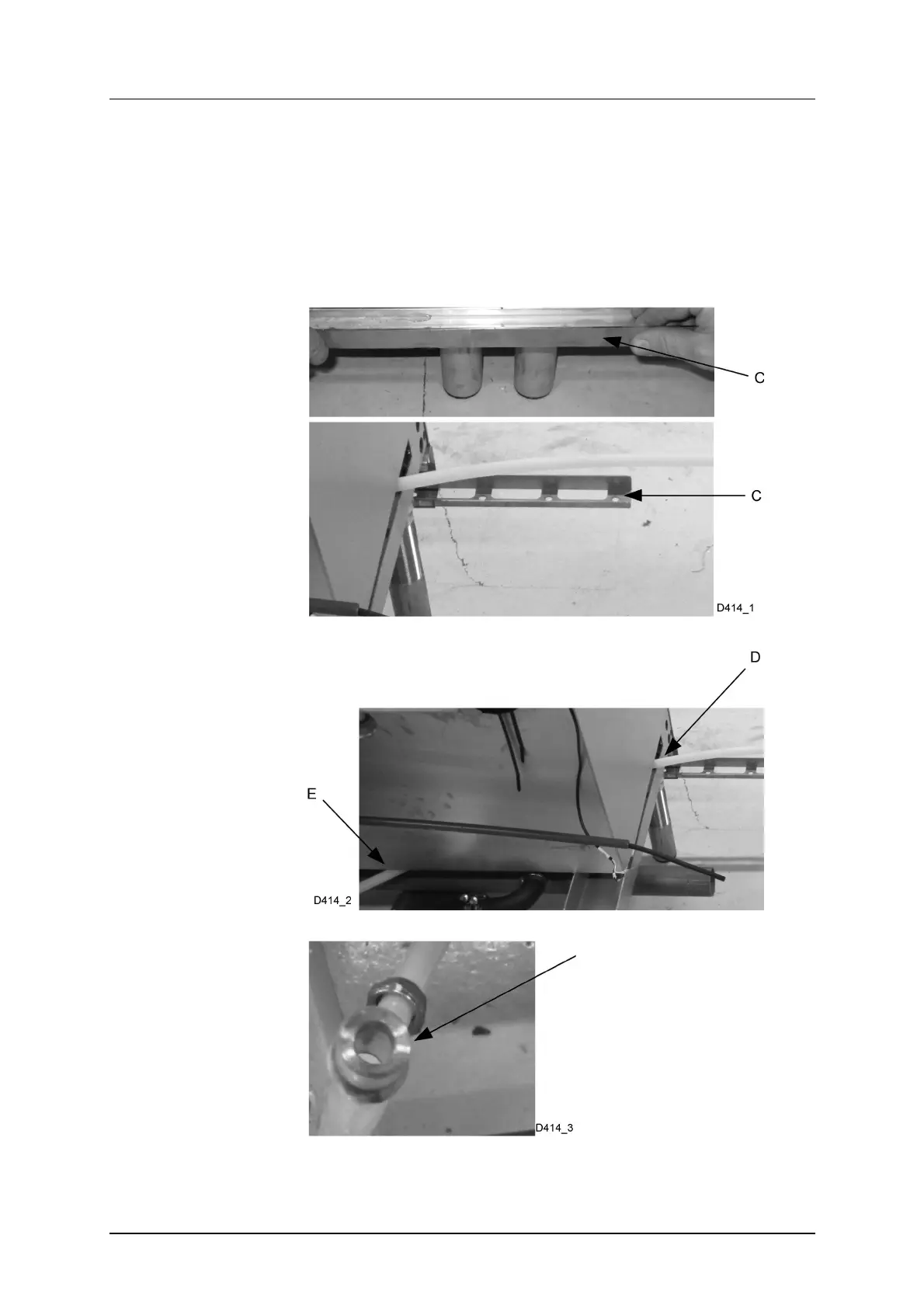

• Dismantle the lower cover plates (on the front side) beside the pre-wash
and chemical wash.
• Remove the lower rear cover plate beside the chemical wash.
• Fit the support rails (C) to the lower bars, front and rear.
• Feed through the hose at (D) and (E) on the image.
• Fit the coupling supplied to the hose.
• Feed through the electricity cables in the designated places.
