WD-151E - WD-421E Rev. 00 (202310)
Installation instructions touch
18

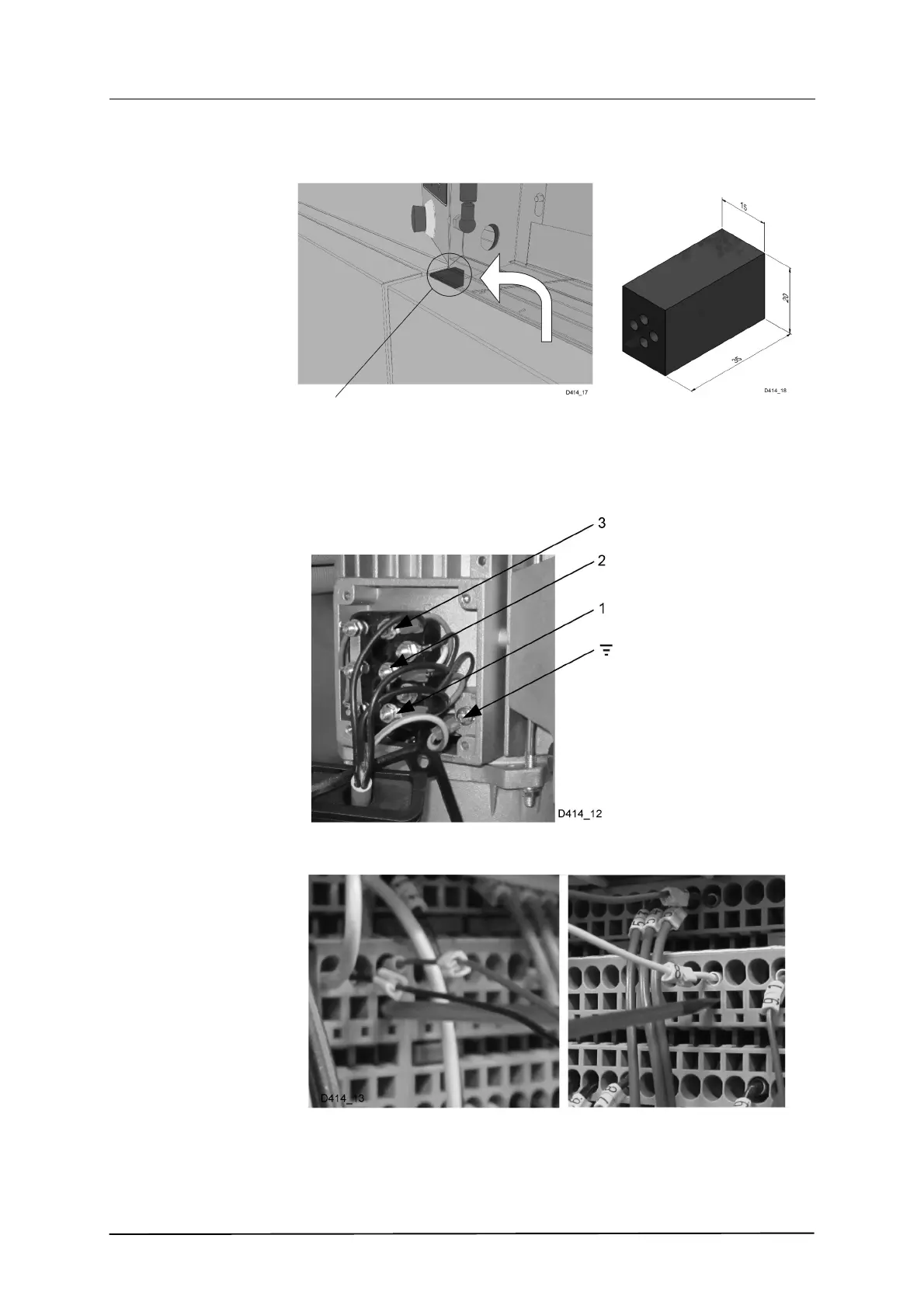

• Fitting the door seal to the electrical cabinet. Place the door seal
(WD400277.31) in the cable channel. This seals the hole for the door
switch and photocell cable.
• The wiring must be positioned and anchored in the designated places for
this.
• Check all couplings against the machine’s wiring diagram!
• Switch on the wiring for washing pump M1, the cables are labelled in ac-
cordance with the image.
• Connect the wiring for the door switches to the terminals in accordance
with the labelling.
