WD-151E - WD-421E Rev. 00 (202310)
Installation instructions touch
25

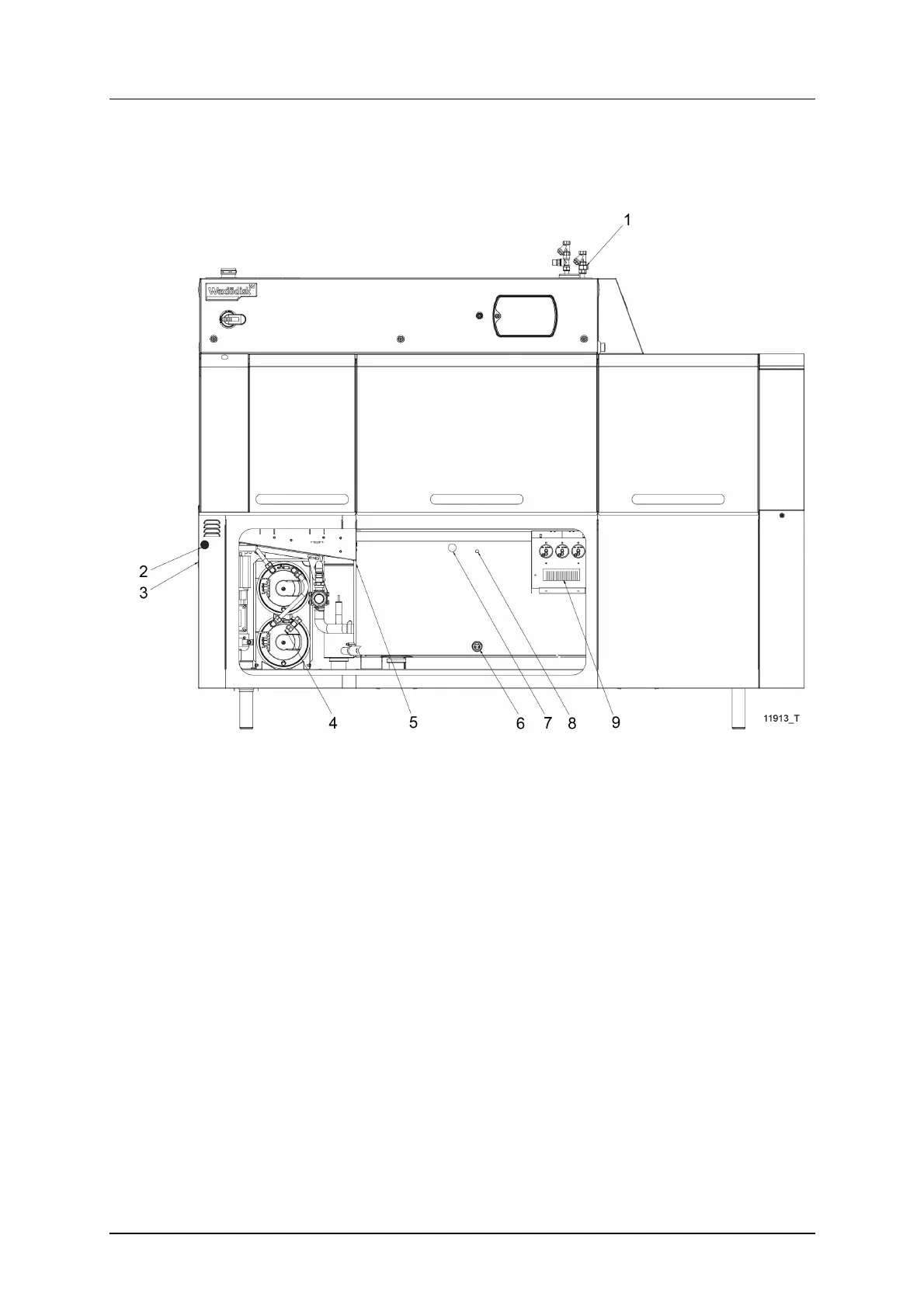

Connection of the equipment
1. Hot water outlet
2. Hole ø 25mm for hose intended for detergent in solid form.
3. Hole ø 19mm for drying agent hose.
4. Drying agent dosage outlet.
5. Plugged connection ø 18mm for connecting hose for detergent in solid form
6. Plugged hole ø 22mm for measuring cell. The measuring cell is connected
in the terminal box (10).
7. The letter “D” is affixed to the inside rear wall of the chemical wash tank and
indicates the alternative position of the detergent opening. Drill a hole from
the back of the chemical tank through the plugged hole in the cover plate.
8. Plugged connection ø 11mm for liquid detergent.
9. Terminal box with connections for detergent and drying agent.
