Wexiodisk WD-4C - Machine Positioning; Machine Connections

WD-4C Rev. 3.0 (201308)
Installation
9
3.4.1 Positioning the machine
Position the machine and check that it is horizontal using a spirit level.
Once the machine has been filled with water, check that it is level.
Adjust the height with the machine legs.

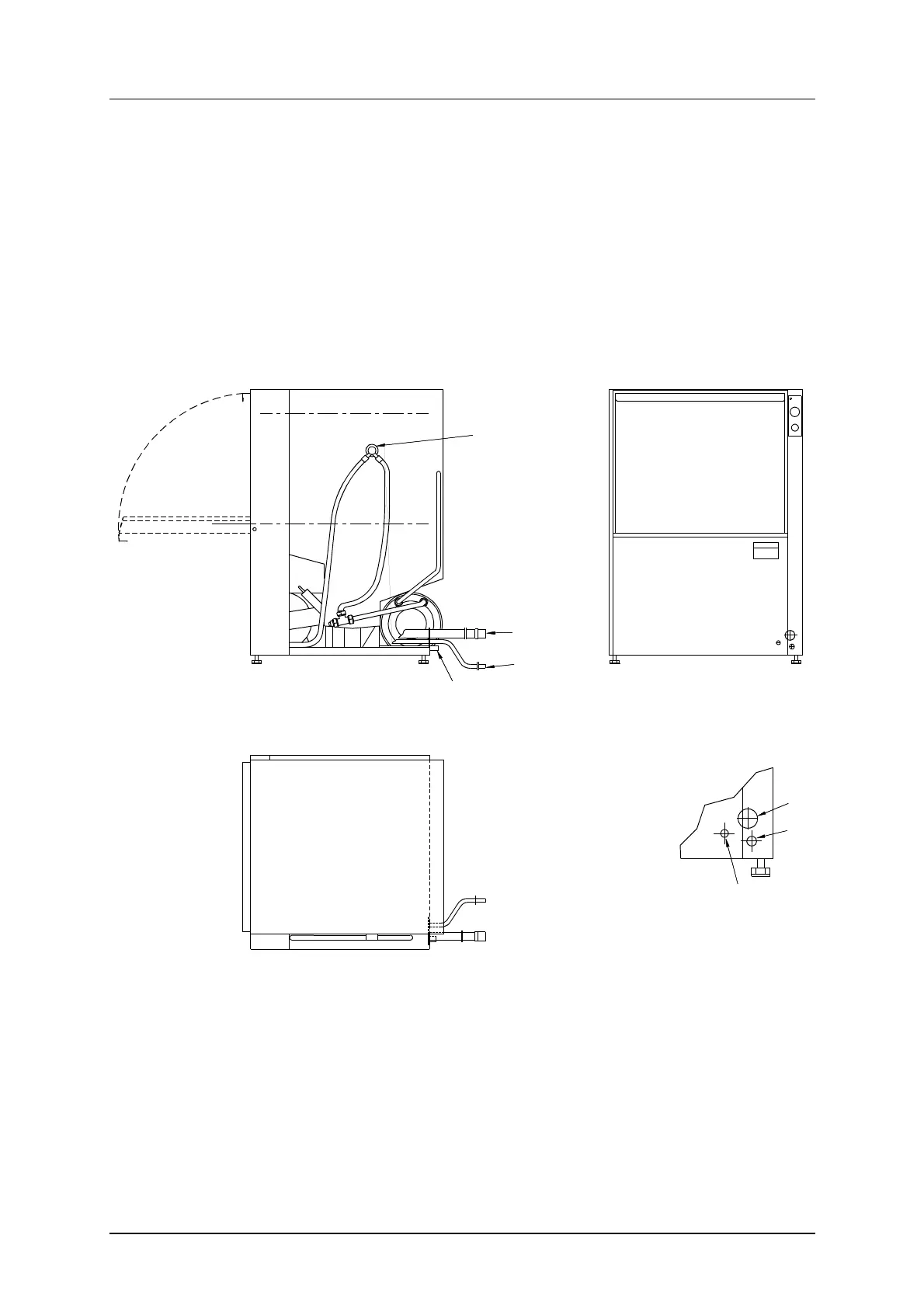

3.4.2 Connections
1. Water connection, external thread
2. Drain connection, spiral hose
3. Electrical connection
4. Non-return valve
5. Vacuum valve
39758_C_R2
4 , 5
2
3
1
WD-4C
2
3
1
