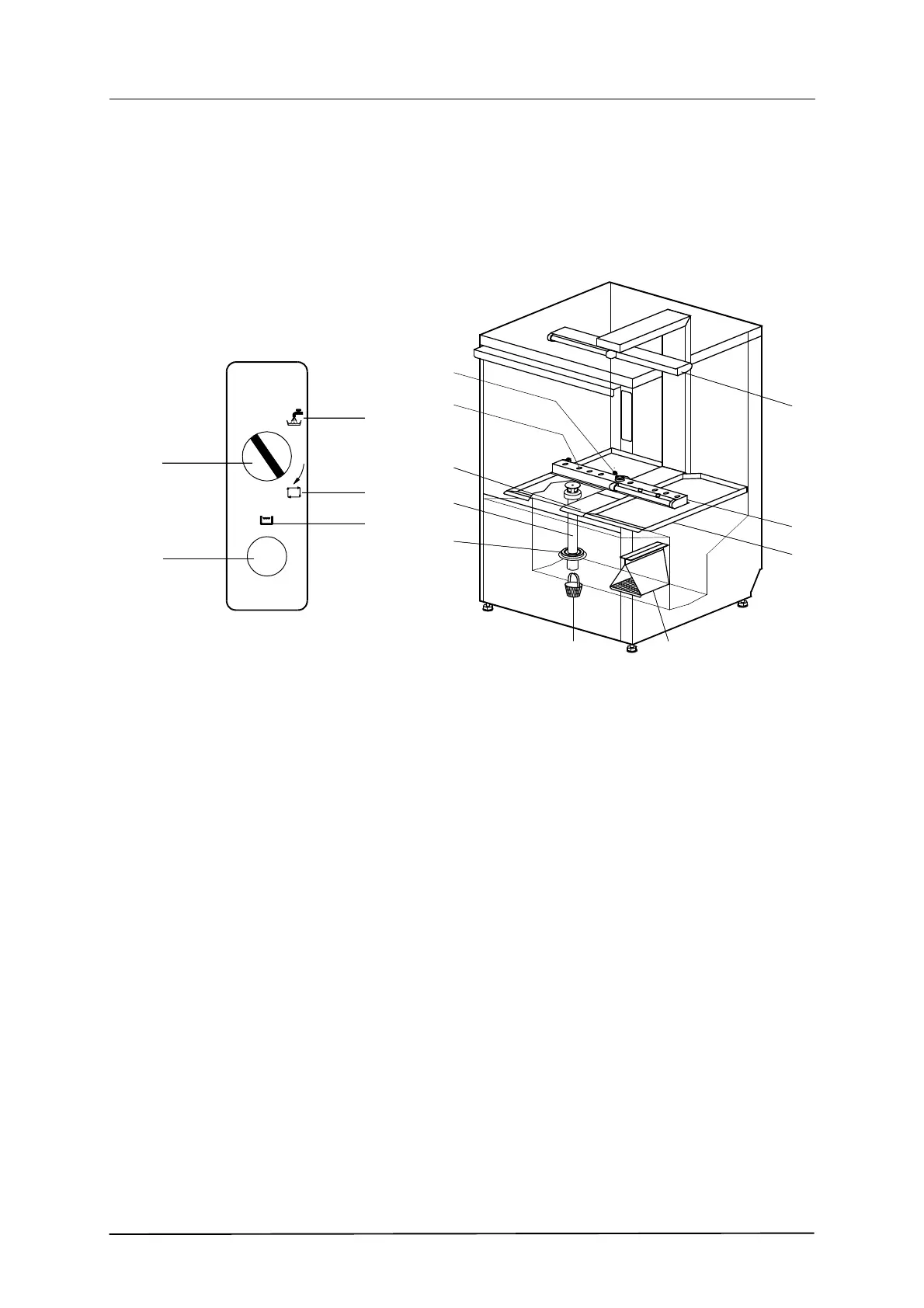

4.1 Preparations
4.1.1 The machine’s design, without emptying pump
1. Control knob. On/off and start wash programme.
2. Signal light. Light glows green when the water level is high enough and
blue when washing and rinsing in progress
3. Symbol for filling
4. Symbol for wash mode
5. Symbol for tank level
6. Washing arm
7. Tank filter
8. Pump filter
9. Drain filter
10. Rubber seal
11. Level pipe
12. Cover plate
13. Wash nozzle
14. Rinse nozzle
