2. Mounting the Control Panel

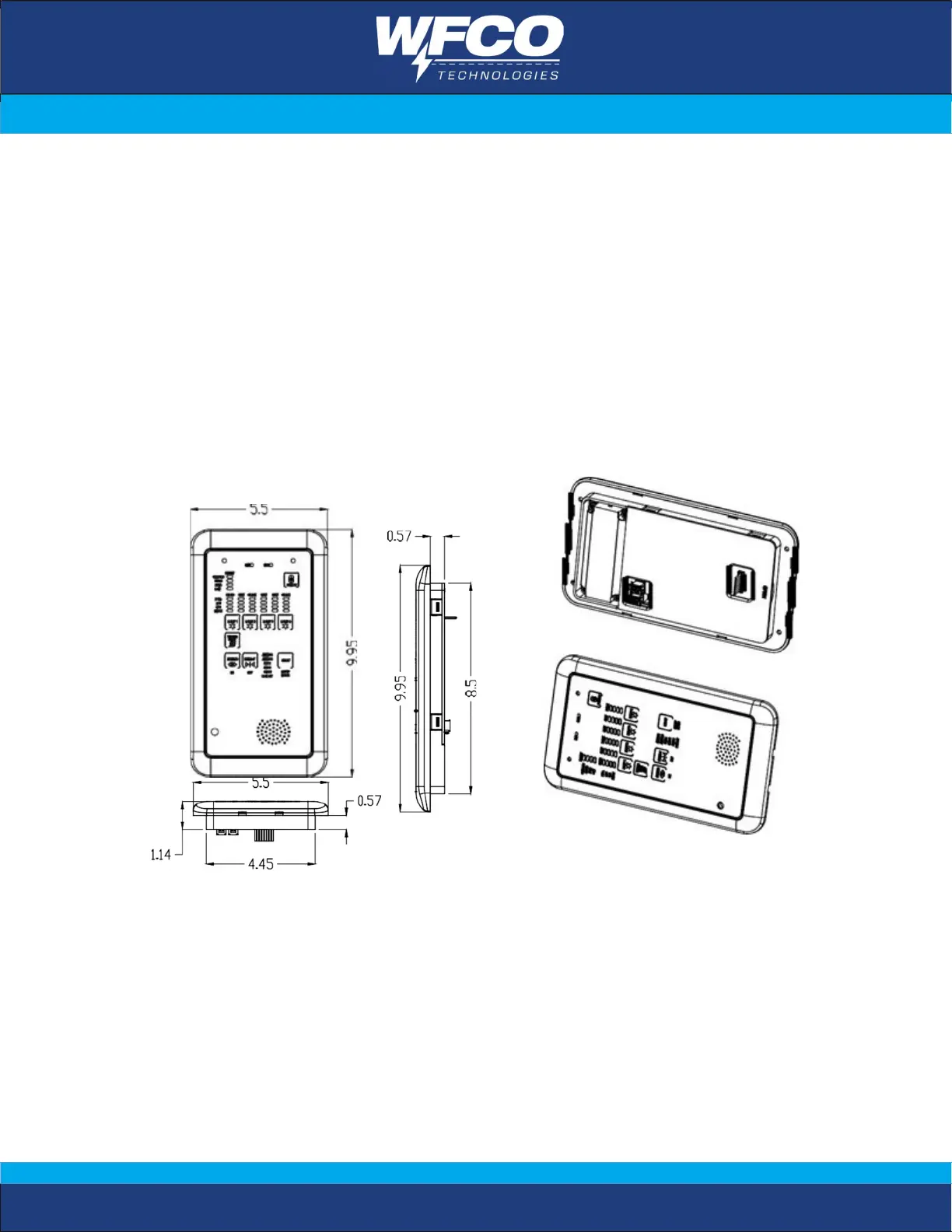

The control panel should be mounted in an easily accessible location. Recommended
wall square hole dimension is 4.5*8.6 inch for control panel cutout. The user can
choose the following length of can bus cable; the can bus cable shall be routed from
the control panel to the smart power unit.
WF-3531: 5' can bus cable
WF-3532: 10' can bus cable
WF-3533: 20' can bus cable
WF-3534: 30' can bus cable
