whaler 320 Outrage - Through-Hull Fittings

Section 2 - General Arrangement & Specifications
320 Outrage-Owner’s Manual
10
The deck drain provides self-bailing capabilities while the
boat is static in the water and no passengers on board.
This feature prevents the accumulation of water in the
cockpit. the drain must be in place when underway.
NOTICE
!
Depending on the type of boat you have, you may
have underwater fittings that need drain plugs.
Garboard drain plugs and fishbox drain plugs need
to be in place before the boat goes into the water.
Any fitting that will be underwater needs to be
plugged or the seacock needs to be closed
NOTICE
!
Through hull fittings should be checked for proper
seal annually. When the boat is in the water the un-
derwater fittings can be checked for dripping. It is
recommended that the underwater fittings be re-
moved, cleaned and resealed every other year.
NOTICE
!
If the through hull fittings need to be replaced, it is
recommended that an authorized Boston Whaler ®
dealer perform this type of repair. Through hull fit-
tings that are improperly installed can cause pre-
mature hull failure and may void the Boston
Whaler® limited warranty.
NOTICE
!
14 Livewell Drain
15 Garboard Drain
16 Active Deck Suspension System (ADSS) pan
drain, (Optional)
PORT
STARBOARD
1 Anchor Locker Drain, Port
2 Raw Water/Livewell Inlet
3 Bilge Pump Outlet
4 Fishbox Pump Outlet, Port
5 Anchor Locker Drain, Starboard
6 Sink/Deck Drain
7 Bilge Pump Outlet
8 Fishbox Pump Outlet, Forward
9 Waste Vent
10 Macerator Discharge
11 Fishbox Pumpout, Starboard
12 Deck Drains
13 Motorwell Drains

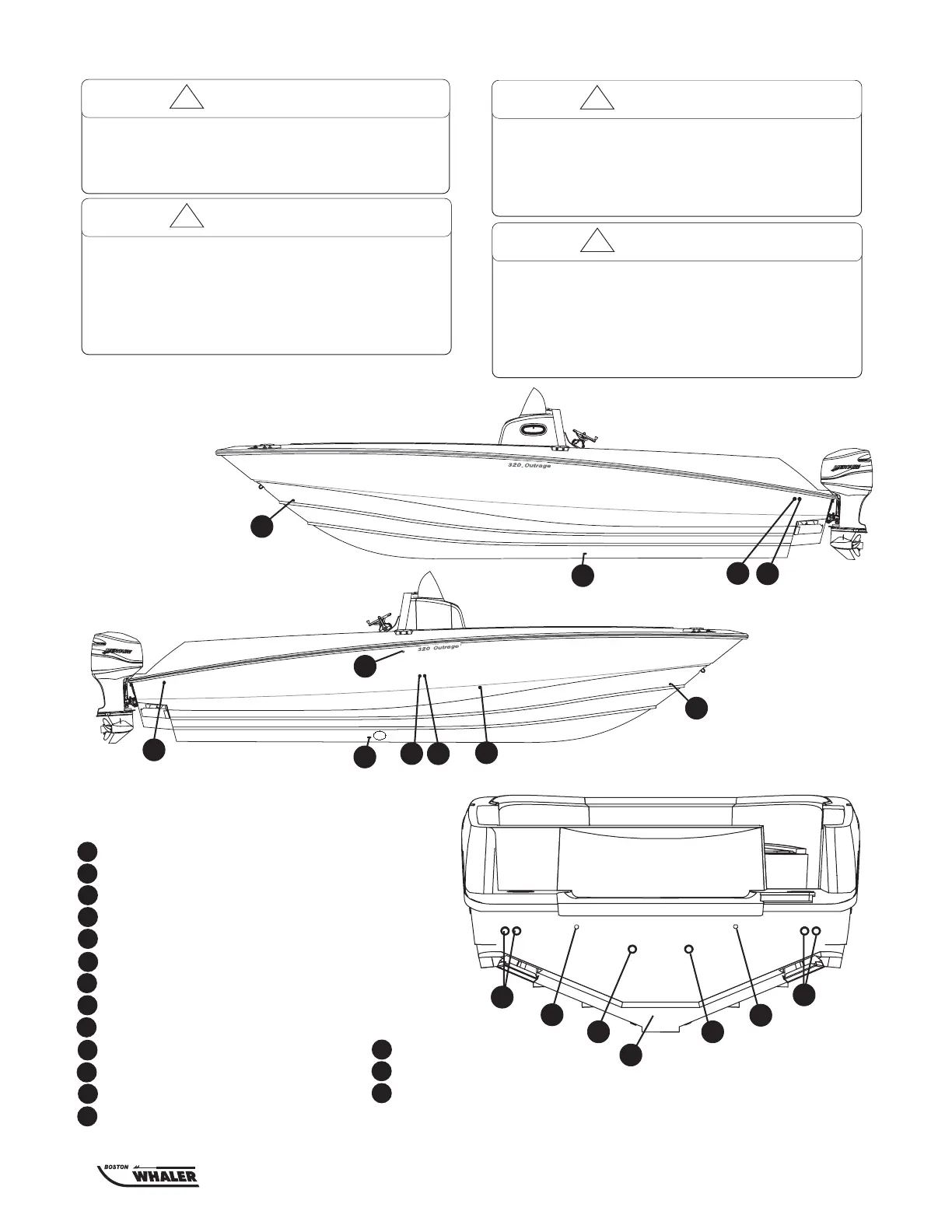

320 Outrage,Through-hull Fittings
1
3
5
4
9
AFT
2
6
7
10
11
12
8
13
14
12
13
15
16
