Section 5 - Water & Waste System
320 Outrage-Owner’s Manual
The seacock MUST be in the OPEN position. Running
the pump dry may cause damage to the unit.
NOTICE
Raw Water
The Raw water system includes the pump, seacock
and connections that will service the livewell and
raw water connection port. The raw water connec-
tion is located on the forward section of the port gun-
wale below the freshwater fill. The connection is sup-
plied by a 3.5 GPM pump. The fitting allows for con-
nection of a common garden hose. There is a cap that
is tethered to the fitting and must be screwed onto the
connection when it is not in use.
OPERATION:
The raw water pump has a seacock that needs to be
set in the OPEN position. The seacock can be ac-
cessed through the lower aft wall inside the console.
The RAW WATER switch on the instrument panel
controls pump operation.
MAINTENANCE:
Maintenance of the raw water system will require
you to check the fittings and hoses for system integ-
rity to prevent leaks. The system should be run at
least every other month to keep the pumps impellers
in good condition. The Livewell and raw-water
washdown fitting is fed by the same pump. Access
to the pump is through the aft access door in the con-
sole. The seacock for the pump must be in the
OPEN position before using.
!
Seacock handle
shown in the OPEN
position. Turn handle
clockwise to CLOSE
it.

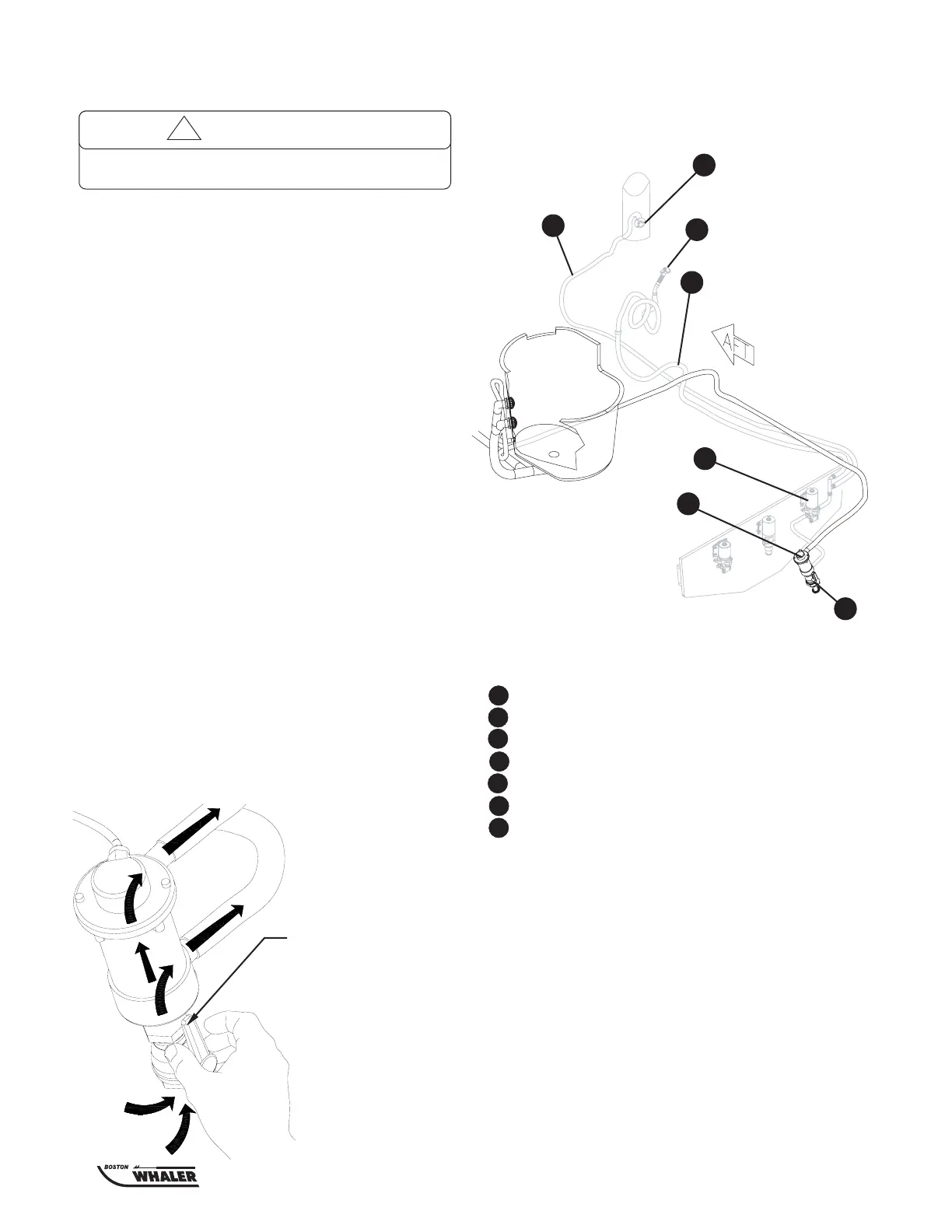

Raw Water System Diagram
1 Raw water deck fitting, (aft port)
2 Supply line from pump
3 Prep Station Sink Sprayer
4 Prep Station Supply Line
5 3.5 GPM Raw water pump
6 1100 GPH Raw-water/Livewell pump
7 Seacock
1
2
3
4
5
6
Seacock Operation
7
