Section 3 - Fuel System
320 Outrage-Owner’s Manual
GENERAL
FUEL,
The 320 Outrage is equipped with a gaso-
line fuel system. Please take time to read
and understand all the fuel related infor-
mation and warnings in the engine owner’s
packet. The diagrams below show the lo-
cation of the fuel fill, routing of fuel supply hose and the
location of the fuel tank vent.
Fuel Tank
The 320 Outrage comes with 2-150 Gal. (568L)
aluminum fuel tanks. The tanks are located under
the aft section of the cockpit. Access to the fuel
level senders for each tank is through a plate on
the aft section of the cockpit floor.
Fuel Fill
The 320 Outrage has fuel fills for each tank, located
on the port/starboard sides amidship on the gunwales,
each is marked “GAS”, and is opened by use of a
special key that is included with the owner’s manual
packet. Follow the engine manufacturer’s recommen-
dation for the types of fuel to use.

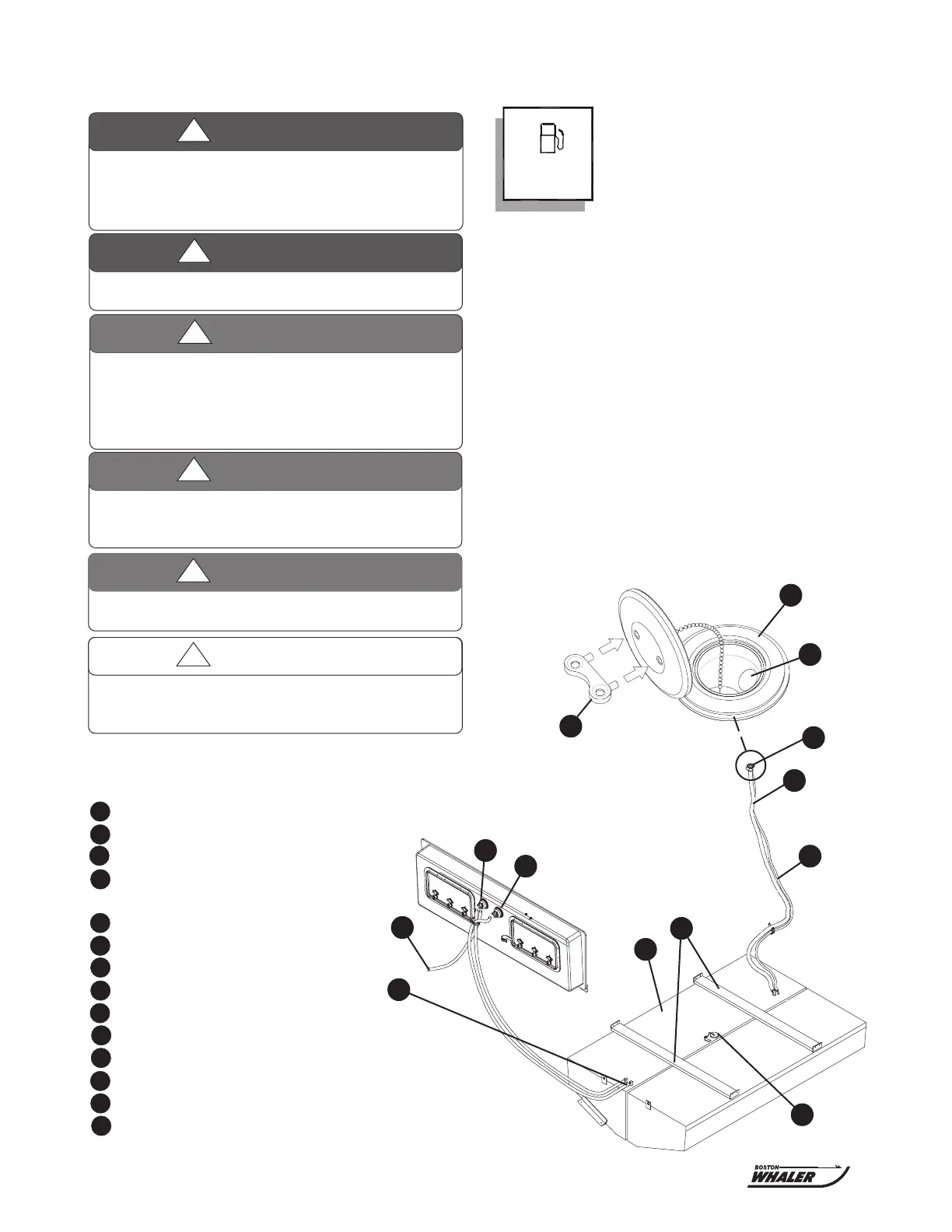

320 Outrage Fuel System
1 Fuel Fill, Port tank
2 1-1/2” Fuel fill hose to deck plate
3 5/8” Fuel vent line
4 150 Gal. (568L) Aluminum fuel
tank, Port
5 Aluminum bracket, forward/Aft
6 Fuel sender, Port tank
7 Engine fuel supply
8 Ground wire, Port tank
9 Fuel pick-up
10 Port fuel selector valve
11 Starboard fuel selector valve
12 Fuel Key (Supplied)
13 Fuel Fill Deck Plate
14 Integrated Fuel Vent
The starboard fuel tank is similar
in assembly and is not shown
in its entirety.
4
2
3
1
5
6
7
9
10
11
Fuel System
CAUTION
!
Leaking fuel is a fire and explosion hazard, inspect the
system regularly. Examine fuel tanks and exposed lines
for leaks and corrosion.
DANGER
!
Check for leaks in tubing, connections and hoses. Cor-
rect the cause of the leaks and ventilate the area to
insure that no fumes remain, prior to energizing any
electrical equipment and/or starting the engines.
CAUTION
!
Use of improper gasolines can damage your engine se-
riously. Engine damage resulting from use of improper
gasoline is considered misuse of engine and will void
the warranty. Follow engine manufacturer’s recommen-
dations regarding the types of fuel and oil to use.
CAUTION
!
Oil and fuel spills can be dangerous and can subject
offenders to severe penalties
NOTICE
!
Remove portable tanks from boat and fill from shore.
When fueling is complete, secure tanks to deck with
straps provided.
DANGER
!
Static electricity can ignite gasoline vapors causing
serious injury/death and/or destruction of property.
13
14
12
15
