2.4 Battery installation and charging
The WhalesBot drone is powered by a battery with a capacity of 1100mAh, a voltage of 3.8V,
and charge and discharge protection. The maximum flight duration is approximately 10 minutes,
so be sure to fully charge the flight battery before using it.
Installation

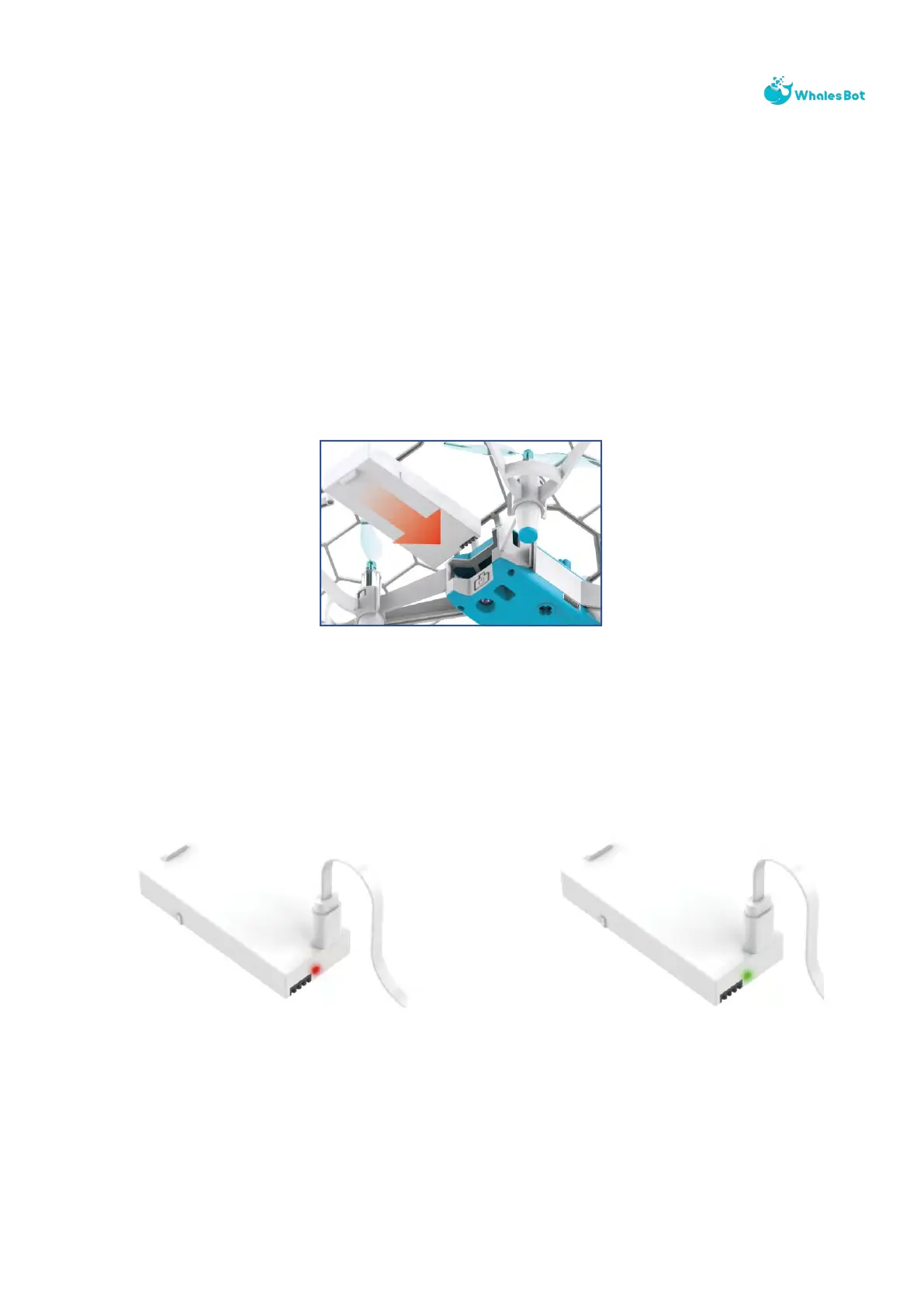

Install the battery. Make sure that the battery is oriented in the right direction, as shown in the
following figure. To remove the battery, take the battery out from the opposite direction.
Charging
Use the standard Type-C cable, connect the lithium battery charging interface and your own USB
charger (5V) to charge the lithium battery. The charging duration is about 40 minutes.
Red Light: Charging Green Light: Full Charge
Please use an FCC/CE-compliant USB charger.
After the flight, the battery will be in a high temperature. We recommend that you do not
charge the battery until the battery temperature are in the normal range.
