Power LED
When the power supply is working the LED is green;
Power switch
ON/OFF control. It is ON when “ I” is pressed down.
Adjust the output amplitude of the amplifier
Volume
PWR
7
4
8
5
6
BTL/MONO
Mode
Temp
Temperature
When the temperature limiter is activated,the LED turns yellow.
When in BTL/MONO mode the L ED is yellow.

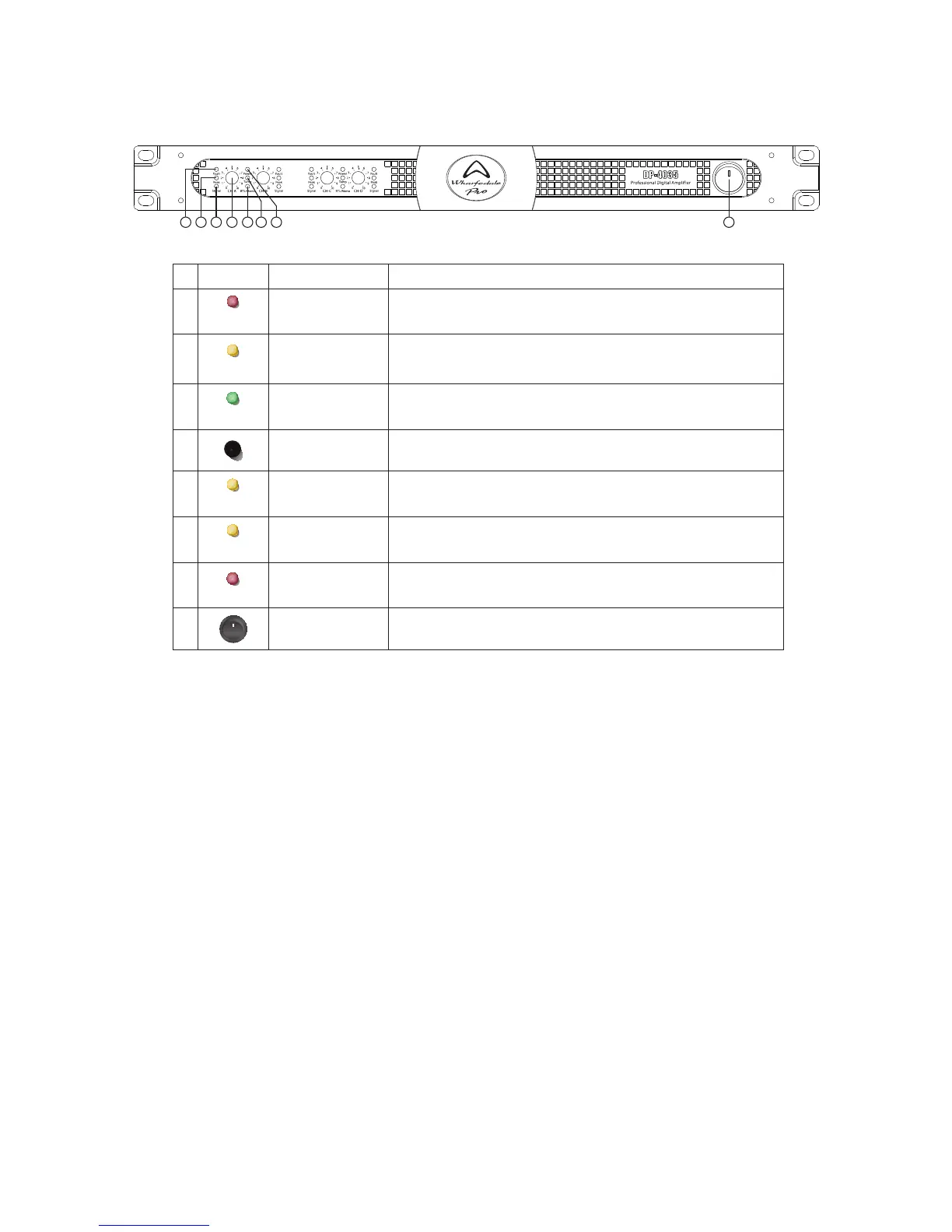

FRONT PANEL FEATURES AND CONTROLS
1 2 3 4 5 6 7 8
illustration
function
Icon
1
Icon
Protection When there is protection the LED is red.
Fault
2
Peak
Clip
When t he output signal is distorted by more than 1%，
or when
the power is compressed, the LED is yellow
When the input signal is greater than "-32dB", the LED
is green;
Signal
3
Signal LED
