Wharfedale Pro DP Series User Manual

5

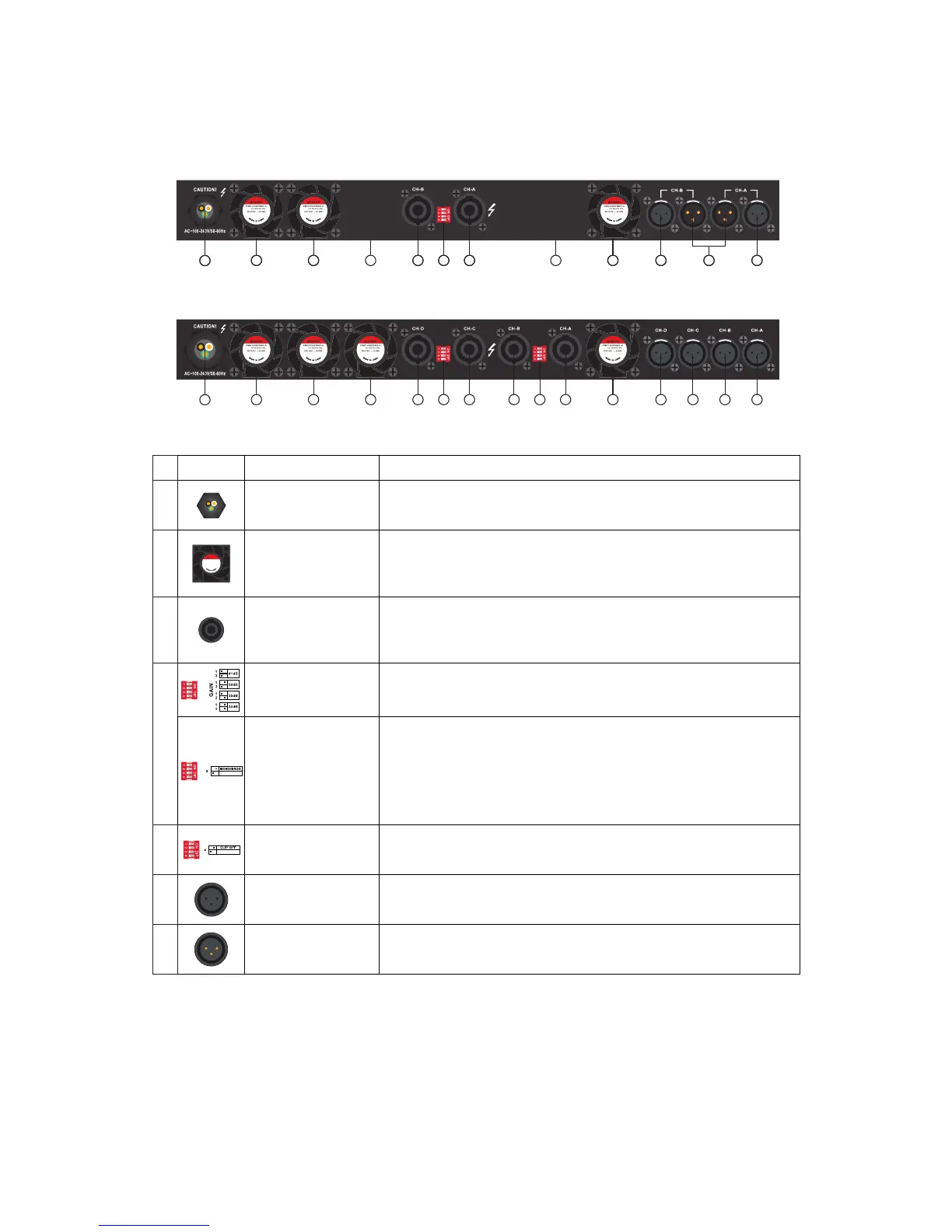

REAR PANEL – FEATURES AND CONTROLS
Rear panel for:DP-4035/4065/4100/4120
Rear panel for:DP-2200
6
5 5
1
2
3
2
2 2 2
4
3
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
6
5 5
1
2
3
2 2
4
3
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
SUN ON
PMD1 204PQ BX-A
(2).B 2220. GN
DC12 V —8.0W
1
2
3
4
5
5 5 5
2 2 2
3 3 3
4
Power supply input
Icon
function
illustration
1
2
Speakon
In order to enhance the current capacity i n the amplifier the 1+
and 2+ have been connected together, the 1- and 2- have been
connected together.
SUNON
PMD120 4PQBX -A
(2).B2220.GN
DC12V —8.0 W
SUNON
PMD120 4PQBX -A
(2).B2220.GN
DC12V —8.0 W
3
Gain switch
Set to 41dB, the amplifier voltage gain is 41dB; Set to 38dB, the
amplifier voltage gain is 38dB; and so on.
4
FAN
Ultra quiet variable speed fans
Mode switch
STEREO
Each channel is independant.. CHA input signal output from
CHA; CHB input signal output from CHB; and so on.
MONO/BRDG
CHA input signal output from CHA and CHB; CHC input signal
output from CHC and CHD.
STE REO
CLI P ON
CLIP Switch
Set to ON, the clipping limiter is turned on; Set to OFF, the clipping
limiter is turned off.
Female XLR : Balanced audio input plug
Balanced audio input plug
Signal input
4
5
Male XLR :
Signal input
6
Others:10A , 3×1.5mm² Power cord；
DP-4120:10A , 3×2.5mm² Power cord；
