Setting Device Diagnostic
Indicators:
The central Core-S™ diagnostic indicators are always
on to provide insight into the system's current state.
Individual devices connected to Core-S™ need to be
configured manually in the configuration itself.
Enabling diagnostic indicators on all WeCanX®
devices in your configuration lets you see their status
visually. Which helps to determine what state the
device is in and if the device has gone to sleep. To

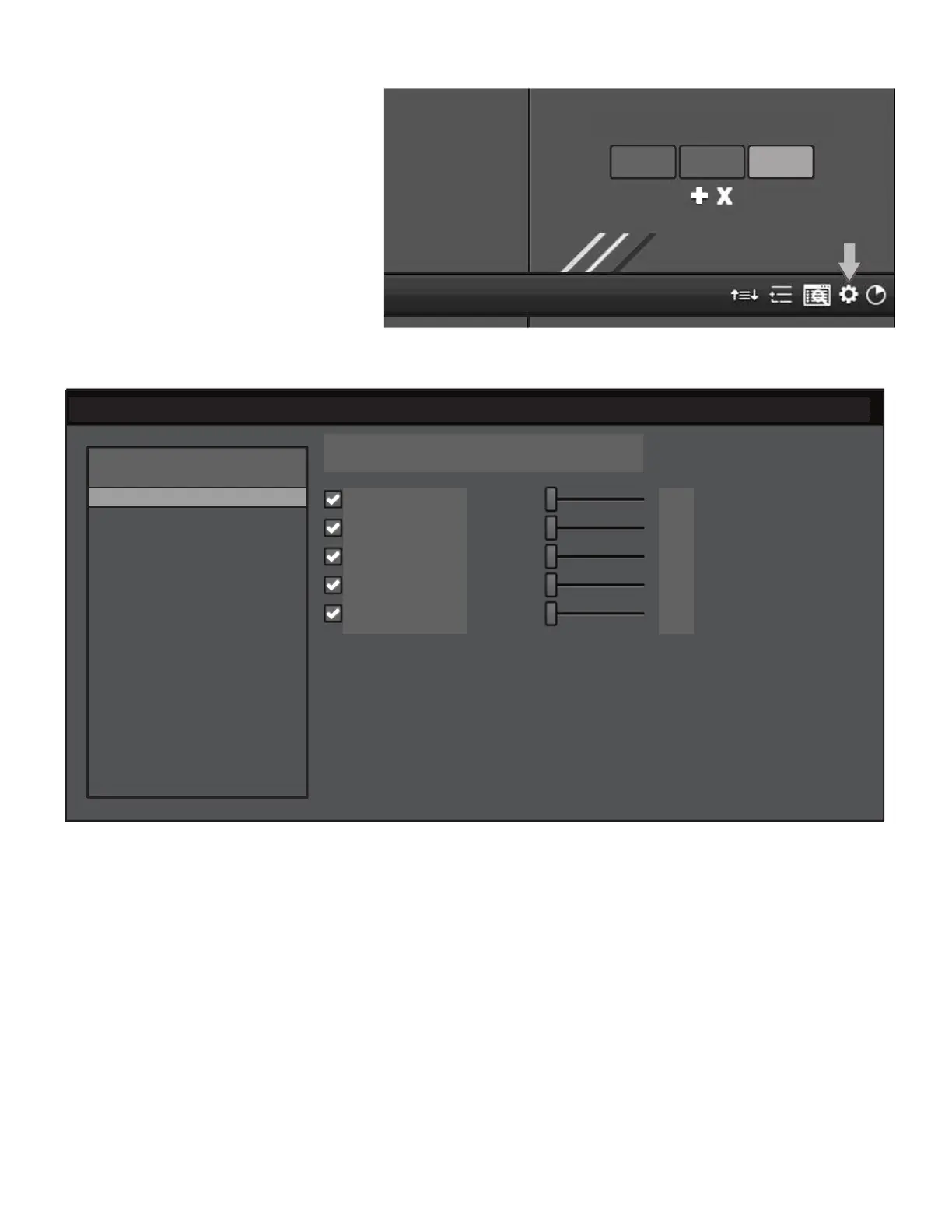

turn these indicators on, open Whelen Command®,
navigate to configuration settings and select
diagnostic indicators. From there, you can choose
which devices to enable and the intensity of their
indicator lights.
NOTE: The diagnostic indicators are very useful for following the progress of large configuration transfers to external sirens.
