2
2

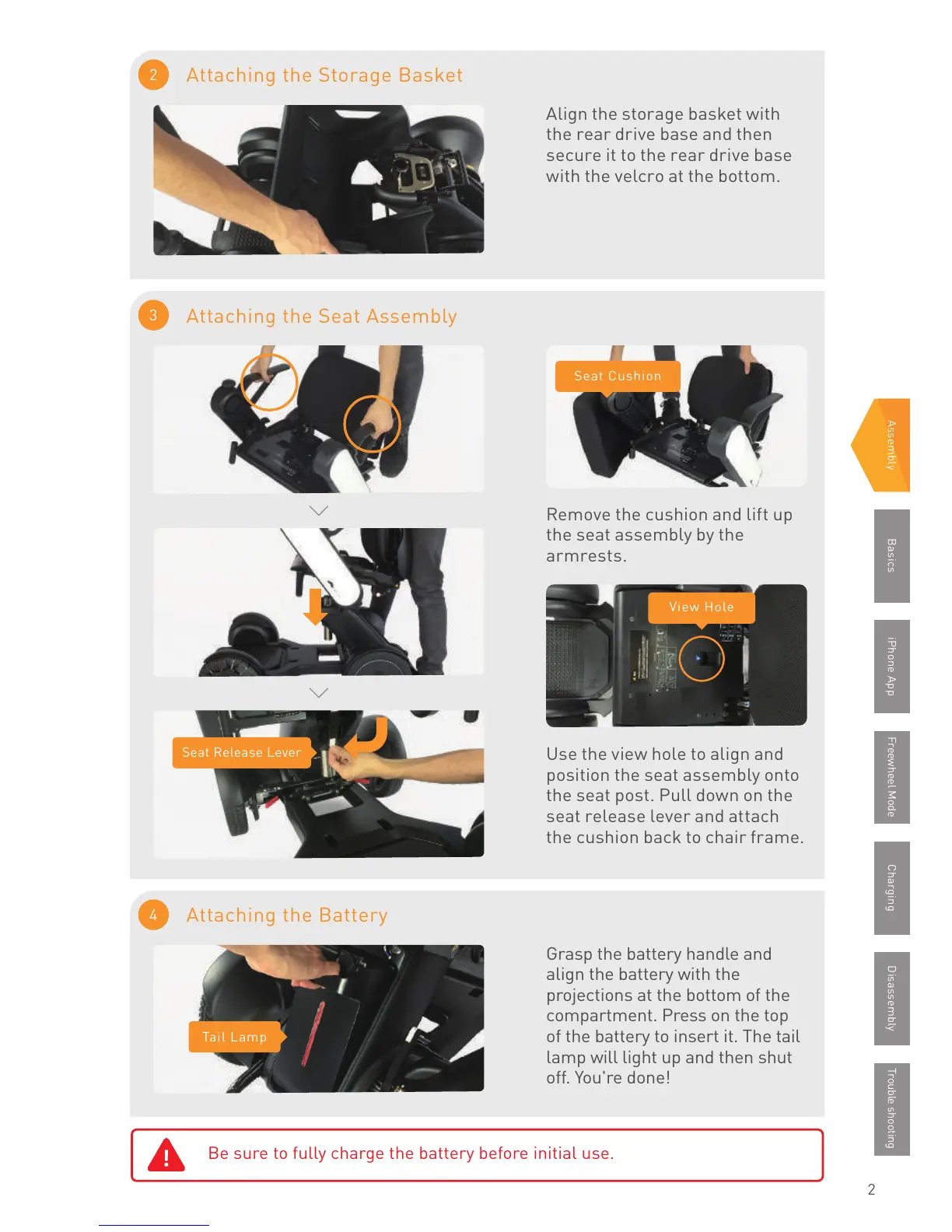

Attaching the Storage Basket
Align the storage basket with
the rear drive base and then
secure it to the rear drive base
with the velcro at the bottom.
3
Attaching the Seat Assembly
Remove the cushion and lift up
the seat assembly by the
armrests.
Seat Cushion
Use the view hole to align and
position the seat assembly onto
the seat post. Pull down on the
seat release lever and attach
the cushion back to chair frame.
View Hole
Be sure to fully charge the battery before initial use.
4
Attaching the Battery
Grasp the battery handle and
align the battery with the
projections at the bottom of the
compartment. Press on the top
of the battery to insert it. The tail
lamp will light up and then shut
off. You're done!
Tail Lamp
BasicsAssembly iPhone App Freewheel Mode Charging Disassembly Trouble shooting
Seat Release Lever
