INSTALLATION INSTRUCTIONS

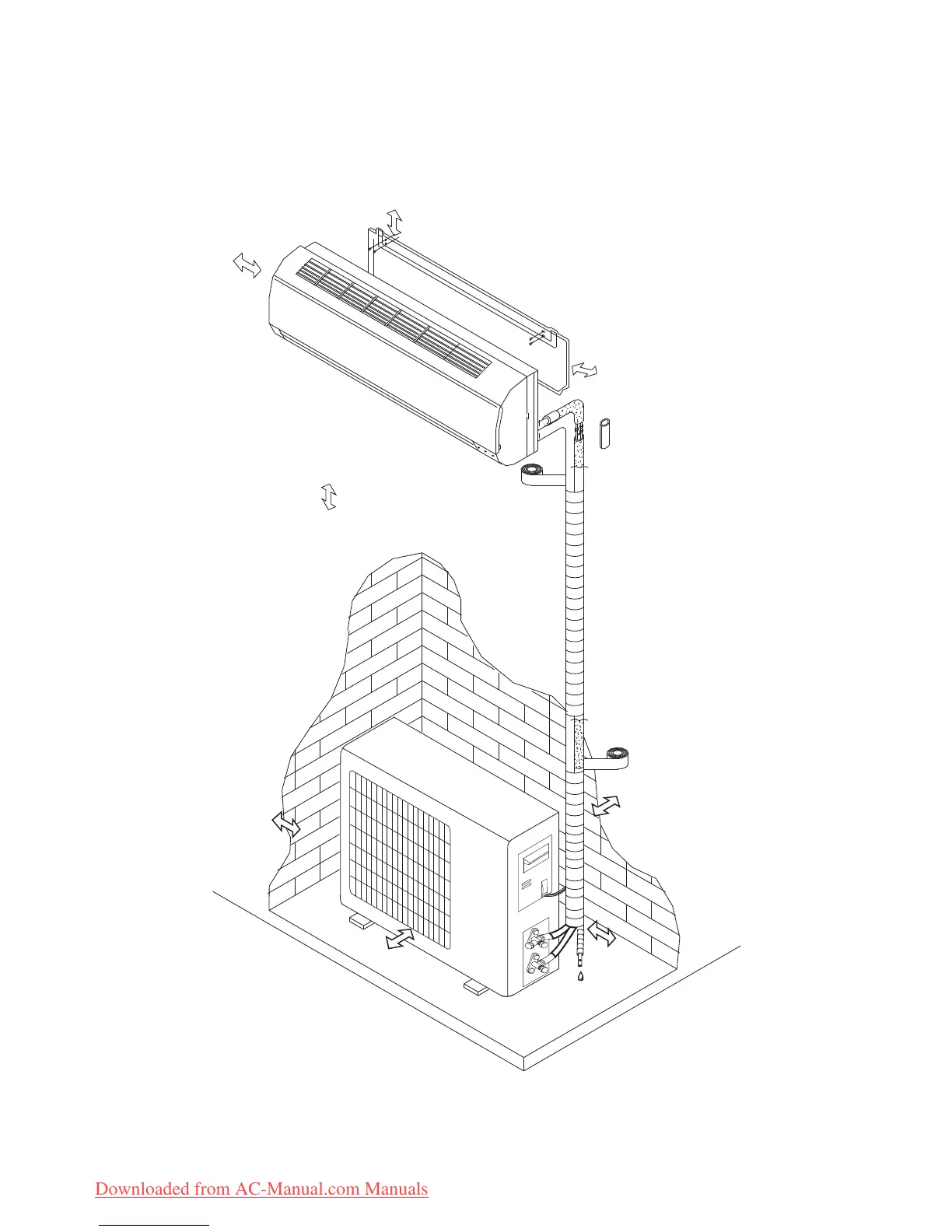

Installation diagram
NOTE: The figure above is only a simple presentation of the unit, it may not match the external
appearance of the product you purchased. Installation must be performed in accordance with the national
wiring standards by authorized service people only.
Distance from wall
should be over 50mm
Distance from ceiling
should be over 50mm
Distance from floor
should be over 2000mm
Distance from the wall
should be over 50mm
Air intake distance from
the wall should be over
250mm
Air intake distance from
the wall should be over
250mm
Air outlet distance from the wall
should be over 500mm
Over 250mm
