Whirlpool AMD 093 - Window Slider Kit Finalization; Rain Cover Installation; Adjusting Window Slider Sections

4. Open the window.
5. Measure the window opening.
• If the window opening is too narrow for the
window slider kit, remove the inner slider
section from the window slider kit.
• Using a saw, cut the inner slider section to fit
the window opening.
• Slide the inner slider section into the outer slider
section of the window slider kit.

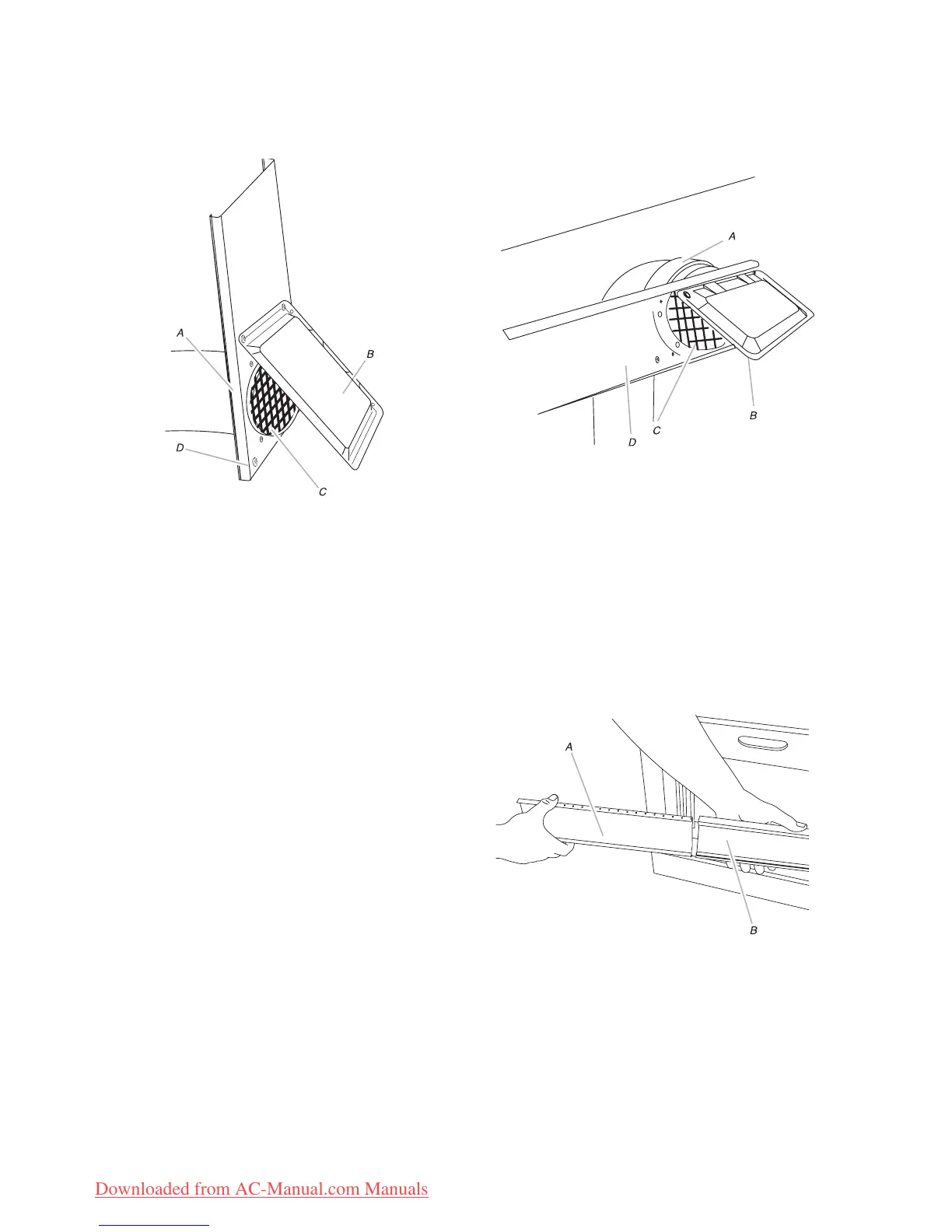

A. Window exhaust adapter
B. Rain cover
C.Outlet grille
D.Window slider kit
A.Window exhaust adapter
B. Rain cover
C. Outlet grille
D.Window slider kit
A. Inner slider section
B. Outer slider section
Rain Cover-Vertical Installation Rain Cover-Horizontal Installation
31
