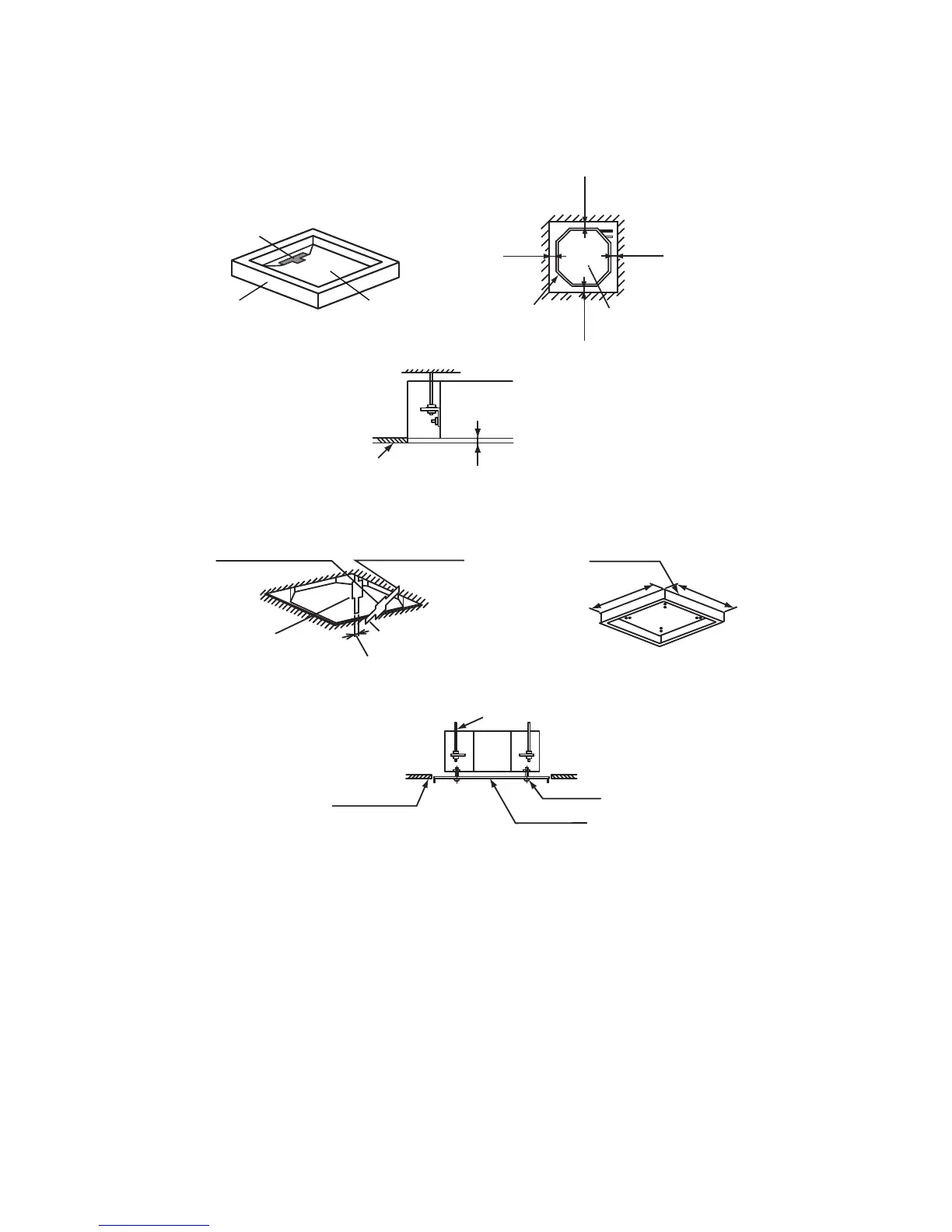

5. Check the position of the indoor unit with the checking scale(factory-supplied)
• For ceiling already completed with panels
• For ceiling not completed with panels yet
7
Checking scale for
dimension of opening
Packing
(Corrugated board)
Pattern board for
installation
Surface of flange
10 to 35
10 to 35
10 to 35 10 to 35
Slub
Surface of ceiling
Indoor unit
Attach the scale to the bottom
side of the unit
Attach the scale to the
face of ceiling
Checking scale for
dimension of opening
Check the dimension of
opening at each side
Adjust the height of the ceiling
and the unit at each corner
Pattern paper for
installation
Dimension for
opening
Dimension for
opening
Suspension bolt
Screw(M6)
parttern board for installation
Surface of ceiling
Indoor unit
