5

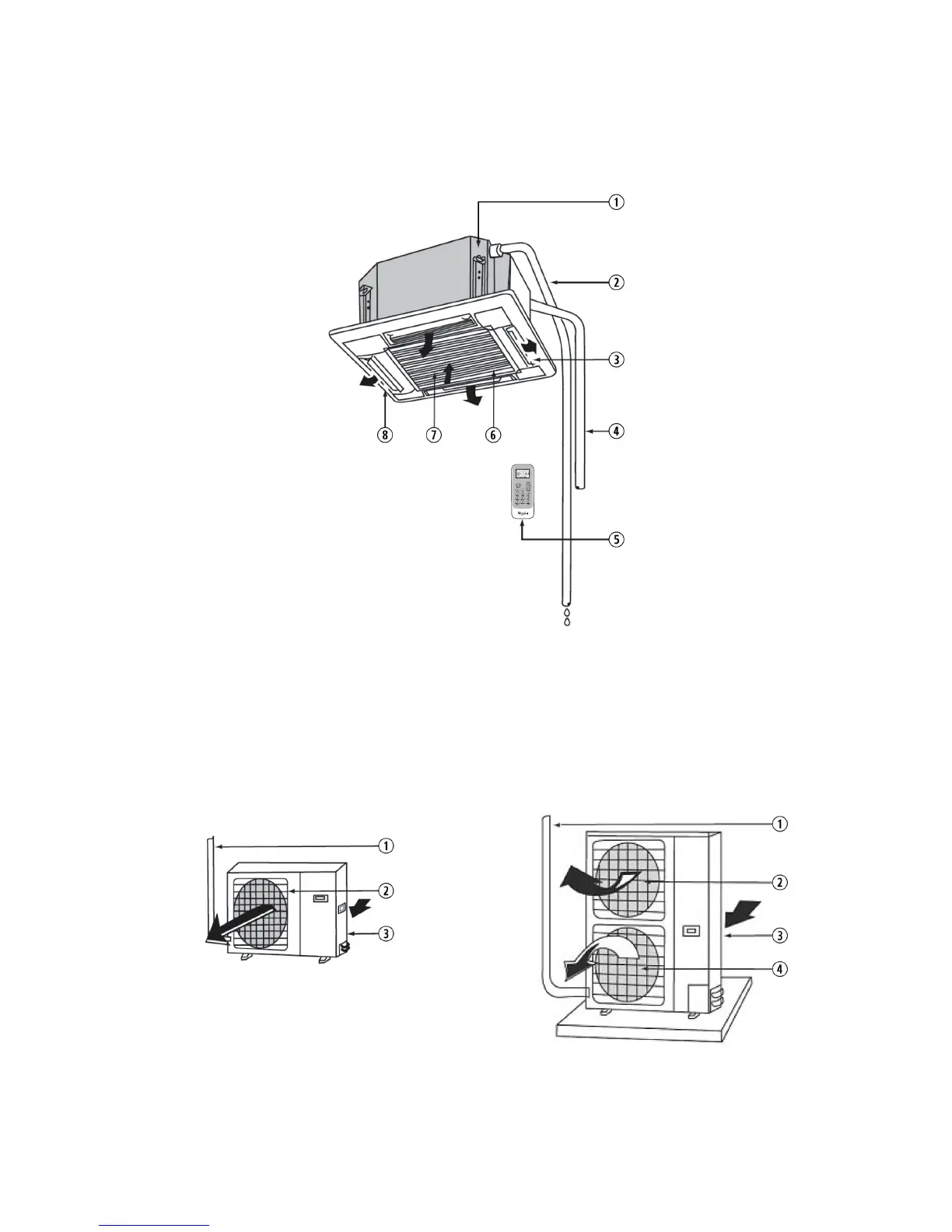

DESCRIPTION OF AIR CONDITIONER
1. Drainage device (built-in).
Drains water removed from the room unit
during cooling
2. Drainage pipe
3. Air flow flap (at air outlet)
4. Refrigerant piping connection electric wire
5. Remote control
6. Air intake grille
7. The built-in air filter removes dust and dirt
8. Air outlet
AMD 385 - 386
Indoor Unit
AMD 385 - Outdoor Unit
AMD 386 - Outdoor Unit
1. Refrigerant pipe
2. Air outlet
3. Air intake
1. Refrigerant pipe
2. Air outlet
3. Air intake
4. Air outlet
