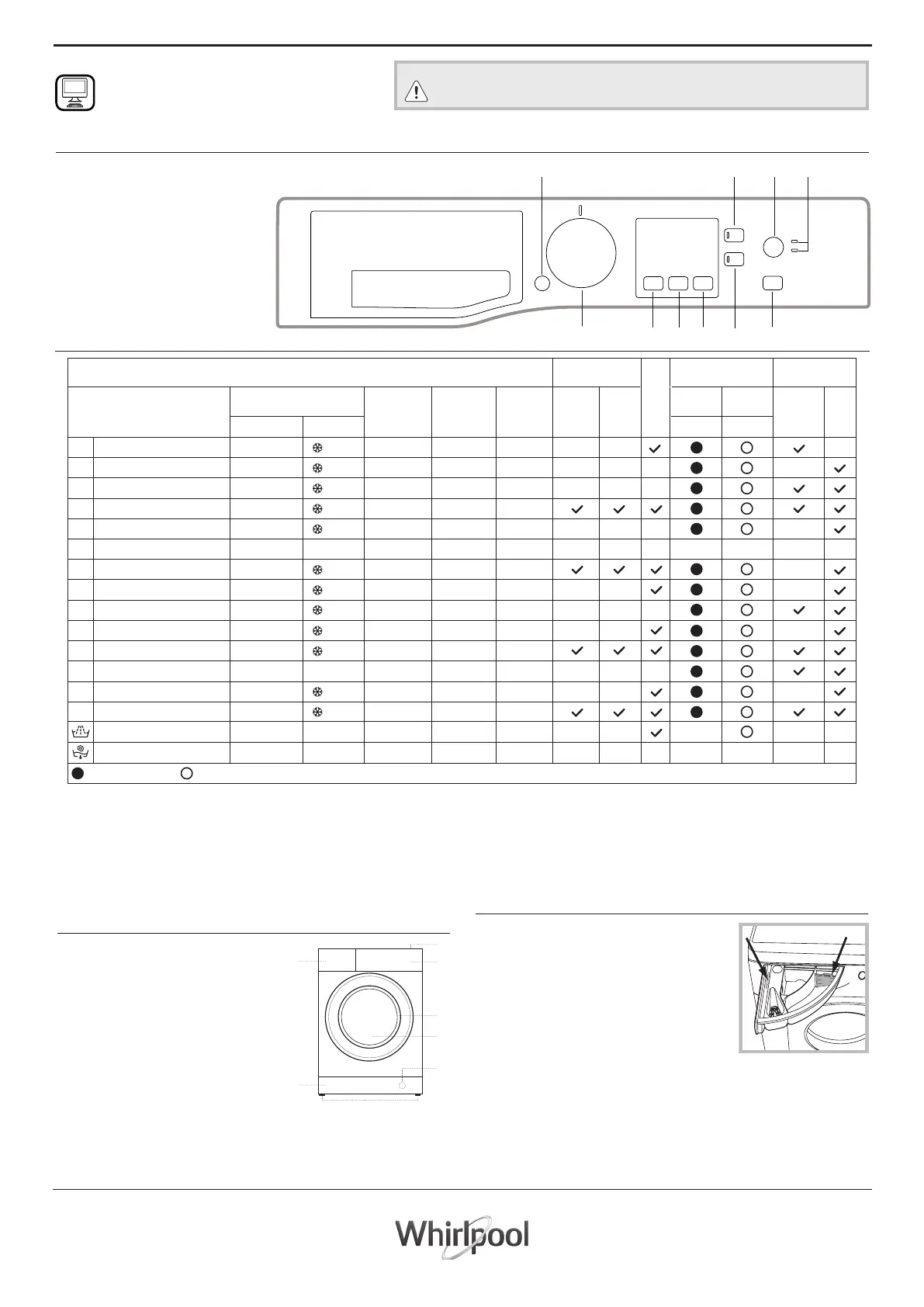

Quick Guide
Before using the appliance carefully read the Health and Safety guide.
Before using the machine, it is imperative that the transport bolts are removed. For more
detailed instructions on how to remove them, see the Installation Guide.
CONTROL PANEL
WASH CYCLE TABLE
PRODUCT DESCRIPTION
1.
3.
2.
5.
4.
7.
6.
8.
1. Top
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
1. ON/OFF button
2.
OPTIONS buttons and indicator light
3. CLEANING ACTION button
4. CLEANING ACTION indicator lights
5. START/PAUSE button and indicator light
6.
CHILD LOCK
button
7. DELAY START button
8. SPIN button
9. TEMPERATURE button
10. WASH CYCLE SELECTOR KNOB
DETERGENT DISPENSER DRAWER
Compartment *:
Do not insert detergent in this compartment.
Compartment 1: Washing detergent (powder
or liquid)
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
dosage.
If powder detergent is used, place the partition
into slot B.
Compartment 2: Additives (fabric softeners, etc.)
The fabric softener must not exceed the “MAX” level.
! Follow the instructions given on the detergent packaging
.
! Do not use hand washing detergents; they create too much foam.
1
2
A
B
*
Maximum load 7 kg
Wash cycle
Temperature
Maximum
spin
(r.p.m.)
Max. load
(kg)
Duration
(h : m)
Setting Range
1
Anti-Stain 40°
40 °C
- 40 °C
1200 7.0 3:00
2
Anti-Stain Rapid
40 °C
- 40 °C
1200 3.5 1:00
3
Cotton
40 °C
- 60 °C
1200 7.0 3:50
4
Synthetics
40 °C
- 60 °C
1200 3.5 2:55
5
Rapid 30’
30 °C
- 30 °C
3.0 0:30
6
Steam Refresh
– – – 1.5 0:20
7
Mixed
40 °C
- 40 °C
1200 7.0 1:30
8
Wool
40 °C
- 40 °C
- 60 °C
800 1.5 1:25
9
Eco Cotton
60 °C
1200
7.0
4:20
10
Cotton 20°C
20 °C
- 20 °C
1200 7.0 1:50
11
White
60 °C
- 90 °C
1200 7.0 2:30
12
Anti Allergy
60°C 40 °C - 60 °C 1200 4.0 3:20
13
Silk & Curtains
30 °C
- 30 °C
600
1.0 0:55
14
Bed&Bath
60 °C
- 60 °C
1200 7.0 2:00
Rinse&Spin
– – 1200 7.0 0:50
Spin&Drain
– – 1200 7.0 0:10
Required dosage Optional dosage
THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.
To receive more comprehensive assistance, register the
appliance on www.whirlpool.com.hk
---------
(delete)
Detergents and
Additives
Recommended
detergent
Wash
Fabric
softener
Powder
Liquid
1 2
–
–
–
– – – –
– – – –
–
–
–
–
– – –
Cleaning Action
Extra Rinse
– –
– – –
– – –
– –
– – –
– –
– –
– – –
Intensive
Delicate
Eco Cotton - Test wash cycles in compliance with regulations EN 60456: Set this wash cycles
with a temperature of 60°C.
For all test Institutes
Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
This data may di˜er in your home due to changing conditions in inlet water temperature,
water pressure etc. Approximate programme duration values refer to the default setting of
the programmes, without options.
The washer adapts water, energy and programme duration to your wash load.
– – –
– – –
– –
– – –
1
10
2
DISPLAY
4
5
6
7
8
9
3
