c) Use an 8 mm socket and carefully re-
move the orifice spud from each of the
four burners.
d)Install the four L.P. gas orifices in the
burners, as shown in the following chart
(do not overtighten them):

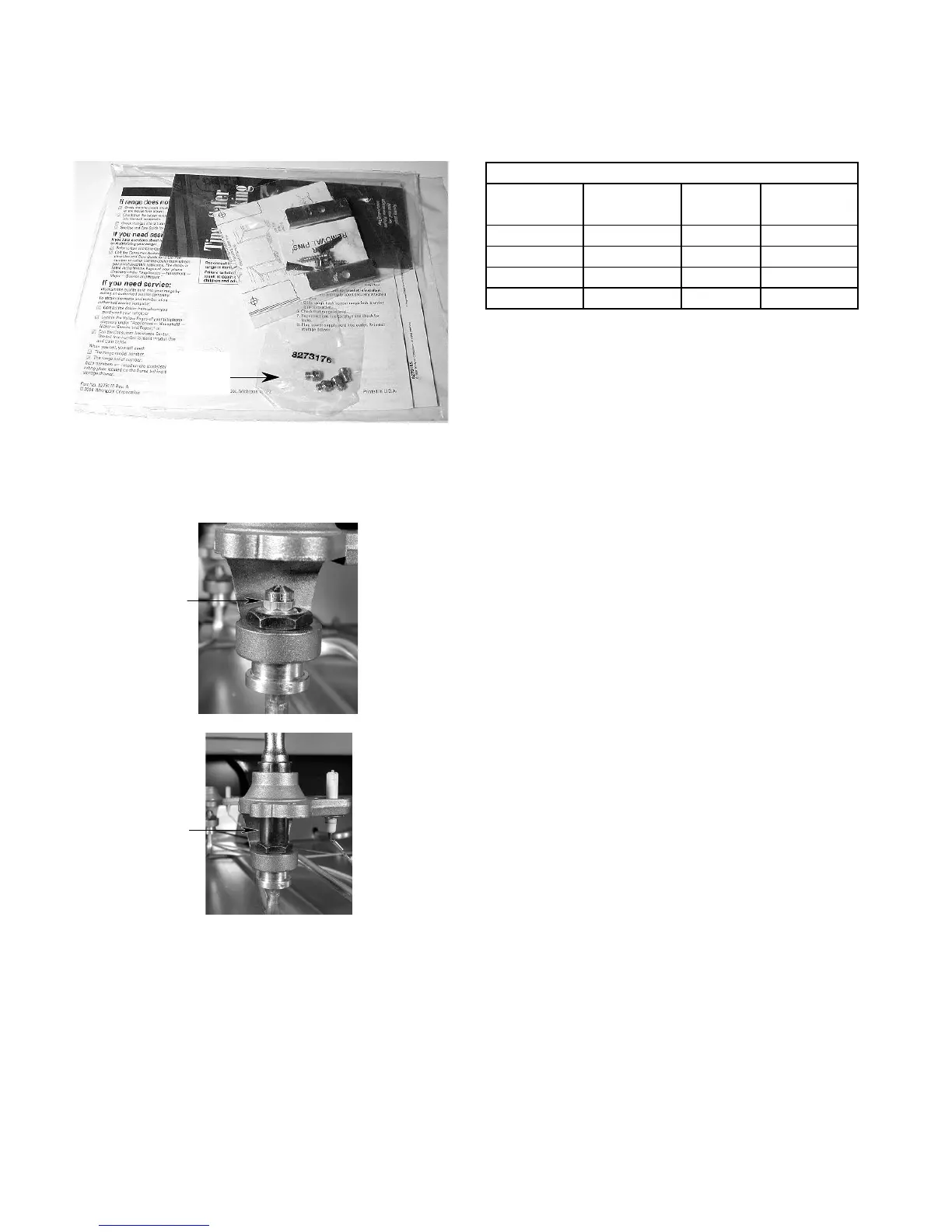

NOTE: The L.P. orifices are contained in a
small plastic bag, which is located inside the
literature bag.
e) Place the natural gas orifices in the plas-
tic bag for possible use later.
Surface
Burner
Orifice
8mm
Socket
Orifice
Bag
Surface Propane Rate Orifice Color
Burner (B.T.U. /Hr) Number Marking
Left Rear 8,000 L80 Green/Lt. Blue
Left Front 11,000 L99 Green/Yellow
Right Front 8,000 L80 Green/Lt. Blue
Right Rear 5,000 L65 Green/Brown
L.P. GAS
To Next Page
