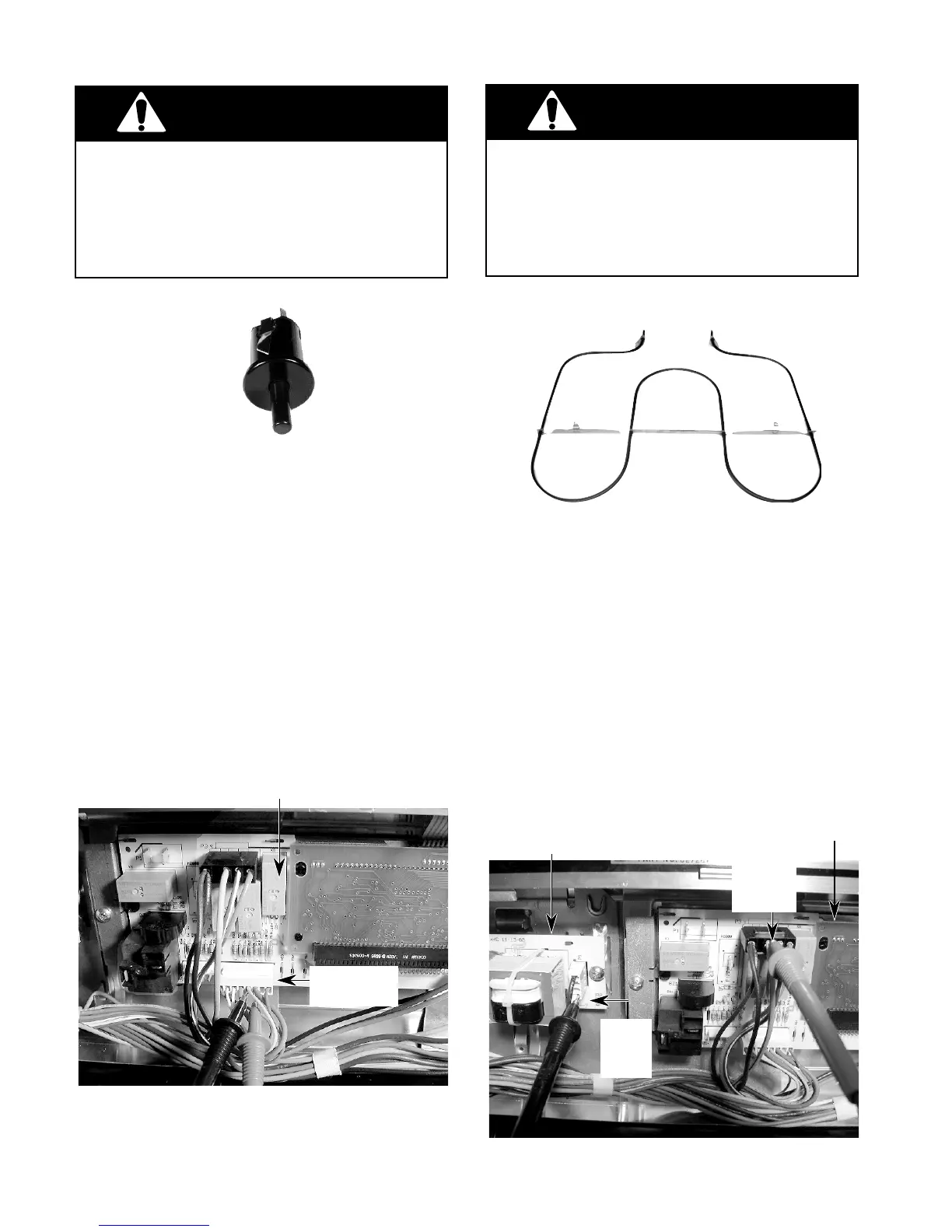

Whirlpool KR-32 - Door Switch; Warming Drawer Element

5-2
Refer to page 4-7 for the procedure for servic-
ing the door switch.
1. Disconnect the electrical power to the
range.
2. Set the ohmmeter to the R x 1 scale.
3. From the back of the range, touch the
ohmmeter leads to the electronic oven
control plug P4, wire terminals 3 (gray)
and 4 (yellow).
4. With the oven door closed, the meter
should indicate continuity (0 Ω).
With the oven door open, the meter should
indicate an open circuit (infinite).
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
Refer to page 4-11 for the procedure for servic-
ing the warming drawer element.
1. Disconnect the electrical power to the
range.
2. Set the ohmmeter to the R x 1 scale.
3. From the back of the control panel, touch
one of the ohmmeter leads to the control
power supply plug P1, pin 4 (P1-4, white
wire). Touch the other meter test lead to
the electronic oven control plug P3, pin 2
(P3-2, org-blk wire) The meter should indi-
cate between 12 and 18 Ω.
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
WARMING DRAWER ELEMENT
P1-4
White
Wire
P3-2
Org-Blk
Wire
Control
Power Supply
Electronic
Oven Control
Electronic Oven Control
P4
Pins 3 (gry)
& 4 (yel)
DOOR SWITCH
