4-8

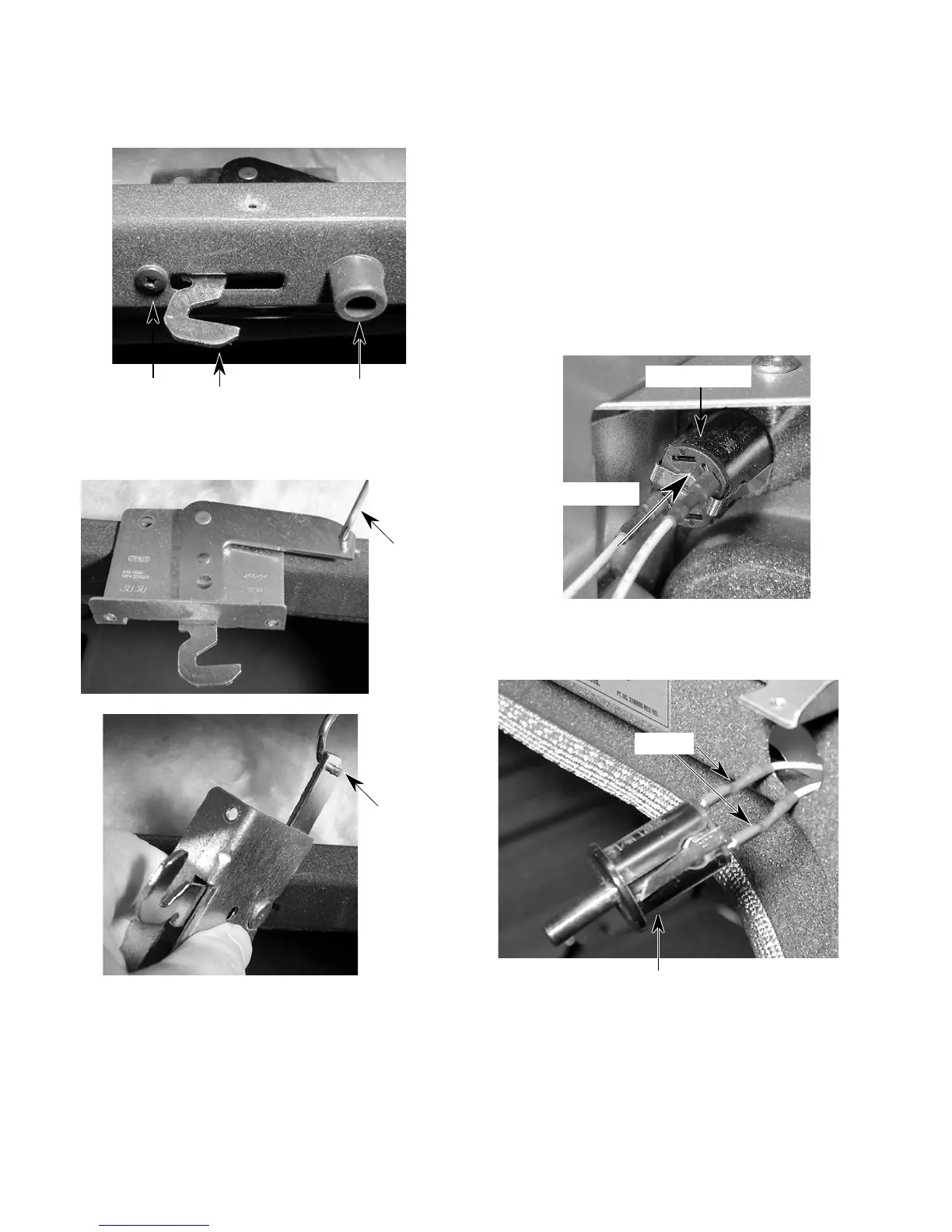

f) Remove the two screws and rubber
bumper from the door latch.
Screw
Door Latch
g) Remove the door latch from the burner
box and unhook the actuating rod.
7. To remove the door switch:
a) If not already done, raise the cooktop
and prop it up (see page 4-2 for the
procedure).
b) Push the switch body out of the mount-
ing hole in the chassis. To do this, place
the end of a 1/4˝ socket, or something
similar, against the end of the door
switch body between the wire connec-
tors, and tap it out of the mounting hole
with a hammer.
Actuating
Rod
Unhook
Actuating
Rod
Screw &
Rubber Bumper
c) Disconnect the wires from the termi-
nals.
Door Switch
Push Out
Wires
Door Switch
