4-10

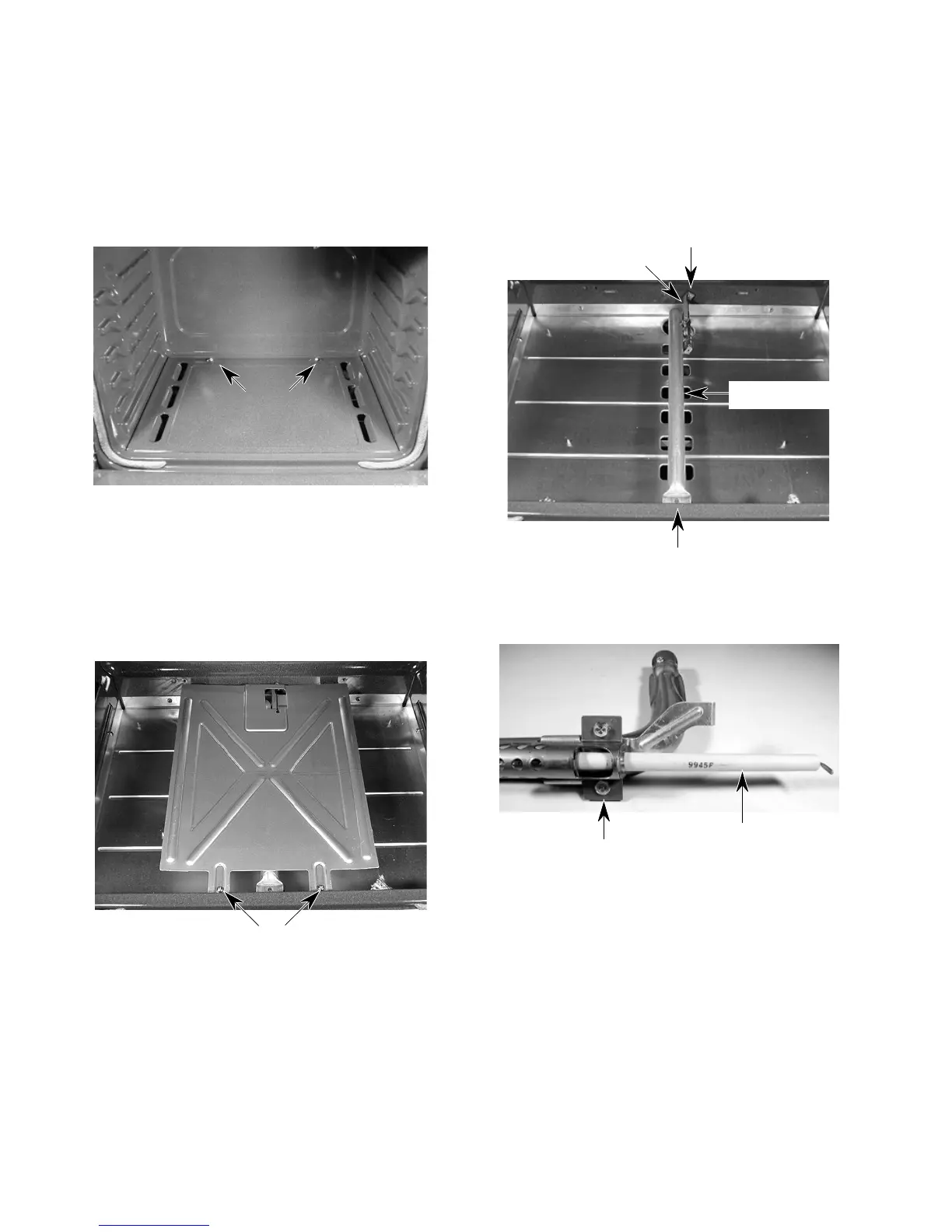

4. To remove the bake burner & ignitor:
a) Remove the two screws from the oven
floor.
b) Lift the back of the oven floor, slide the
floor back so that the front lip is out of
the liner, and remove the floor.
e) Remove the front and rear screws from
the bake burner.
f) Lift the bake burner off the orifice and
pull it forward just far enough to discon-
nect the wire from the bake ignitor, and
remove the burner assembly.
c) Remove the two screws from the front
of the burner shield.
d) Slide the burner shield forward so the
two tabs at the back are free of the liner,
then lift the two front tabs out of the
slots, and remove the shield.
Oven Floor
Screws
g) Remove the two screws from the bake
burner ignitor bracket and remove the
ignitor from the bake burner.
Front Screw
Rear Screw
Bake Burner
Ignitor
Bake Ignitor
Ignitor
Bracket
Burner Shield
Screws
To Next Page
