ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
REMOVING THE OVEN TEMPERATURE SENSORS
CAUTION: When you work on the gas range,
be careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.
WARNING
FIRE HAZARD
Shut off gas supply line valve before servic-
ing the range.
Check all gas line connections and replace
all panels before operating the range.
Failure to do so could result in explosion, fire,
or other injury.

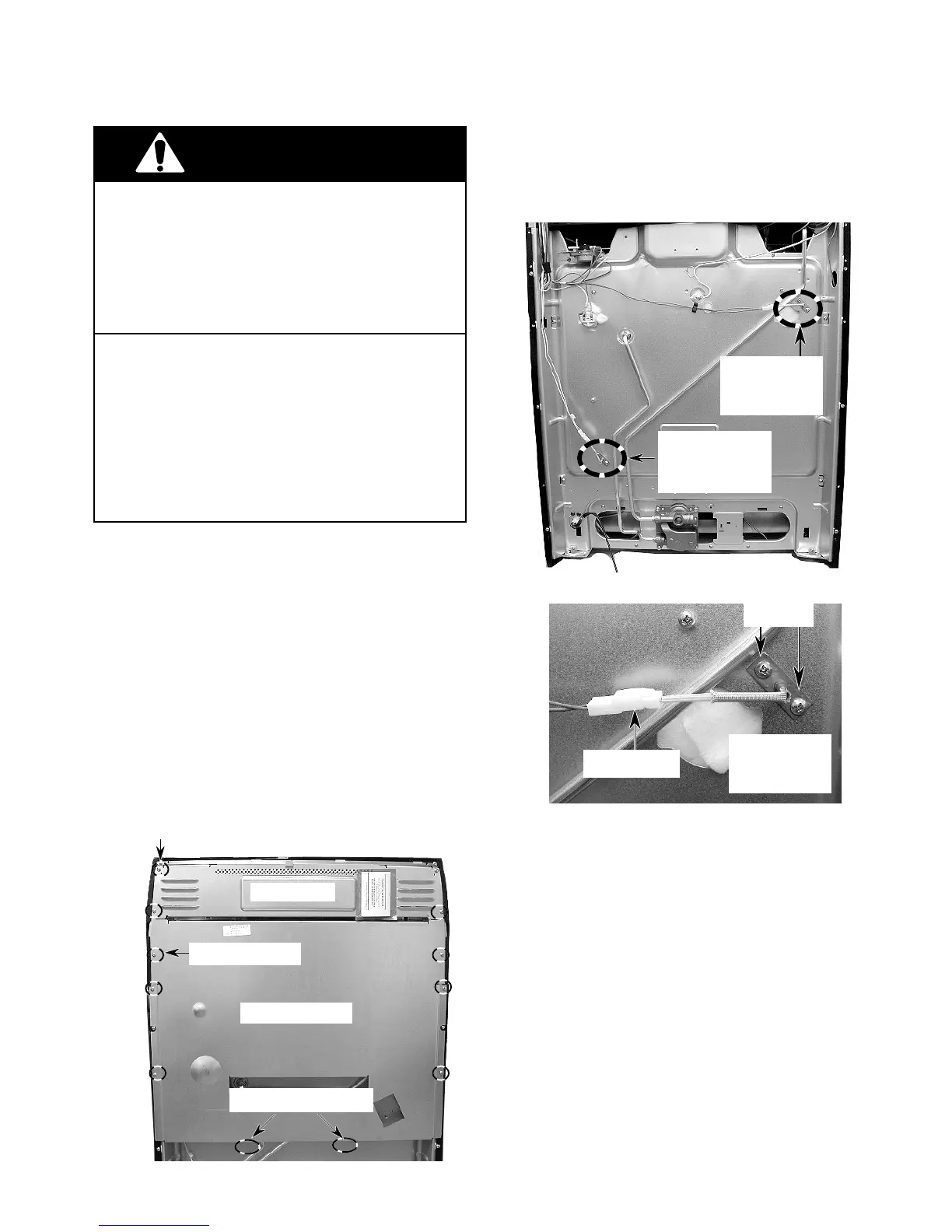

4. To remove an oven temperature sensor,
remove the two screws and disconnect
the connector from the main harness.
1. Turn off the gas to the range and discon-
nect the power cord from the wall outlet.
2. Pull the range away from the wall so you
can access the back of the unit.
3. Remove the indicated top and bottom
cover screws, loosen the two indicated
bottom cover screws, and remove the
covers.
Top Cover
Screw (1 of 6)
Bottom Cover
Loosen 2 Screws
Screw (1 of 4)
Bottom Oven
Temperature
Sensor
Top Oven
Temperature
Sensor
Screws
Connectors
Oven
Temperature
Sensor
To Next Page
