COMPONENT ACCESS
4-16
n
Multi-Door Freestanding Refrigerator
Accessing Freezer Compartment Components

1. While holding the handle, insert the short end of the hex key
into a setscrew hole and slightly rotate the hex key unl it is
engaged in the setscrew.
2. Using a right to le moon loosen the setscrew a quarter-
turn at a me.
3. Repeat steps 1 and 2 for the other setscrew. Slowly pull the
handle away from the door or drawer.
4. If necessary, use a Phillips screwdriver to remove the
shoulder screws from the door.

1. Open the freezer drawer to its full extension.
2. Remove the two, 1/4" (6.4 mm) screws on top-inside of
freezer drawer front (one on the le-hand side and one on
the right-hand side).
3. Li up on the drawer front to release the plasc studs from
the drawer glide bracket slots.
4. Pull out lower basket as far as possible to access basket-
stops.
5. Insert a s blade puy knife behind the rail past the
basket-stop and force the rail inward while inserng a small
blade screwdriver into the square slot in the rail. Pry out the
freezer basket-stop. Only one basket-stop needs to be
removed.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
B
A

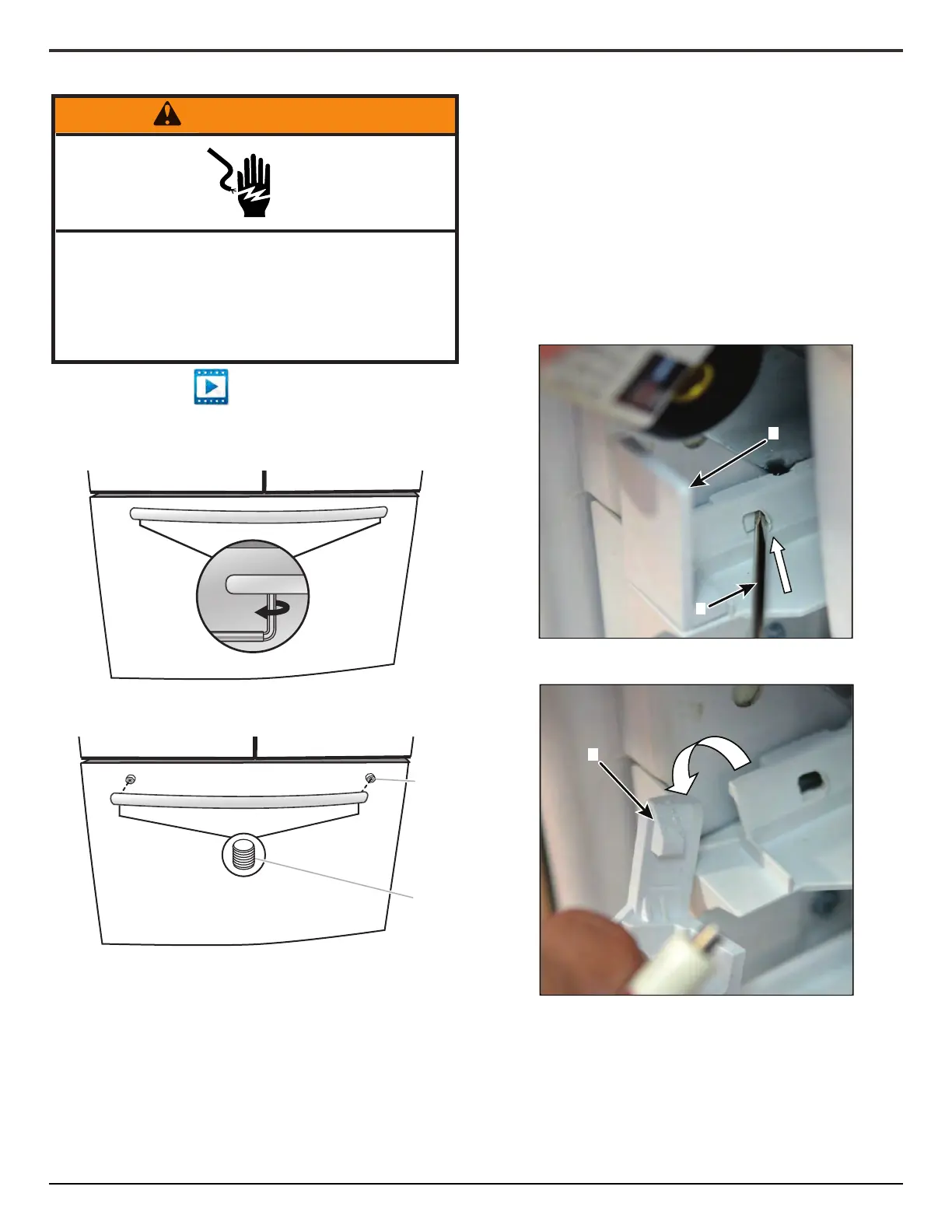

A. Shoulder screw
B. Setscrews inside the handle
A
B
A. Basket stop
B. Screwdriver
A
A. Basket stop
Freezer Door Removal
