COMPONENT ACCESS
Multi-Door Freestanding Refrigerator
n
4-21
Accessing Ice Maker and Dispenser Components (Continued)

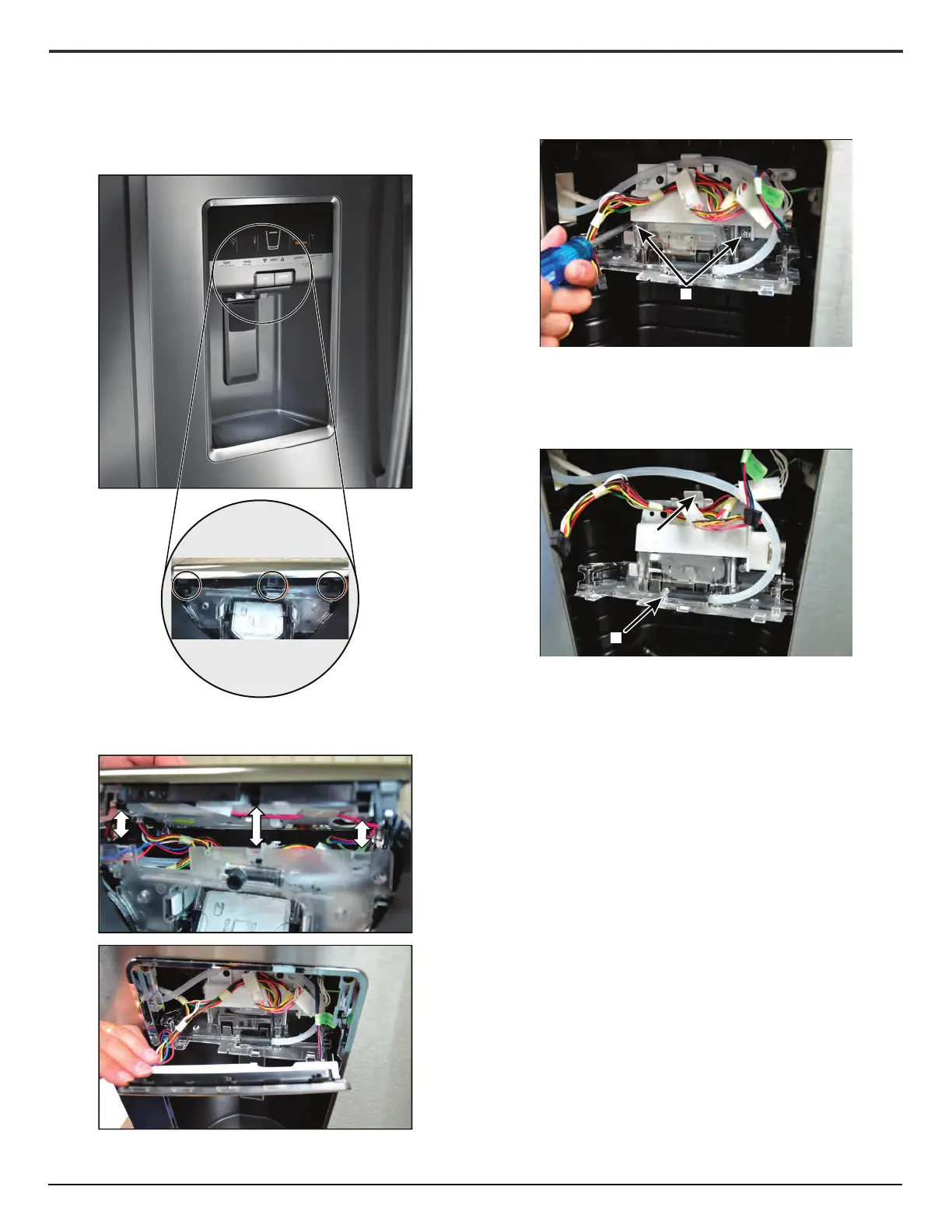

1. To remove user interface (UI) assembly, insert small
screwdriver to depress black tabs on underside of UI in these
3 locaons.
2. Pull out and lower UI, then disconnect board from wire
harness connectors to remove.
3. To remove ice door assembly, rst remove two screws
securing assembly to refrigerator door.
4. Disconnect dispenser hose by removing hose from locater
channel and then by locang and depressing the tab to
release.
5. Pull out the assembly to service.
A
A. Screws
B
A
A. Tab
B. Locater channel
To Next Page
