SC PRO 111519
Page 12 | 1-800-343-9463
PREPARING THE UNIT FOR INSTALLATION
Single-Piece Mounting Bracket
The SC Series utilizes a single-piece mounting bracket. This sturdy
bracket frames the installation location and secures the unit to the wall.

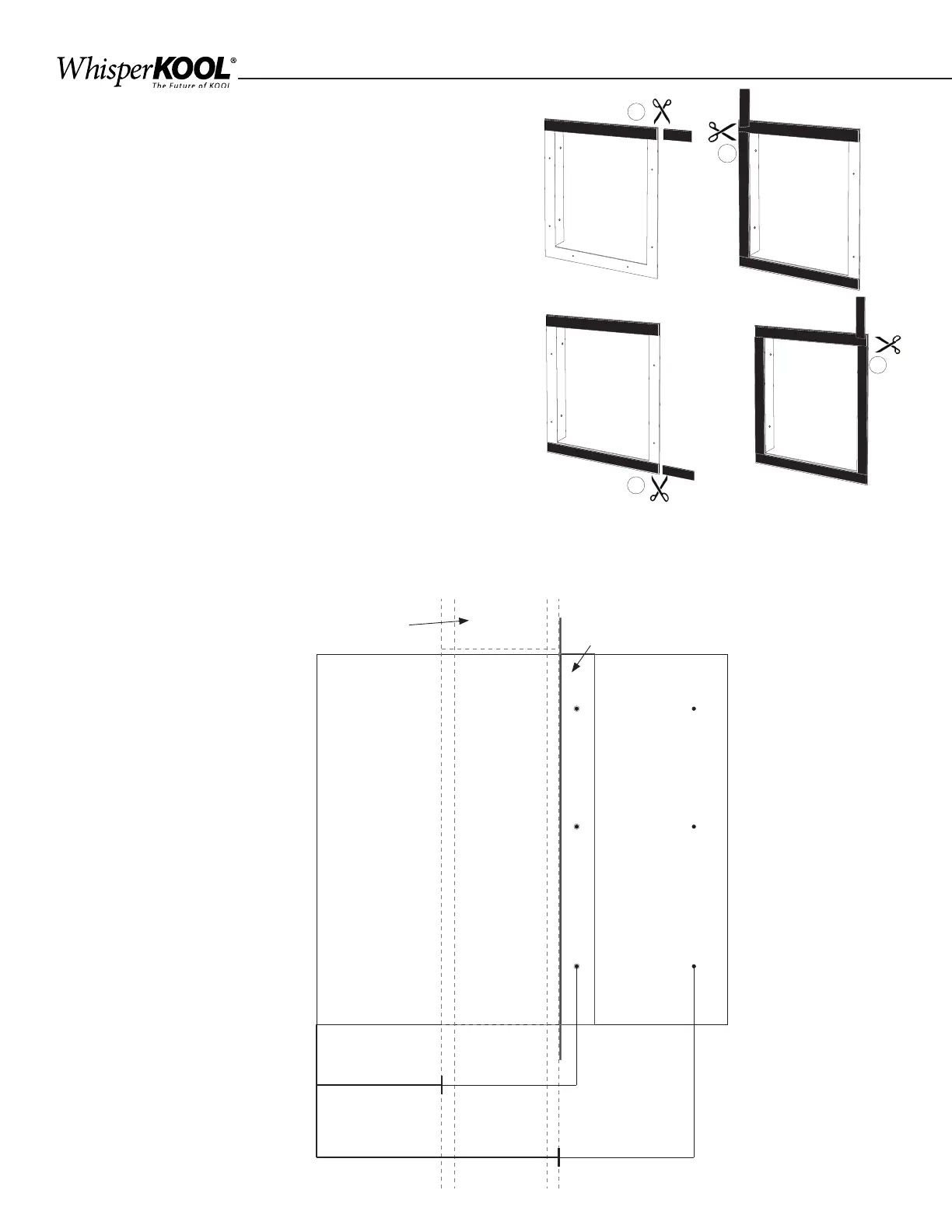

Applying Insulation Tape
Locate the six-foot piece of black foam tape included with the unit.
Align one end of the foam tape with the upper left corner of the rear
side of the mounting bracket. Stretch the tape across the rear of the
bracket and cut the tape at the opposite edge. Peel o the white paper
backing and attach the cut piece of foam tape to the top rear side of
the mounting bracket. Follow the same procedure to place a piece of
tape on the bottom edge of the mounting bracket. Place the remaining
piece of foam tape on one side of the mounting bracket (spanning the
distance between the pieces of tape on the top and bottom edges of the
mounting bracket), then cut, remove paper backing, and secure. Do the
same on the opposite side of the bracket. Discard any excess. The foam
tape will create a tight seal between the bracket and the wall.
1
2
3
4
Mounting Bracket Installation
Select your desired bracket mounting location (see diagram below). This location determines the depth of the installation.
For example, position #1 keeps most of the unit out of the cellar while position #2 makes the back of the unit near ush on the
exterior wall. Slide the bracket onto the unit, paying special attention to the anges for mounting to the unit. Make sure they are
pointing towards the back. Use the six ½" pan-head screws to fasten the bracket to the unit. Under no circumstances should you
use screws longer than
½
” in length.
#1 2000/3000/4000
5–6 inches In Cellar
#2 2000/3000/4000
9–10 inches In Cellar
#
1
#
2
5” inch thick wall
(wall thickness may vary)
Mounting Bracket
Wine Cellar Exhaust Area
