CIRCUIT DESCRIPTION
The Model 4100 Stereo Equalizer incorporates RLC elements for response control in an
audio system. It contains one octave filter sections, continuously adjustable from +10 dB
of emphasis to -10 dB of cut, in each one octave band.

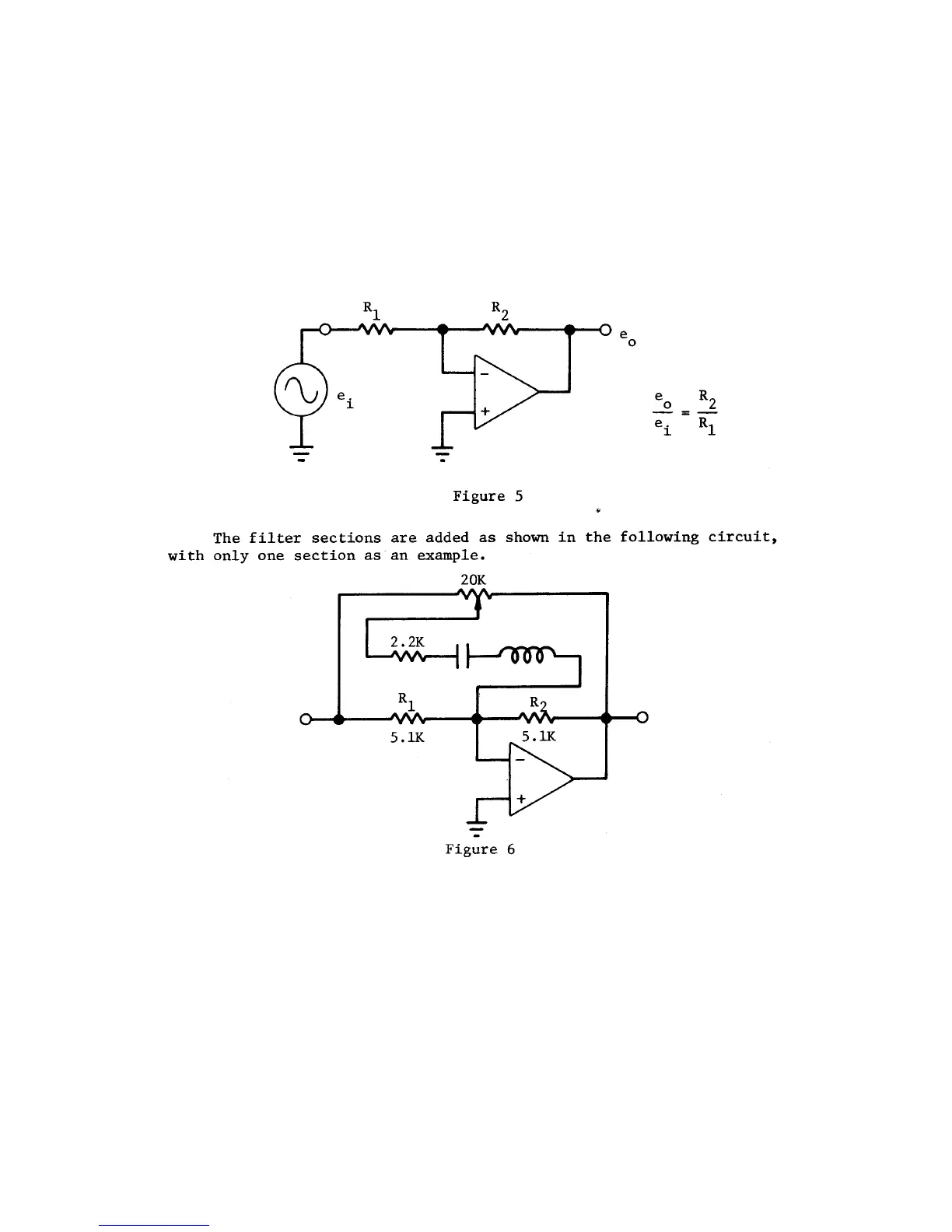

Integrated circuit operational amplifiers are used in a NEGATIVE feedback circuit with
very low distortion. The basic circuit follows:
