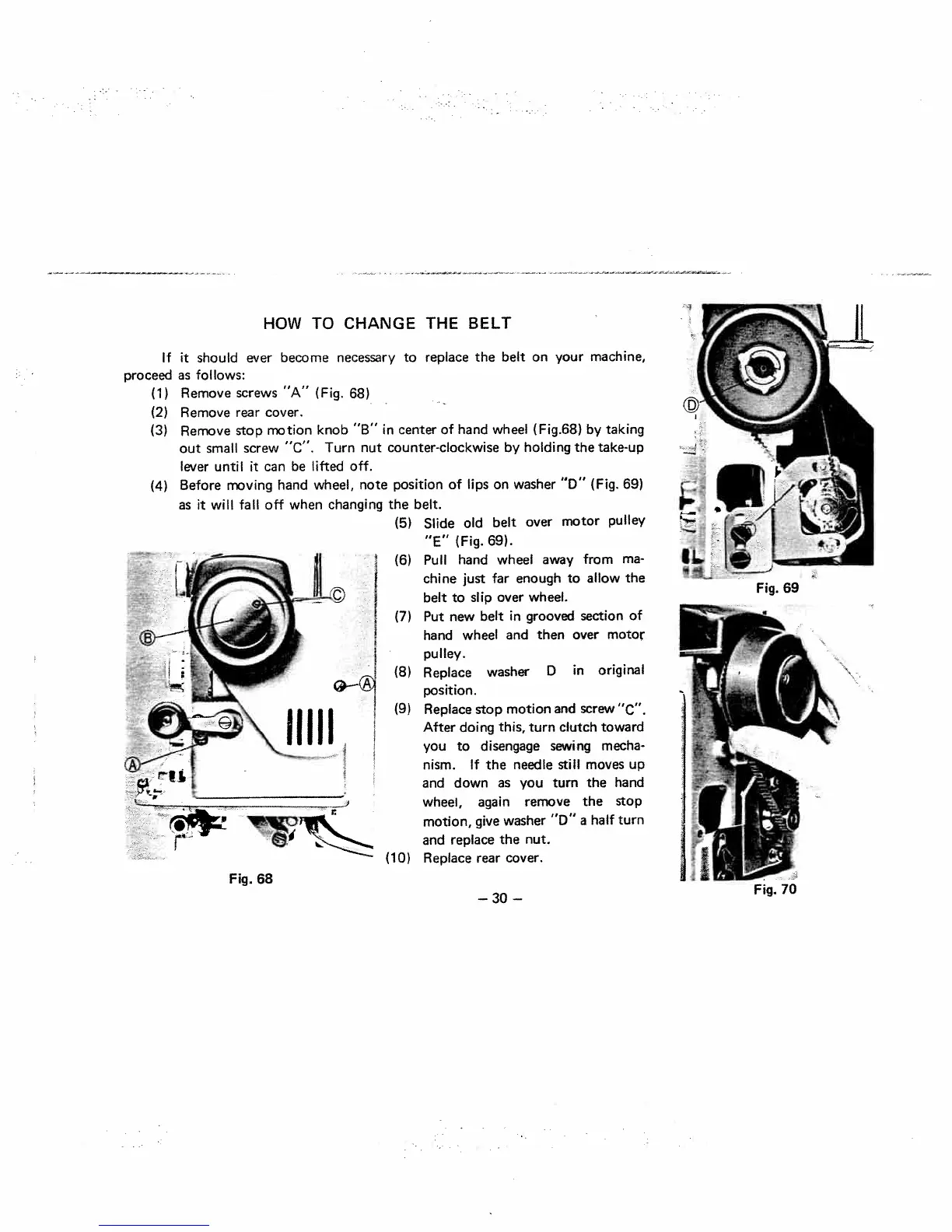

White 951 - HOW TO CHANGE THE BELT

HOW TO CHANGE THE
BELT
If it should ever
become necessary to
proceed as
follows:
(1)
Remove
screws “A” (Fig.
68)
(2)
Remove
rear cover. -
(3)
Remove
stop
motion
knob “B” in
center of hand wheel
(Fig.68)
by
taking
out
small screw “C”.
Turn nut
counter-clockwise by
holding the take-up
lever until it can be
lifted off.
(4)
Before moving
hand wheel, note
position of lips on
washer
“D”
(Fig. 69)
as it
will fall off when
changing the belt.
(5)
Slide
old
belt
over
motor
pulley
“E”
(Fig. 69).
(6)
Pull
hand wheel away from
ma
chine just
far enough to
allow the
belt
to
slip
over wheel.
(7)
Put
new
belt in grooved
section of
hand
wheel and
then
over
motor
pulley.
(8) Replace
washer
0
in original
position.
(9) Replace stop
motion
and screw
“C”.
After doing
this,
turn
clutch toward
you to disengage
sewing
mecha
nism. If the needle
still moves up
and
down as you turn the
hand
wheel, again
remove
the stop
motion,
give
washer “0” a
half
turn
and replace
the
nut.
(10)
Replace
rear cover.
— 30 —
replace the belt
on your
machine,
Fig. 68
