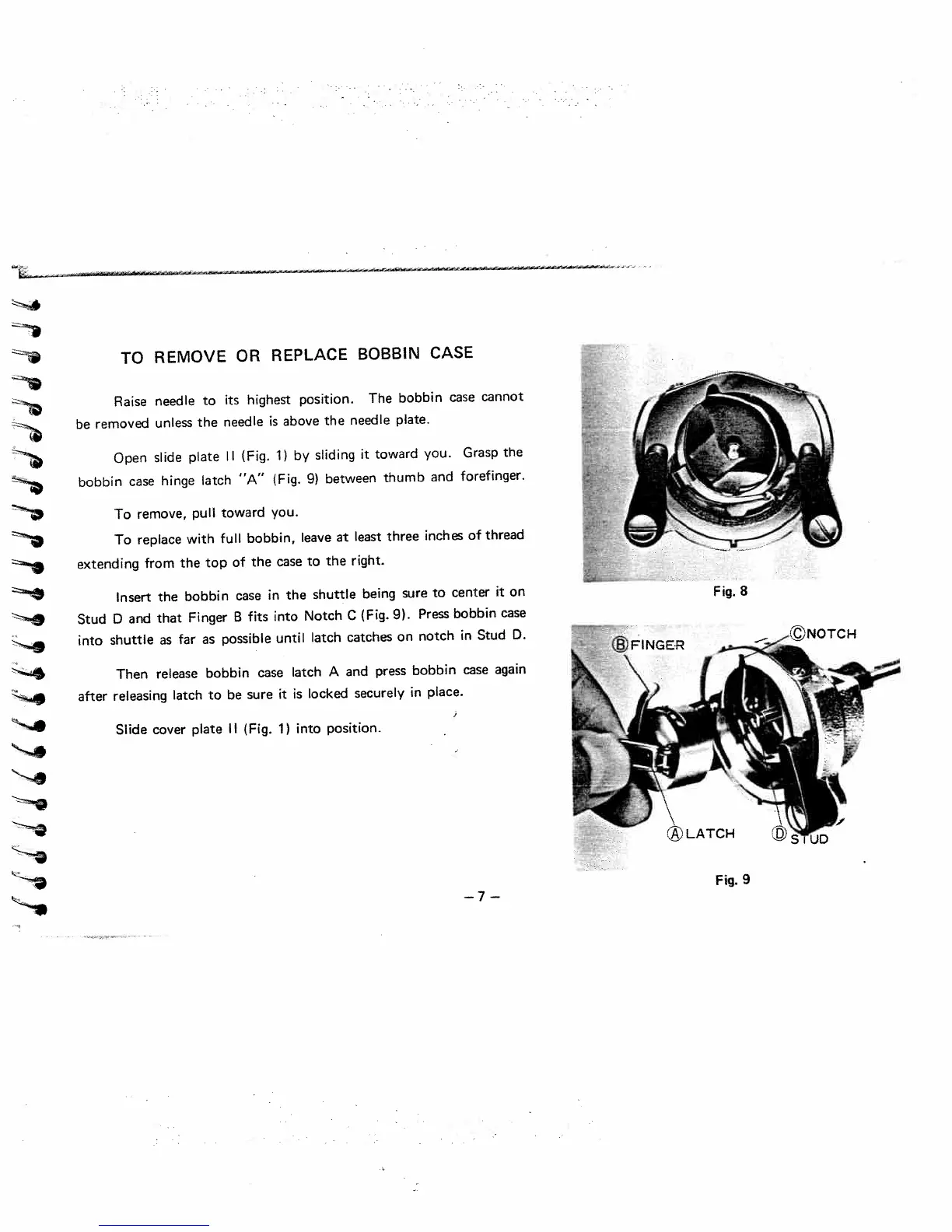

White 951 - TO REMOVE OR REPLACE BOBBIN CASE

TO
REMOVE
OR
REPLACE
BOBBIN
CASE
Raise
needle
to
its
highest
position.
The
bobbin
case
cannot
be
removed
unless
the
needle
is
above
the
needle
plate.
Open
slide
plate
II
(Fig.
1)
by
sliding
it
toward
you.
Grasp
the
bobbin
case
hinge
latch
‘A”
(Fig.
9)
between
thumb
and
forefinger.
To
remove,
pull
toward
you.
To replace
with
full bobbin,
leave
at
least
three
inches
of
thread
extending
from
the
top
of
the
case
to
the
right.
Insert
the
bobbin
case
in the
shuttle
being
sure
to
center
it
on
Stud
D
and
that
Finger
B
fits
into
Notch
C
(Fig.
9).
Press
bobbin
case
into
shuttle
as
far
as possible
until
latch
catches
on
notch
in
Stud
D.
Then
release
bobbin
case
latch
A
and
press
bobbin
case
again
after
releasing
latch
to be
sure
it is
locked
securely
in
place.
Slide
cover
plate
II
(Fig.
1)
into
position.
Fig.
8
FINGER
©NOTCH
I’—
®
LATCH
—7—
Fiq.9
