2010 Edition 1 Page 12
WHYTE Service Manual
3.5: WHYTE ADJUSTABLE DROPOUT SYSTEM
IMPORTANT SAFETY NOTE:
If at any stage you are uncertain about safety or the safe adjustment of the Whyte
19 Dropout System as a whole, or any specific component, please do not ride your
bike, and consult your Whyte Dealer for advice.
Point Description. Quantity.
1 Whyte 19 RH Dropout (Main Frame) -
2 Whyte 19 LH Dropout (Main Frame) -
3 RH Dropout (Mech Hanger Type) 1
4 M6 Washer 2
5a M6 x 14mm Socket Head Cap Screw (Top, Dropout Pivot)
8
5b M6 x 14mm Socket Head Cap Screw (Bottom, Dropout Clamping)
6 LH Dropout/Disc Mount 1
7 RH Dropout (Single Speed Type) 1
8 Dropout M6 Washer Plate 2

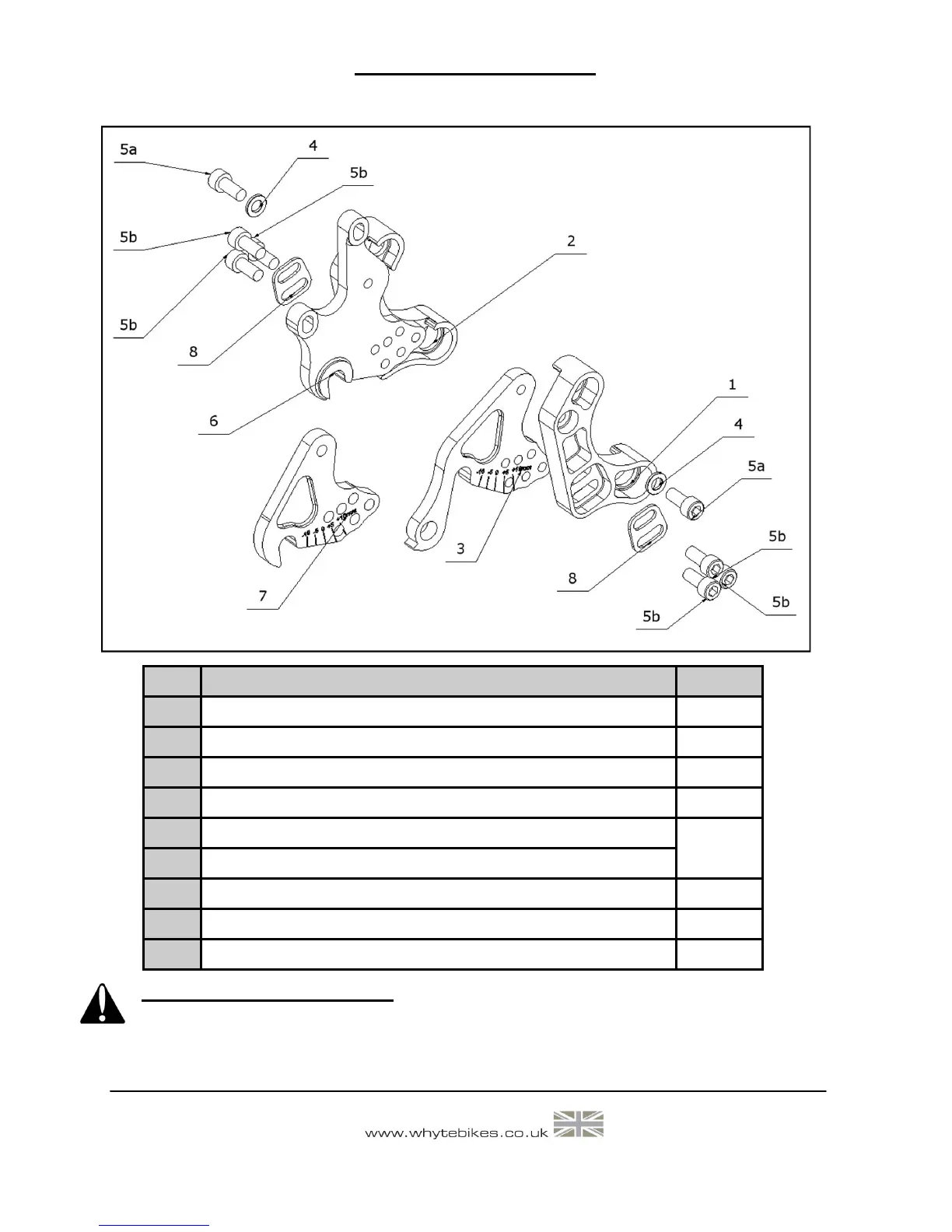

Fig.4: Adjustable Dropout System
