2010 Edition 1 Page 5
WHYTE Service Manual
2.0: GEOMETRY
Frame Size
Small Medium Large
Head Angle 68.5° 68.5° 68.5°
Seat Angle 74.0° 73.5° 73.5°
Top Tube 560.0mm 584.6mm 603.6mm
BB Height* 300.0mm 300.0mm 300.0mm
Stand Over 750mm 755mm 775mm
Wheel Base 1073.6mm 1093.6mm 1113.6mm
Chain Stay 425mm 425mm 425mm
Seat Post 30.9mm 30.9mm 30.9mm
X
A
B
C
D
E
F
G
H
2.1: WHYTE 20C, 20C S & 20C Team
Note:
Geometry shown here is ’Showroom’ i.e. without rider aboard the bicycle. ’With Sag’ geometry is with rider after correct
sag is set at the front. Please refer to suspension set up for information on how to achieve the correct sag of the fork.
* BB height with Ø660mm tyres fitted (1.9” / 47-559)

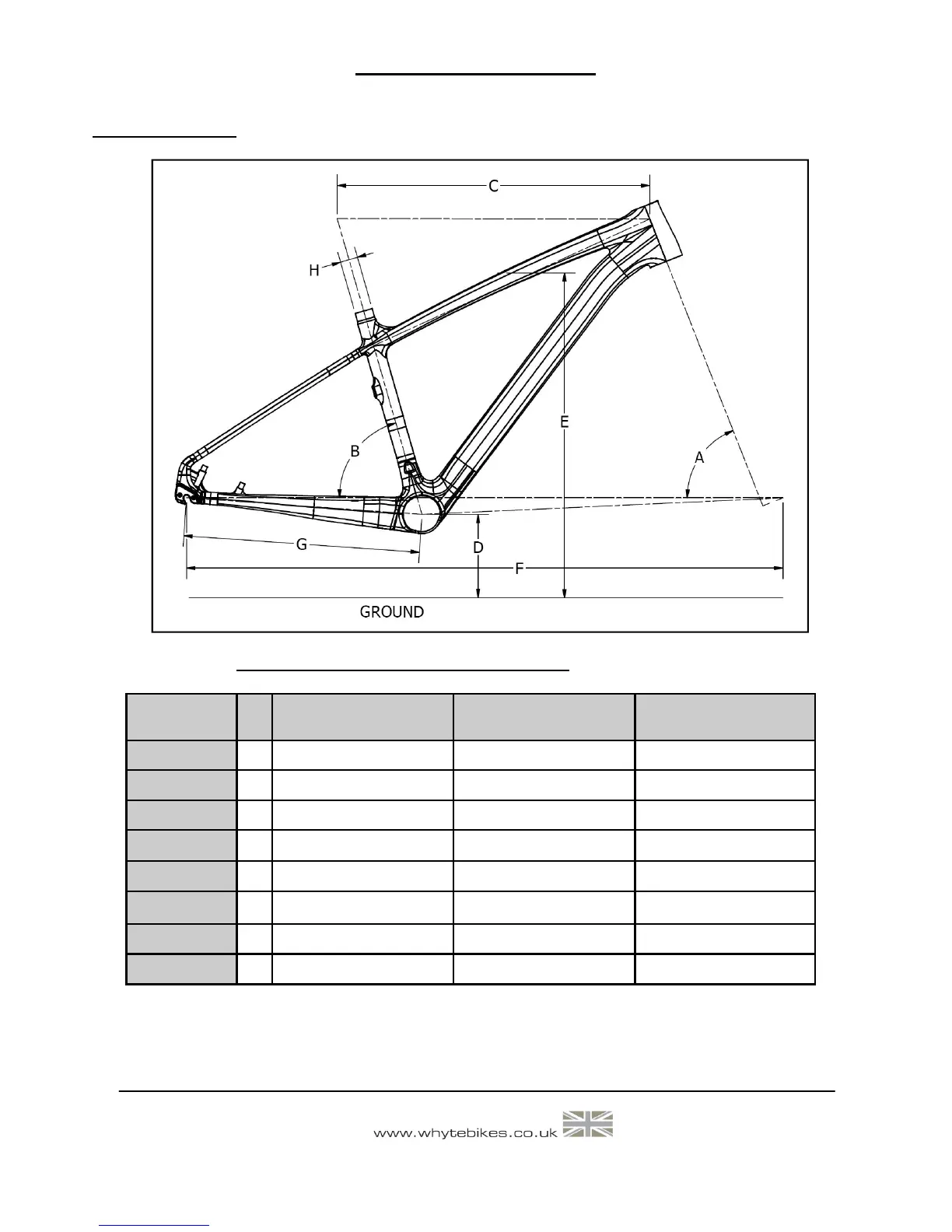

Fig.1:
Geometry
