WHYTE Mudguard Assembly Instructions
Reference figures

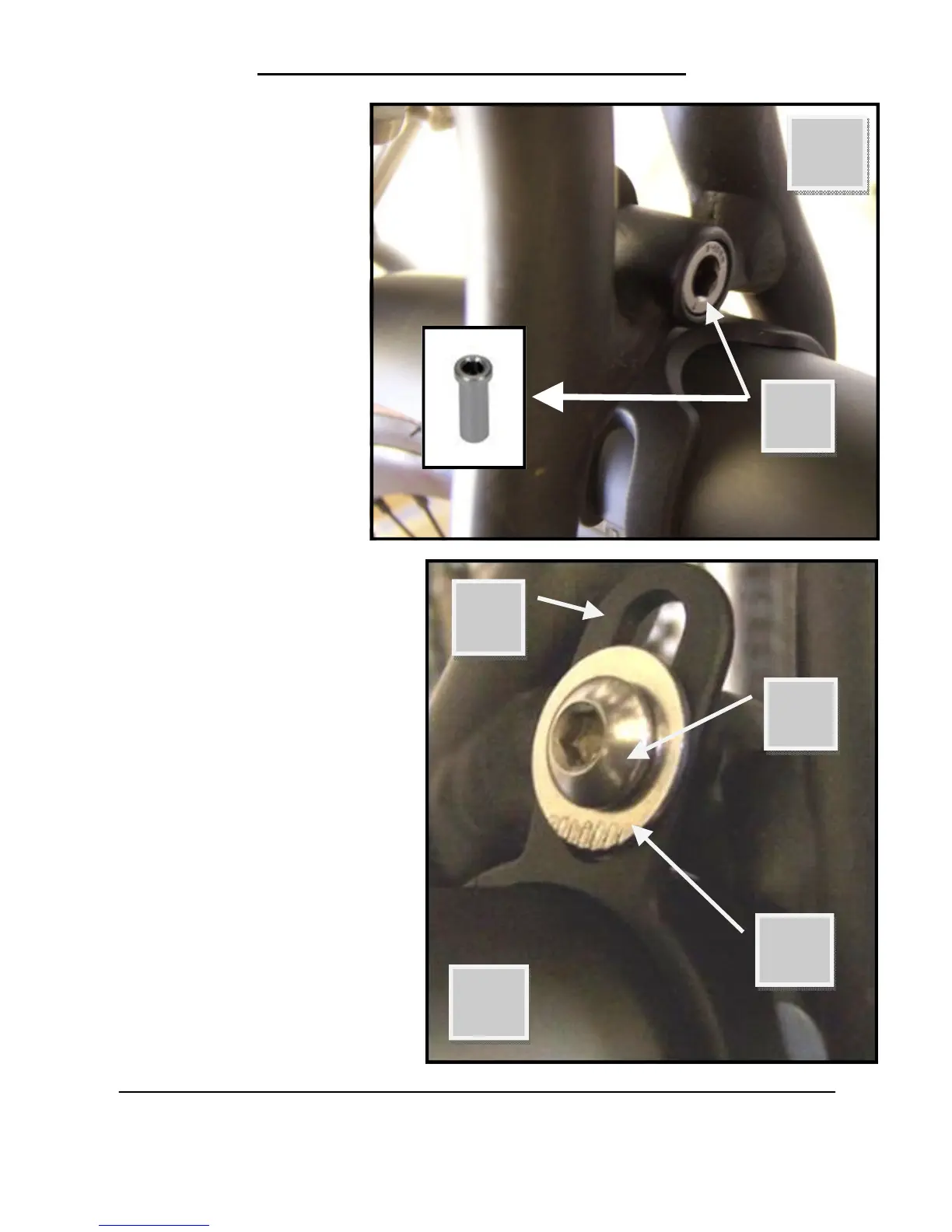

K & L. For a frame
with a step in the
seat-stay bridge
hole (see Terminol-
ogy). Using an M6
x 12 long button
head cap-screw
(12), a large
washer with a Ø6
hole (17) and an
M6 x 10 long cycle
brake nut (18),
attach the bridge
bracket (15) to
the rear of the
seat-stay bridge
(see Terminology).
K
L
12
17
15
18
