WHYTE Mudguard Assembly Instructions

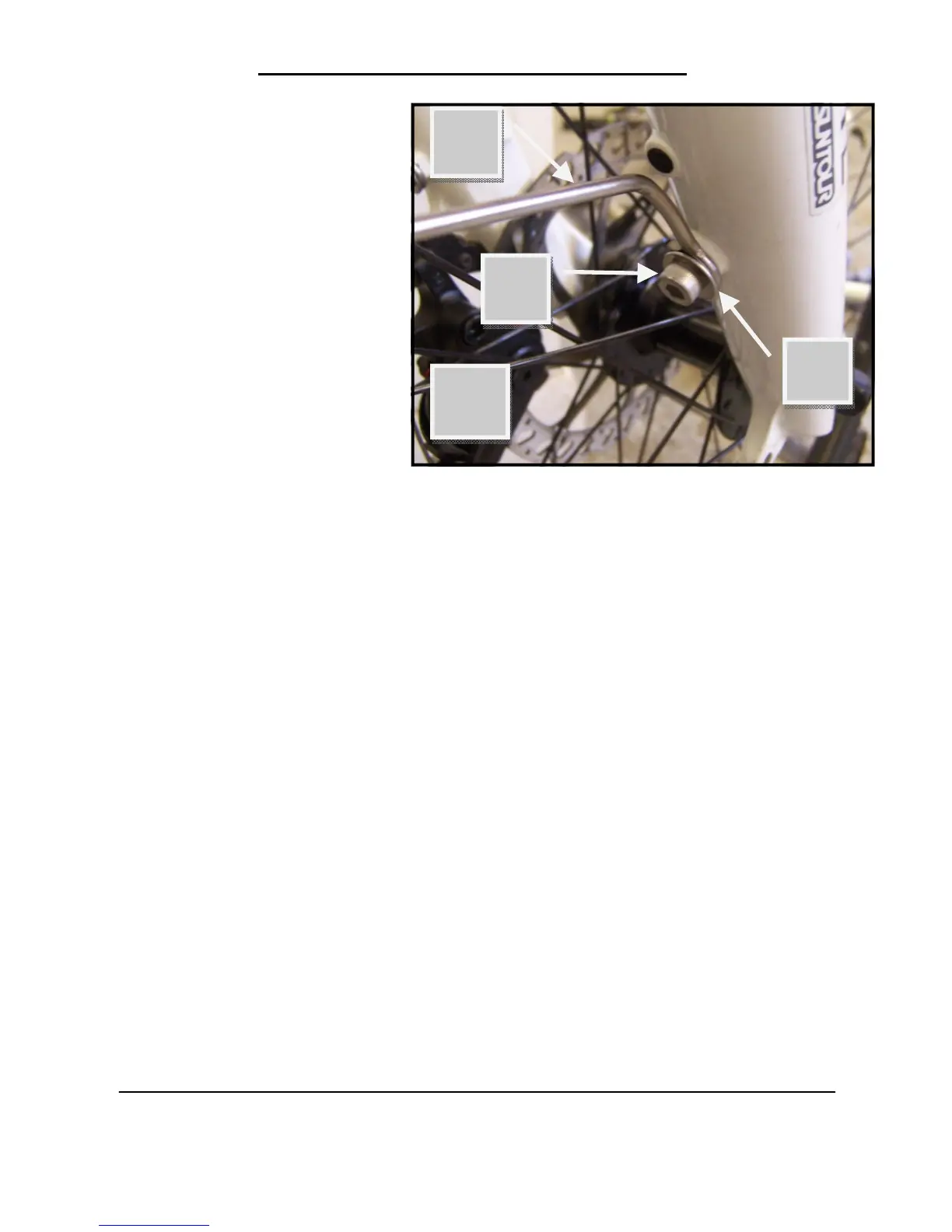

◊ Reference figure G.
Using an M5 x 12
long cap-screw (6)
and washer with a
Ø5 hole (7), attach
the looped end of
the side-stays (4)
to the threaded
holes in each of the
front fork legs.
• Refit the front wheel
(refer to page 15 of
the Whyte General
Instruction Manual on
how to do this).
• Carefully adjust all the fixing points until the mudguard sits evenly and
c
entrally around the front tyre, with a minimum clearance of 6mm.
Also check there is enough clearance from the mudguard to your foot
when in the pedal rotated fully forwards. Then tighten the fasteners
according to the torque values shown in the table on page 15.
Assembling the Rear Mudguard:
• Slide the bridge bracket (15) onto & around the outside of the rear
mudguard (14) with the tab towards the rear of the frame. Position
the bridge bracket (15) approximately 350mm above the forward
mudguard end (see Figure A on page 6). Check that it is a tight fit
on the mudguard (14).
• Reference figure A on page 6. Using a 3mm A/F Allen Key, undo the
M4 screw (1) in one stay bracket (2) by no more than one rotation.
Clip the stay bracket (2) onto the side of the bare rear mudguard
(14). Position the four stay brackets (2) approximately as shown in
image A, ie: the two lower stays approximately 100mm above the
mudguard end and the two upper stays approximately equal distances
between the mudguard end and the location of the bridge bracket
(15). Insert a side-stay (4) through the threaded sleeve (5) and also
G
4
6
7
