Whyte Mudguard - Assembling the Front Mudguard

WHYTE Mudguard Assembly Instructions
Assembling the Front Mudguard:

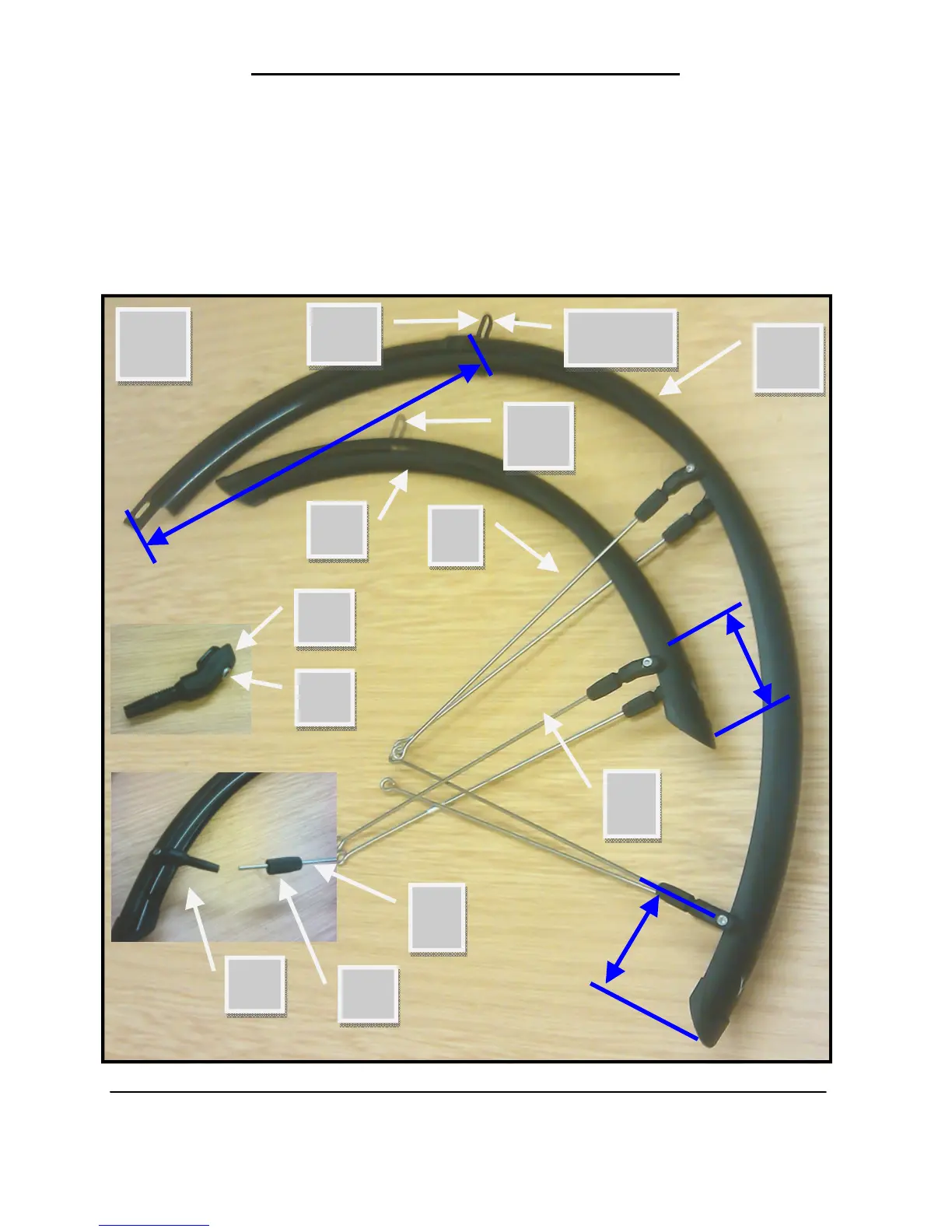

• Reference figure A. Using a 3mm A/F Allen Key, undo the M4 screw
(1) in one stay bracket (2) by no more than one rotation. Clip the
stay bracket (2) onto the side of the front mudguard (3). Position
the stay bracket (2) approximately 100mm above the mudguard end.
Re-tighten the stay bracket screw according to the torque value
shown in the table on page 15.
