Whyte Mudguard - Rigid Fork Attachment

WHYTE Mudguard Assembly Instructions
• Insert a single side-stay (4)
through the threaded sleeve
(5) and also into the end of the
stay bracket (2). Screw the
sleeve (5) into the end of the
stay bracket (2) and lightly
tighten. Repeat this process
for the other items (1, 2, 4 &
5) on the other side of the
mudguard (3). Do not firmly
tighten the sleeves (5) just yet,
as the side-stays (4) may need
to be adjusted later.
• Remove the front wheel from
the bicycle (refer to page 15 of
the Whyte General Instruction Manual on
how to do this).
• For Rigid Forks

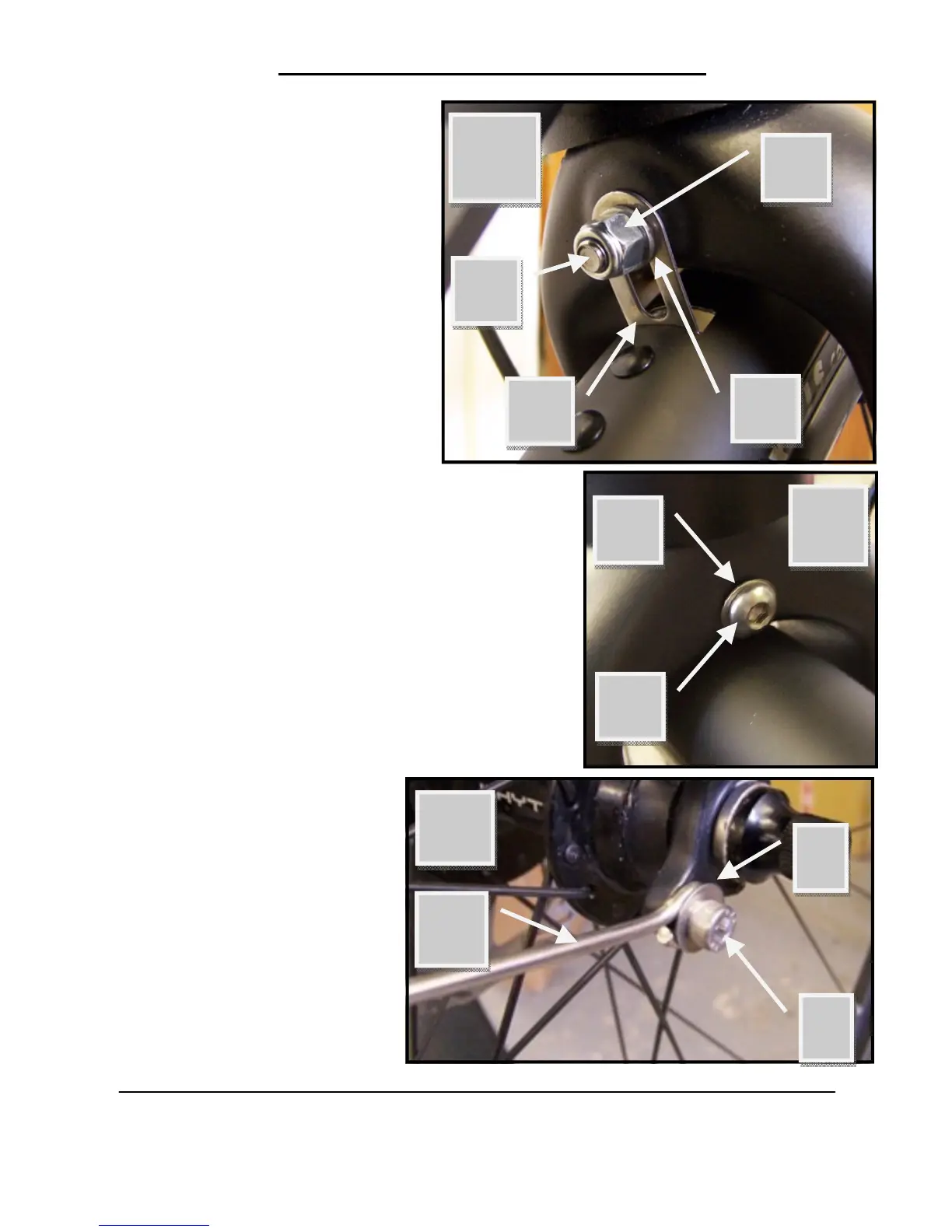

◊ Reference figures B & C. Depending on
the thickness of the front fork crown
(see Terminology), use either an M6 x
65 capscrew or an M6 x 60 long or 50
long button head cap-screw (8), plus
two small washers with Ø6 holes (9) and
an M6 Nylock hex nut (10) to attach the
bridge bracket (11) to the rear of the
crown of the front
fork.
◊ Reference figure D.
Using an M5 x 12
long cap-screw (6)
and a washer with a
Ø5 hole (7), attach
the looped end of the
side-stay (4) to the
threaded hole in each
of the front fork legs.
B
8
9
11
10
9
8
C
4
6
D
7
