Whyte Mudguard - Chain-Stay Bridge Attachment

WHYTE Mudguard Assembly Instructions

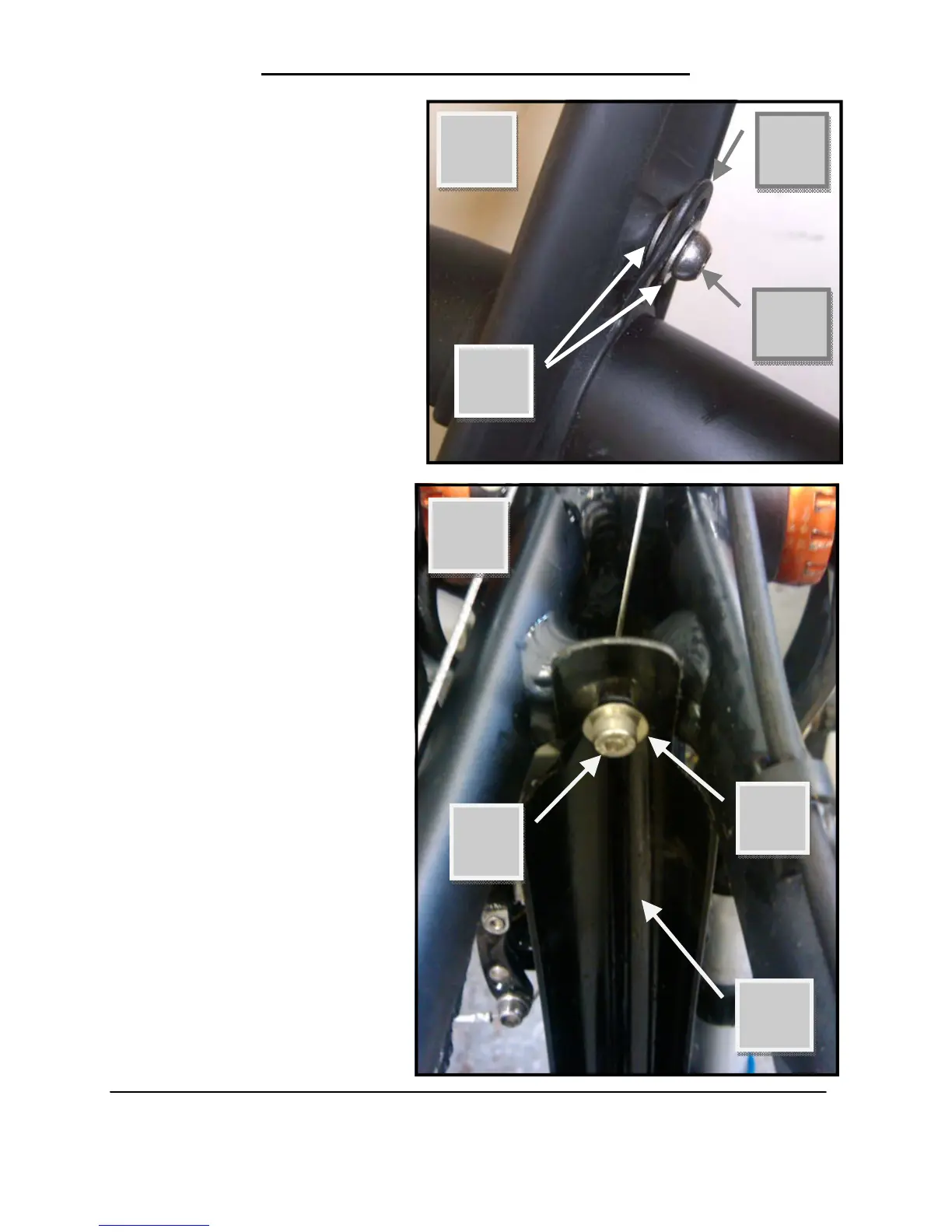

• Reference Figure M. For a
frame with an M5 rivet nut
in the rear of the seat-stay
bridge (eg: Cornwall). Slide
the bridge bracket (15) on-
to & around the outside of
the rear mudguard (14)
with the tab towards the
front of the frame. Using
an M5 x 16 long button
head cap-screw (21) and
two washers with a Ø5 hole
(7), attach the bridge
bracket (15) to the rear of
the seat-stay bridge (see
T
erminology). One washer
(7) should be placed either
side of the bridge bracket
(15).
• Reference figure N. For a
frame with a threaded
chain-stay bridge boss
(see Terminology). Using
an M5 x 12 long cap-
screw (6) and a washer
with a Ø5 hole (7), attach
the front end of the mud-
guard (14) to the thread-
ed hole in rear of the
chain-stay bridge (see
Terminology).
M
7
14
6
N
7
21
15
