WHYTE Mudguard Assembly Instructions

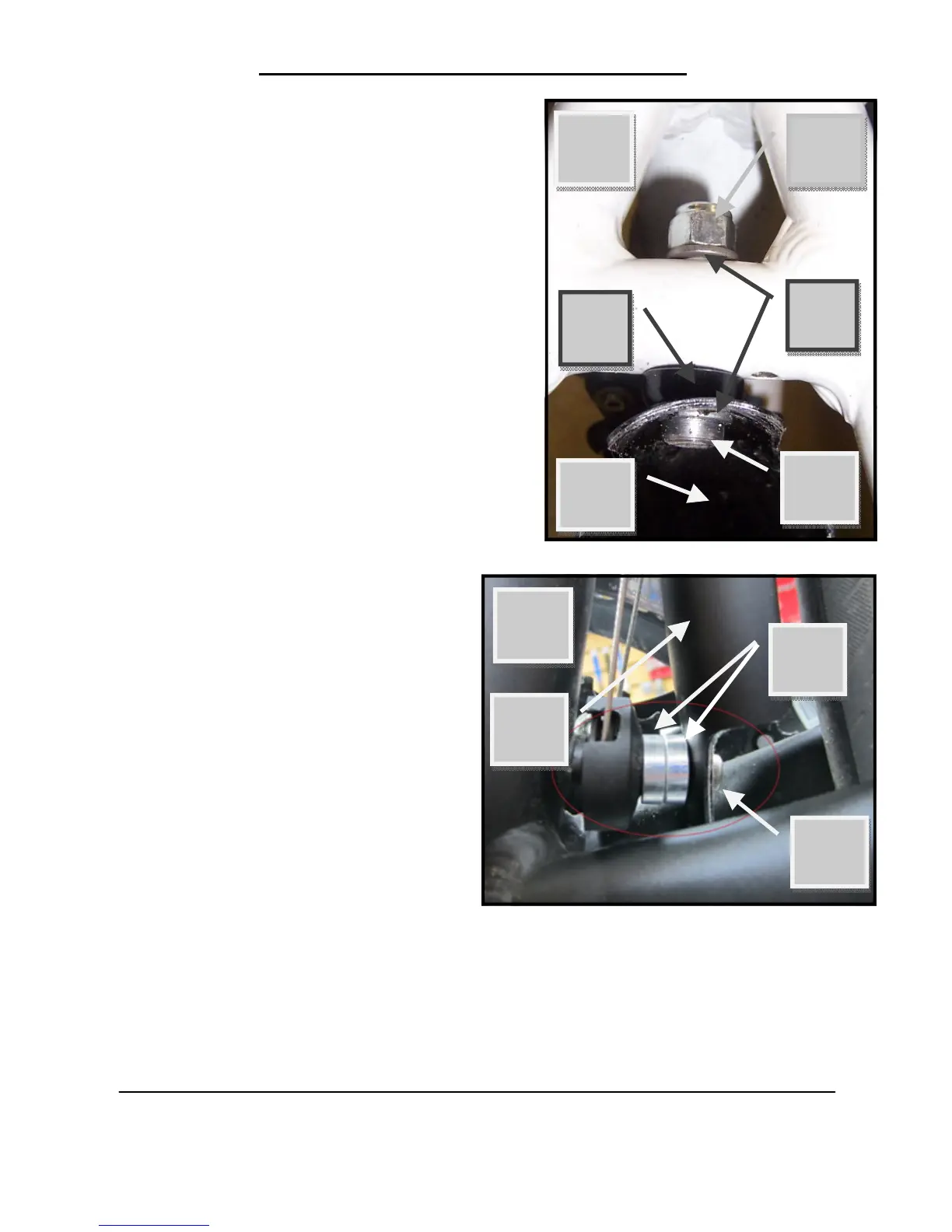

• Reference figure P. For a frame with
a non-threaded chain-stay bridge
boss (see Terminology). Using an M6
x 35 long button head cap-screw
(19), two small washers with Ø6
holes (9), a 5mm thick spacer (23)
and an M6 nylock hex nut (10), at-
tach the front end of the mudguard
(14) to the open hole in the chain-
stay bridge (see Terminology). Use
the spacer between the bridge and
the mudguard to provide clearance
between the mudguard and the
front derailleur (see Terminology).
• Reference figure Q. For a
frame without a chain-stay
bridge, but which has a roller
for the front derailleur cable
(eg: 2013 Kings Cross or 2013
Charing Cross). Using an M5 x
35 long button head cap-
screw (24), a washer with a
Ø5 hole (7) & two 5mm thick
spacers (23), attach the front
end of the mudguard (14) to
the seat tube through the roll-
er.
9
10
23
19
P
23
24
14
14
Q
