Whyte Mudguard - Rear Drop-out Attachment

WHYTE Mudguard Assembly Instructions

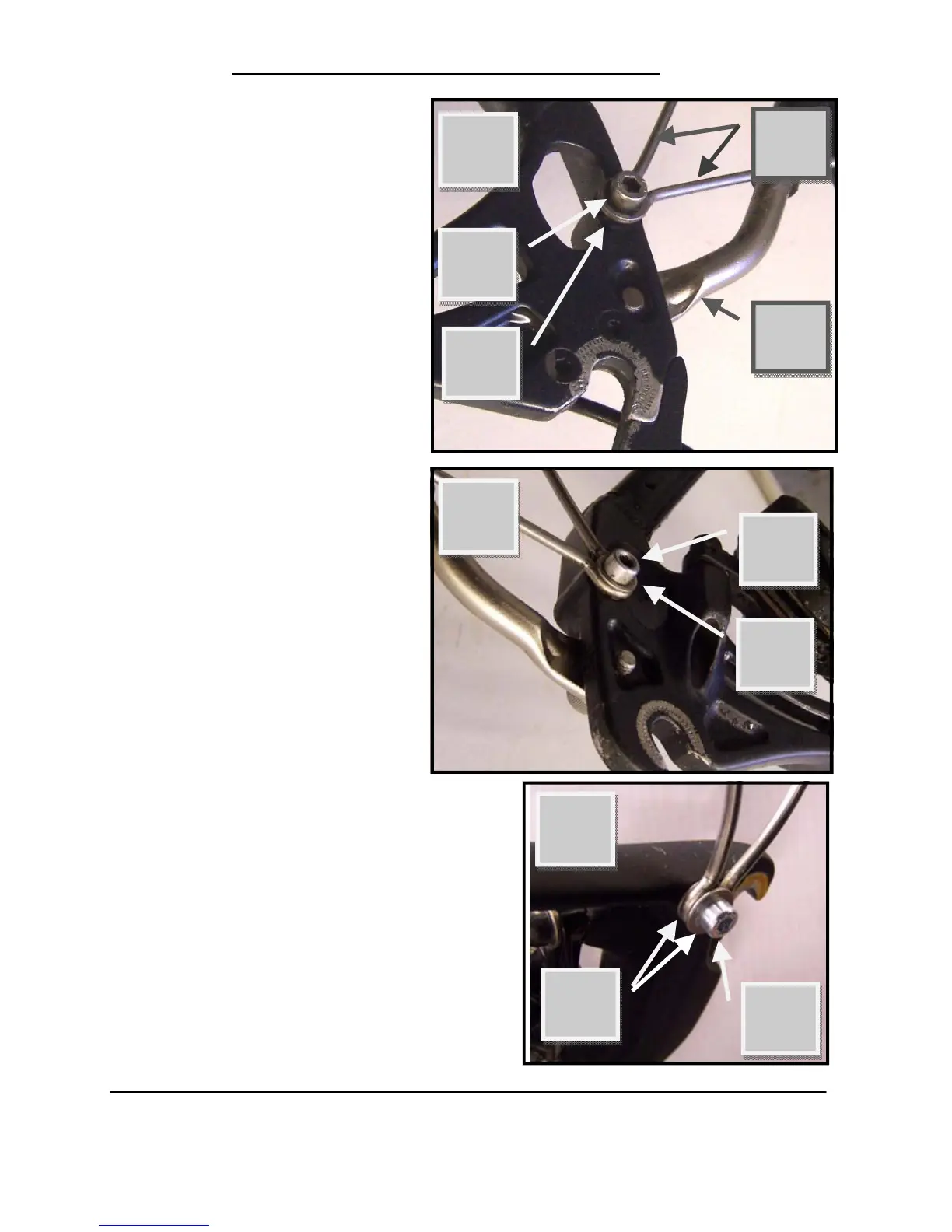

• Reference figures R & S
(showing the inside of each
rear drop-out. Q = right
side & R = left side). For
frames with two M5 thread-
ed holes in each drop-out,
the side-stays (4) should be
mounted on the INSIDE of
rear drop-outs alongside the
M5 threaded holes. This will
allow a rear luggage carrier
(20) to be fitted to the bicy-
cle alongside the M5 thread-
ed holes further down the
drop-out.
Using an M5 x 16 long but-
ton head cap-screw (21) and
washer with a Ø5 hole (7),
attach the looped end of the
side-stays (4) to the thread-
ed holes in each of the rear
drop-outs. Ensure that the
side-stays (4) are in the cor-
rect location on the mud-
guard (14) and then tighten
both M5 x 16 long button
head cap-screw (21) into
the drop-outs, BEFORE the rear
wheel is re-fitted.
Reference figure T. For frames with
one M5 threaded hole in each drop-
out, the side-stays (4) should be
mounted on the OUTSIDE of rear
drop-outs alongside the M5 threaded
holes. Also, for carbon fibre frames,
fit a washer with a Ø5 hole (7) to
both sides of each side-stay (4).
R
20
4
S
7
21
21
7
T
7
21
