Whyte Mudguard - Seat Tube Attachment

WHYTE Mudguard Assembly Instructions

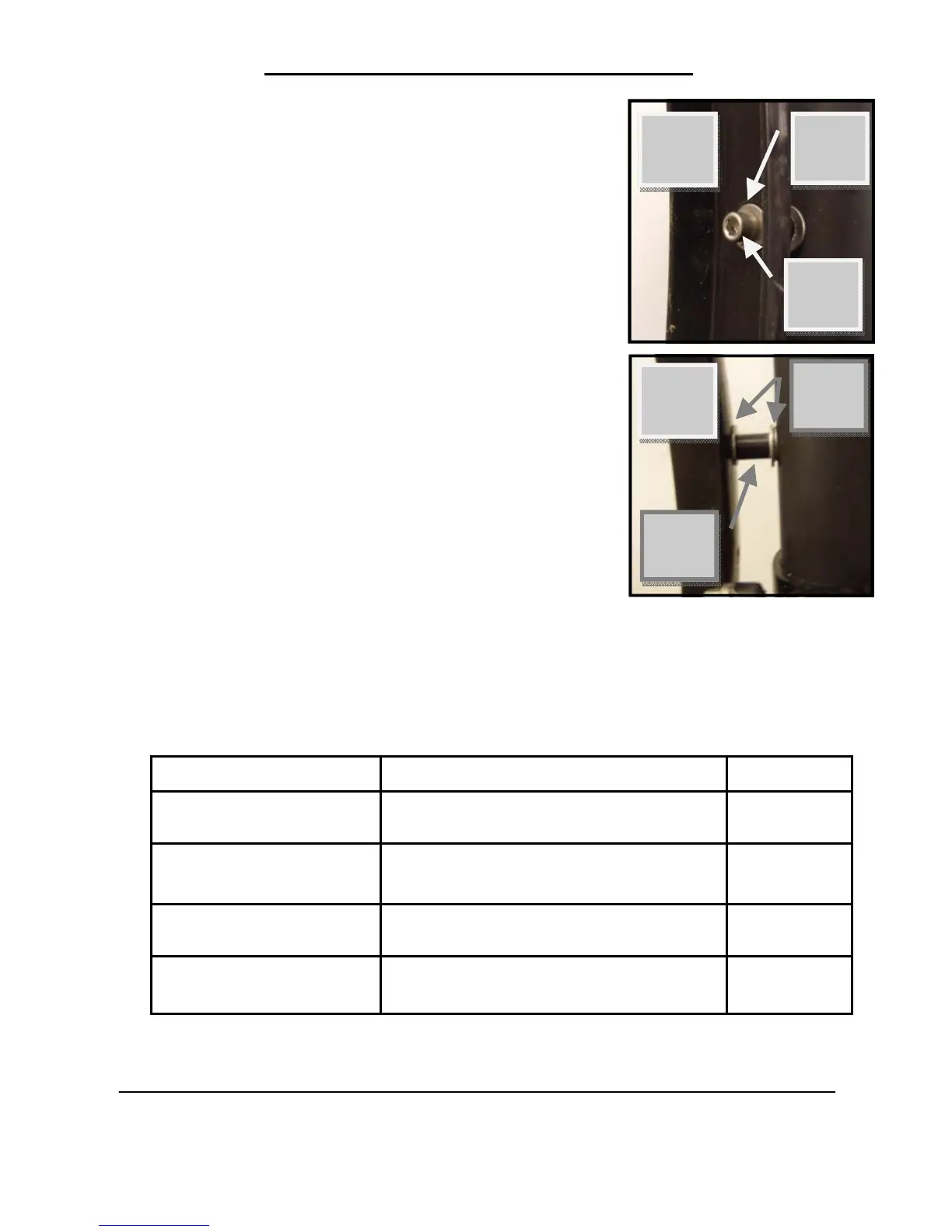

• Reference figures U & V. For a frame with
an M5 rivet nut in the rear of the seat tube
(eg: Cornwall). Using an M5 x 25 long but-
ton head cap-screw (26), three washers
with a Ø5 hole (7) & a 10mm long spacer
(25), attach the front end of the mudguard
(14) to the seat tube. One washer (7) is
placed onto the head of the cap-screw
(26), then passed through the upper slot
in the mudguard. Then another washer
(7), the spacer (25) and the third washer
is placed onto the cap-screw (26) from the
outside of the mudguard. Then thread the
cap-screw (26) into the seat-tube rivet.
Tighten the cap-screw (26) BEFORE the
rear wheel is re-fitted.
• Refit the rear wheel (refer to page 15 of
t
he Whyte General Instruction Manual on
how to do this).
• Carefully adjust the remaining loose fixing points until the mudguard
(14) sits evenly and centrally around the rear tyre, with a minimum
clearance of 6mm. Then tighten the loose fasteners according to the
torque values shown in the table below.
1 M4 x 10 long cap-screw 2.5 Nm
1.8 lbs.ft
6, 21, 22, 24 or 26 M5 x 12/16/20/25/35
long screws
5.0 Nm
3.7 lbs.ft
8 M6 x 65/60/50 long screws 10 Nm
7.4 lbs.ft
12, 16 or 19 M6 x 12/30/35 long screws 5.0 Nm
3.7 lbs.ft
Item Description Torque
25
U
7
V
26
7
