2. Design and function
5
14525888.01 04/2022 EN/DE/FR/ES
WIKA additional operating instructions for EMICOgauge
2. Design and function
2.1 Description
The EMICOgauge instrument hook-up, consisting of pressure gauge and instrumentation
valve, minimises the number of leakage points and thus reduces the risk of media escaping
into the environment.
The valve bonnets of the EMICOgauges are marked with an orange ring in addition to the
coloured dust cap.
Pressure gauge, model 232.30.100
EMICOgauge connection with 360° swivel connection
Instrumentation valve, model IVM, double-block-and-bleed, instrument version
Cone for metal-to-metal seat
O-ring sealing
Support ring
The 360° swivel adapter connection of the EMICOgauge enables quick alignment of the
pressure gauge with simultaneous pressure sealing. In addition, this makes it easy and
safe to disassemble the EMICOgauge into pressure gauge and valve. See chapter 7.2
“Separation at the EMICOgauge connection”.
2.2 Scope of delivery
Cross-check scope of delivery with delivery note.

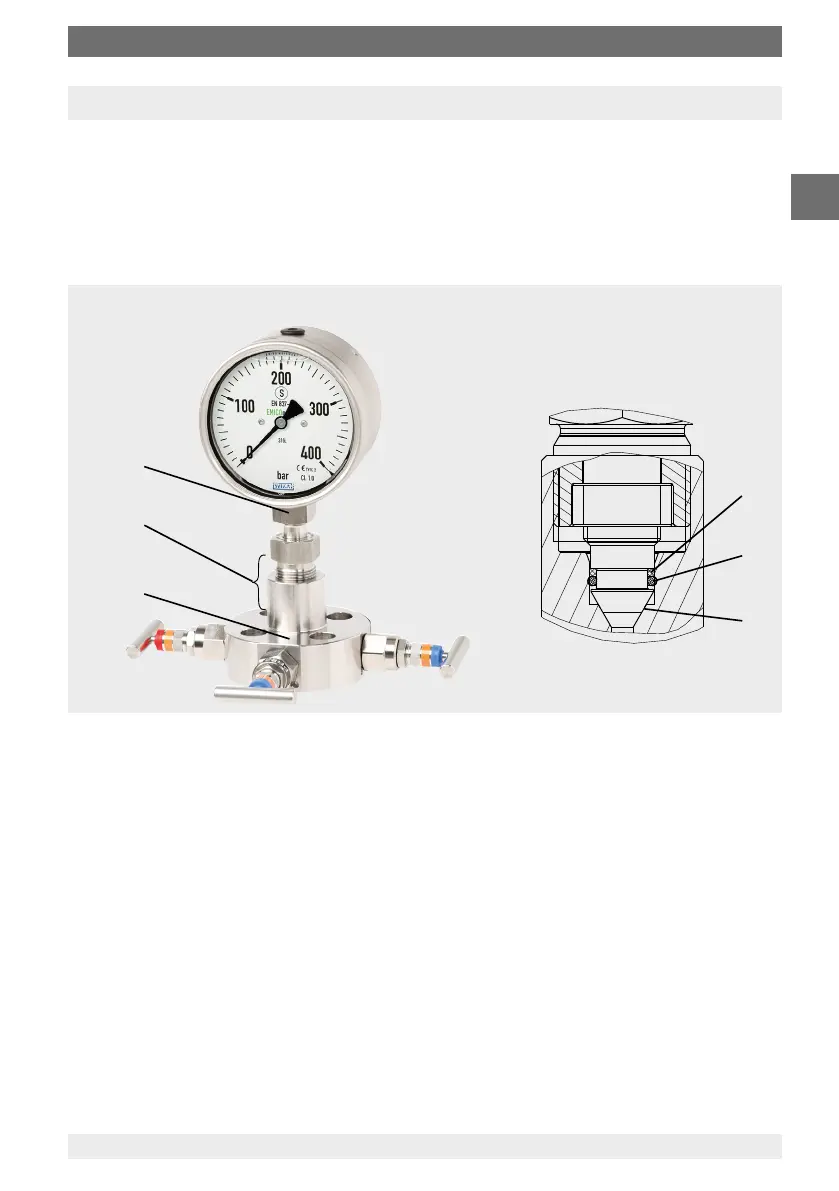

EMICOgauge example
Sectional illustration of
