WIKA air2guide A2G-50 User Manual

EN
40202780.03 07/2017 EN/DE
20 WIKA operating instructions model A2G-50
5. Commissioning, operation
Version 3
MB Pressure unit
Pa kPa mbar inchWC mmWC psi
1 0 ... 25 0 ... 0.025 0 ... 0.25 0 ... 0.10 0 ... 2.6 0 ... 0.0036
2 0 ... 50 0 ... 0.05 0 ... 0.50 0 ... 0.20 0 ... 5.1 0 ... 0.0073
3 0 ... 100 0 ... 0.10 0 ... 1.00 0 ... 0.40 0 ... 10.2 0 ... 0.0145
4 0 ... 250 0 ... 0.25 0 ... 2.50 0 ... 1.00 0 ... 25.5 0 ... 0.0363
5 -25 ... +25 -0.025 ... +0.025 -0.25 ... +0.25 -0.10 ... +0.10 -2.6 ... +2.6 -0.0036 ...
+0.0036
6 -50 ... +50 -0.05 ... +0.05 -0.50 ... +0.50 -0.20 ... +0.20 -5.1 ... +5.1 -0.0073 ...
+0.0073
7 -100 ... +100 -0.1 ... +0.1 -1.00 ... +1.00 -0.40 ... +0.40 -10.2 ... +10.2 -0.0145 ...
+0.0145
8 -250 ... +250 -0.25 ... +0.25 -2.50 ... +2.50 -1.00 ... +1.00 -25.50 ...
+25.50
-0.0363 ...
+0.0363
MB = measuring range

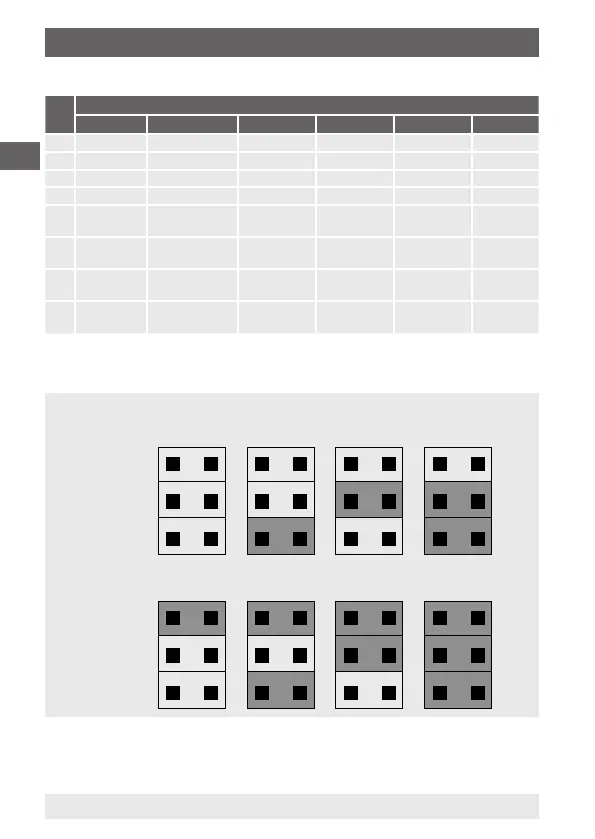

Jumper placement to set the measuring range
Range 1
Jumper J1
Jumper J2
Jumper J3
Range 3Range 2 Range 4
Range 5 Range 7Range 6 Range 8
Jumper J1
Jumper J2
Jumper J3
