WIKA air2guide A2G-50 User Manual

EN
WIKA operating instructions model A2G-50
40202780.03 07/2017 EN/DE
5
2. Design and function
2. Design and function

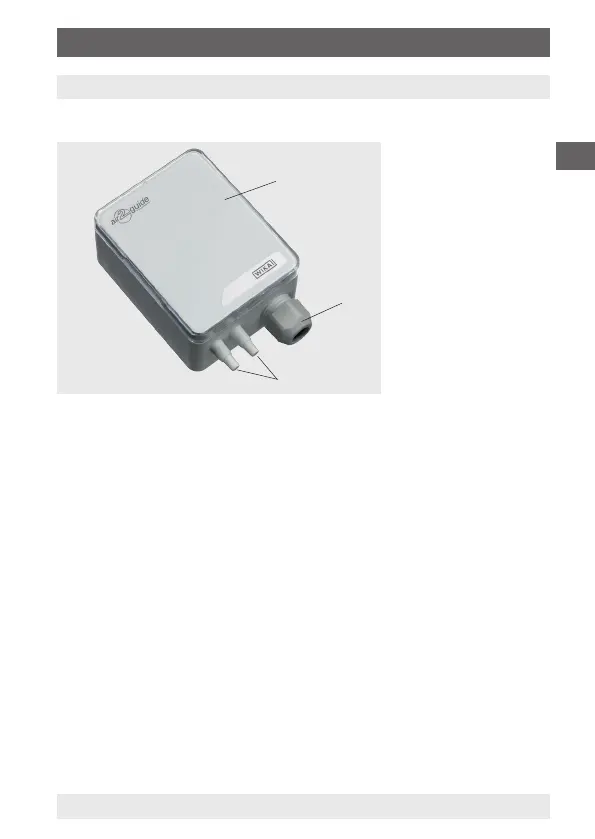

2.1 Overview

Case

Cable gland M16

Connecting nozzle (ABS), for hoses with inner diameter 4 or 6 mm
2.2 Description
The model A2G-50 dierential pressure transmitter is used for
measuring dierential pressures of gaseous media in ventilation and
air-conditioning applications. It is based on the piezoresistive measuring
principle.
Electrical analogue output signals for both measurands (0 ... 10 V or
4 ... 20 mA; adjustable in the instrument via jumpers) or the digital
Modbus
®
versions enable the direct connection to control systems or the
building automation system.



