17WIKA operating instructions, model CPG1500
EN
14161966.06 03/2024 EN/DE
4. Design and function
Function buttons
The CPG1500 is controlled via 4 function buttons, with each button having a main and
a secondary function. In general, the information printed on the buttons corresponds
to the main function: ZERO, LIGHT MENU, ON/OFF. Once the [MENU/◀▶] button is
active, the secondary function applies. These are, from left to right: Cursor up [UP/▲],
cursor down [DOWN/▼], left/right cursor [L/◀] or [R/▶] and [HOME].
If you are in the MENU function and if there is no further input within
30 seconds, HOME is automatically executed. This does not apply when
one is in the input mode for a number or a name.

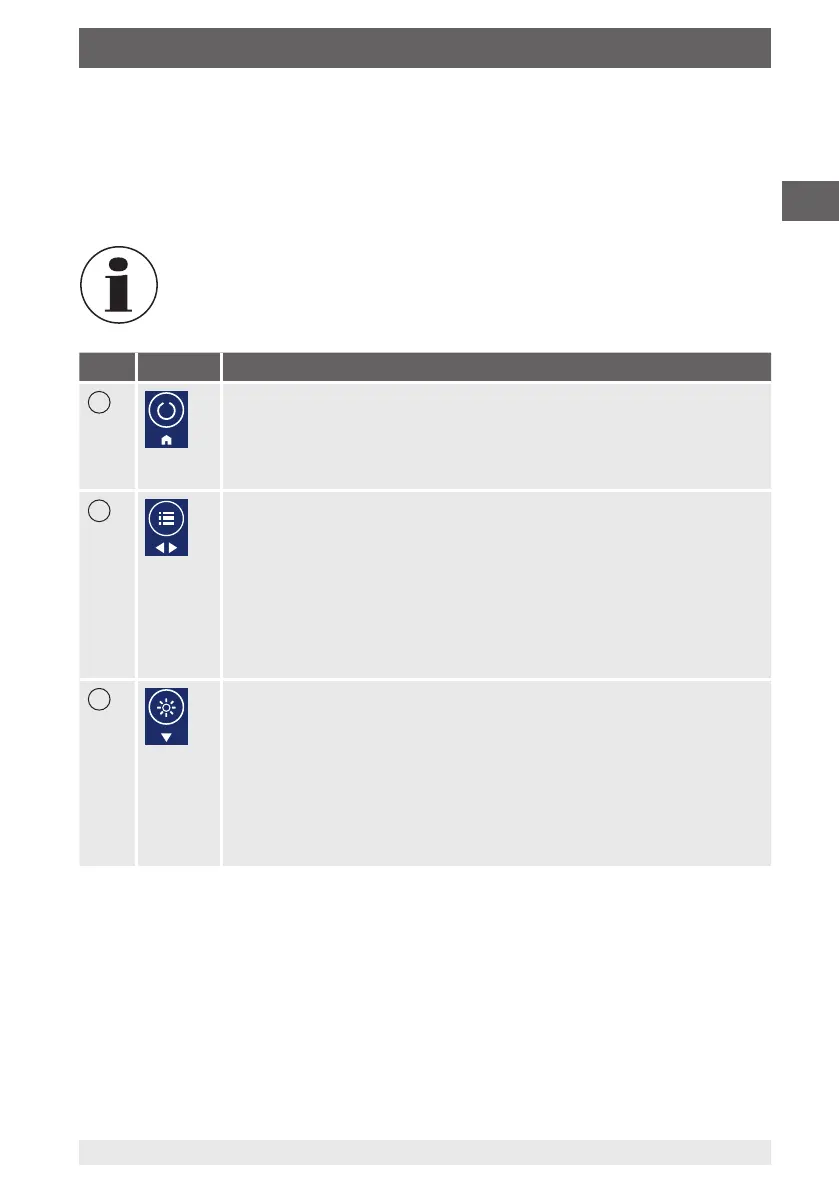

Pos. Button Meaning
6
On/Off or HOME button
The main function is switching the CPG1500 on and off.
If the digital pressure gauge is already in Menu mode, a short press on
the [On/Off] button brings up “HOME”. A long press (at least 3 seconds)
switches the CPG1500 off.
7
MENU button
Calling up the menu
By pressing the [MENU/◀▶] button, Menu mode will be selected. If the
CPG1500 is already in Menu mode, the operation of “◀” or “▶” will depend
on the display. If the button is pressed for longer, after 2 seconds the cursor
switches (right ◀ or ▶ left).
If the arrow points to the left (◀), you can jump back one menu level by
pressing the [MENU/◀▶] button again.
Inputs are confirmed with the [MENU/◀▶] button.
8
LIGHT button
Switching the backlighting on and off
By pressing the [LIGHT/▼] button (short press or long press), the light will
be switched on. The duration of the light is dependent on “LIGHT OFF” in
“Setting”.
■
1 x press of the [LIGHT/▼] button (Light = On)
■
Pressing [LIGHT/▼] button again (Light = Off)
If the CPG1500 is in Menu mode, the cursor can be moved downwards by
briefly pressing the [LIGHT/▼] button.
